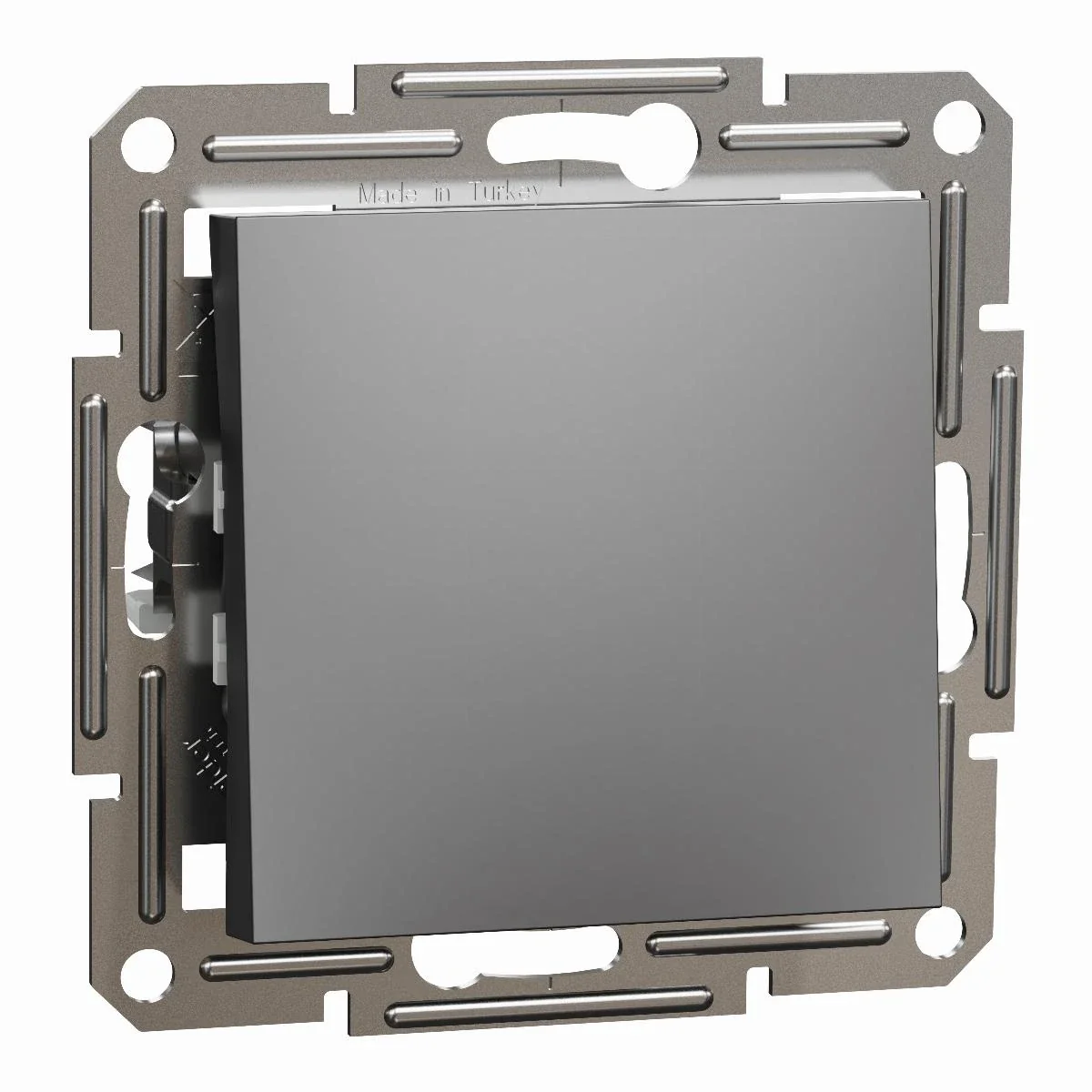

ASFORA Stair switch without frame, anthracite EPH0400171

local index:
MMS012SCHN
Catalog No:
EPH0400171
EAN code:
3606480729225
Manufacturer: SCHNEIDER ELECTRIC
Depth [mm]: 43
Number of keys: 1
Color: Graphite
Price:
5,18 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Stair switch from the Asfora series, from Schneider Electric. The product part number is EPH0400171.



FEATURES

  • Single.
  • Module without frame.
  • Threadless clamps.
  • Color anthracite.
  • < li>Rated current 10AX.
  • Rated voltage 230V.
  • Mounting flush.< /li>
  • Rating IP20.
  • Dimensions: 71 x 71 mm (H x W).
  • Made of ABS.
  • Length of cable stripping: 13mm.



FEATURES OF ASFORA CONNECTOR

  • Simple, quick assembly and disassembly of wires in the terminals.
  • Conical entries leading wires to the terminals.
  • Long solid claws. Metal guides keep the claws in the right position.
  • Galvanized, solid mounting frame with cuts for easy positioning.
  • Clear diagram and terminal marking for easy connection.



SERIES DESCRIPTION

The accessories of the Asfora series are characterized by quick, easy and safe installation. The mechanisms of the products have clear markings and connection diagrams, which greatly facilitates assembly and reduces the risk of incorrect connection.

The Asfora series of electrical installation accessories is used in residential buildings, public utility facilities , offices and hotels. If you value classic beauty, you like a clear, decisive shape with classic elegance and simple form, you focus on comfort and ease of installation, then the Asfora series of electrical installation accessories is for you!

Technical data

  • Depth [mm]
    43
  • Color
    Graphite
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    ASPHORA
  • Width [mm]
    71
  • Height [mm]
    71
  • Accurate color
    anthracite
  • Terminal type
    Threadless
  • Protrusion depth [mm]
    15
  • PKWIU
    27.33.11.0
  • Number of keys
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    stairs
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface finish
    Painted
  • Backlight
    NO
  • For the frame system
    Yes
  • Exact material
    ABS

Other technical data

  • Assembly arrangement
    Basic element with central cover plate
  • Method of operation
    Rocker
  • Feedback-signal contact
    No
  • With lighting
    No
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • Surface protection
    Lacquered
  • Transparent
    No
  • Imprint
    None
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    10.0 A
  • Device height
    71.0 mm
  • Min. depth of built-in installation box
    40.0 mm
  • Model
    Other
  • Number of poles
    1
  • Number of rockers
    1.0
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Colour
    Anthracite
  • Label space/information surface
    No
  • With signal lamp
    No
  • Nominal voltage
    250.0 V
  • Device width
    71 mm
  • Device depth
    43.0 mm
