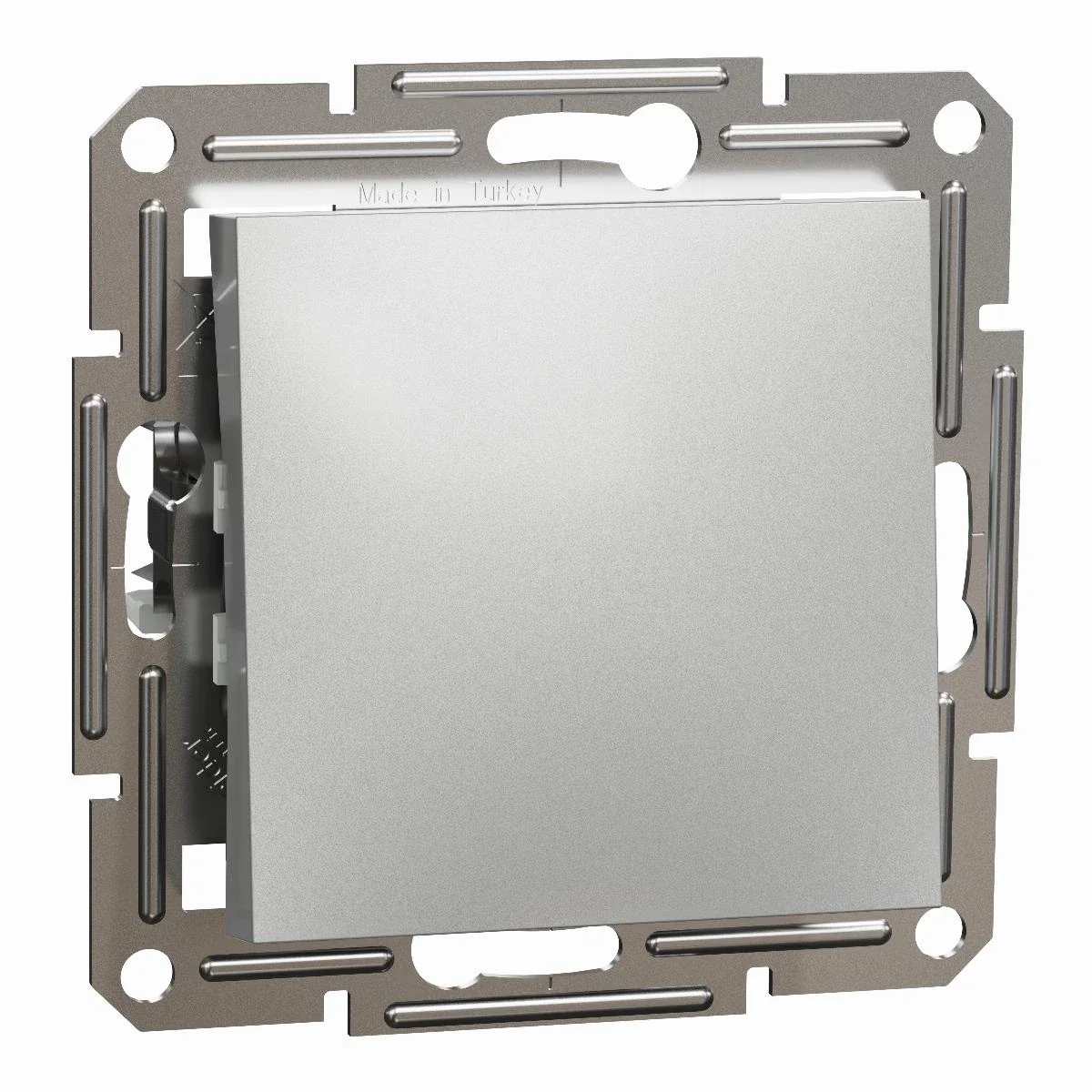

ASFORA Stair connector without aluminum frame EPH0400161

Stair switch from the Asfora series, from Schneider Electric. The product part number is EPH0400161.

FEATURES

• Single.
• Module without frame.
• Threadless clamps.
• Color aluminum.
< li>Rated current 10AX.
• Rated voltage 230V.
• Mounting flush.< /li>
• Rating IP20.
• Dimensions: 71 x 71 mm (H x W).
• Made of ABS.
• Length of cable stripping: 13mm.

FEATURES OF ASFORA CONNECTOR

• Simple, quick assembly and disassembly of wires in the terminals.
• Conical entries leading wires to the terminals.
• Long solid claws. Metal guides keep the claws in the right position.
• Galvanized, solid mounting frame with cuts for easy positioning.
• Clear diagram and terminal marking for easy connection.

SERIES DESCRIPTION

The accessories of the Asfora series are characterized by quick, easy and safe installation. The mechanisms of the products have clear markings and connection diagrams, which greatly facilitates assembly and reduces the risk of incorrect connection.

The Asfora series of electrical installation accessories is used in residential buildings, public utility facilities , offices and hotels. If you value classic beauty, you like a clear, decisive shape with classic elegance and simple form, you focus on comfort and ease of installation, then the Asfora series of electrical installation accessories is for you!
