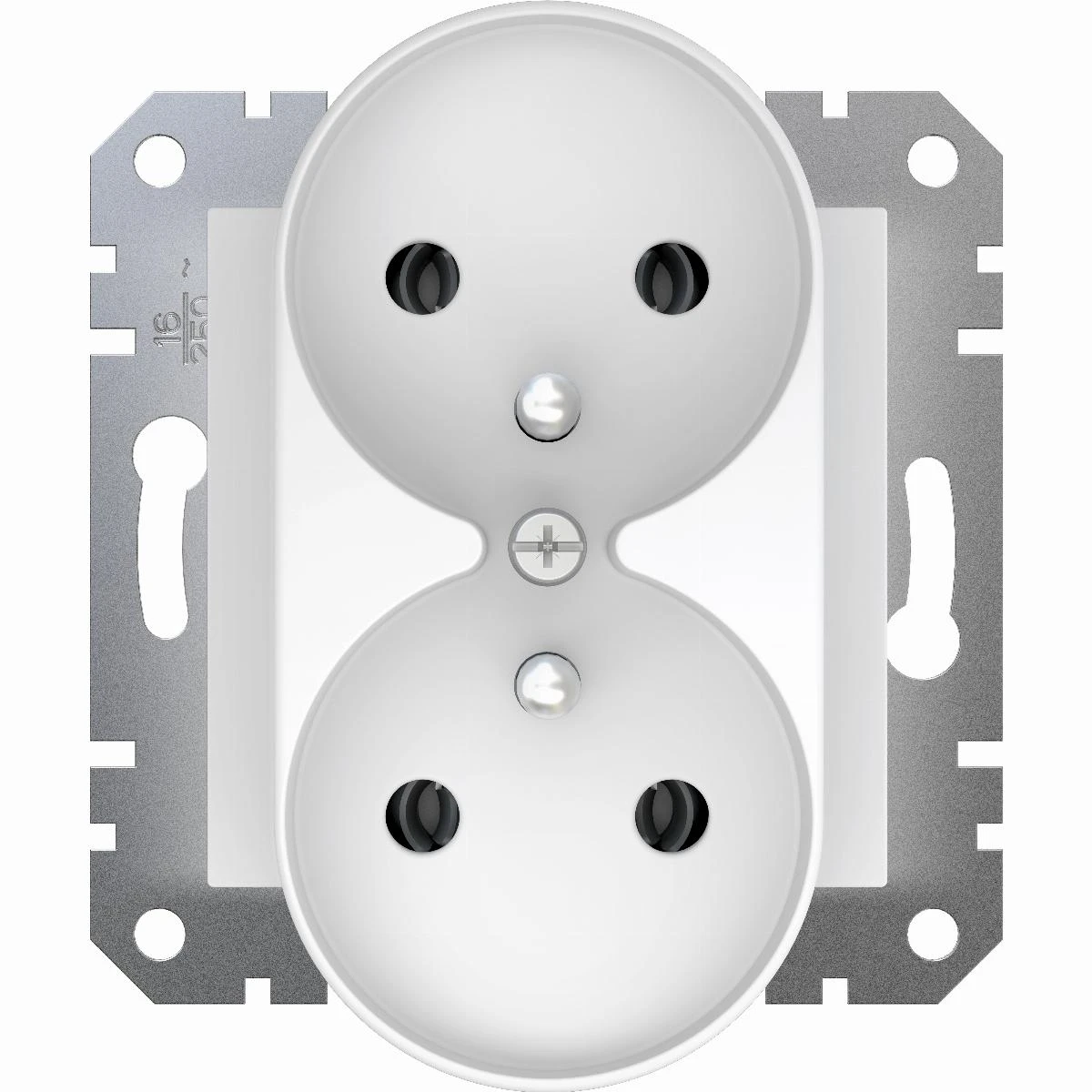

ASFORA Socket 2x2P + PE for the frame system white

Click on the photo to enlarge

ASFORA Socket 2x2P + PE for the frame system white
SCHNEIDER ELECTRIC

ASFORA Socket 2x2P + PE for the frame system white EPH9810221

local index:
MEE128SCHN
Catalog No:
EPH9810221
EAN code:
3606481332998
Price:
3,33 €
gross / pcs.
including VAT 23%
Availability:
Check availability in branches
In warehouses 171 pcs.
Delivery:
From 3,70 € (prepaid courier) Details
Estimated delivery time:
DHL, Inpost 1-3 working days

Delivery in 3h

Pickup in 1h

Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

Electric socket from the Asfora series, from the manufacturer Schneider Electric. The product part number is EPH9810221.



FEATURES

  • Double .
  • Earth; ground pin.
  • Color white.
  • Module without frame.
  • Rated current 16 A.
  • Rated voltage 230V.
  • Screw terminals.
  • Mounting flush-mounted.
  • Ingress protection IP20.



SERIES DESCRIPTION< /h3>

Asfora is a series of electrical installation equipment made of high quality materials - durable and more resistant to discoloration. Electric socket characterize the features of this unique series.

Print the product sheet Report an error

Technical data

  • Depth [mm]
    48
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    ASPHORA
  • Width [mm]
    71
  • Ground
    Hurt
  • Surface finish
    Shiny
  • Terminal type
    Threaded
  • Shutters of current paths
    NO
  • For the frame system
    Yes
  • Exact material
    ASA PC
  • Number of sockets
    2
  • Shape
    Rectangular
  • Fixing
    Screws claws
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    83
  • Backlight
    NO
  • Standard
    European
  • On the DATA key
    NO
  • Protrusion depth [mm]
    23.8

Other technical data

  • Model
    Other
  • Okrągły styk ochronny
    yes
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    no
  • Number of modules (module system)
    0
  • Number of phases
    1
  • With hinged lid
    no
  • Label space/information surface
    no
  • RAL-number (similar)
    9003
  • Lockable
    no
  • Insulated mounting
    no
  • With orientation lighting
    no
  • Fault current protection
    no
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    no
  • With loop through function
    no
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Impact strength
    Other
  • Device height
    83 mm
  • Min. depth of built-in installation box
    40.0 mm
  • Protective contact
    yes
  • Number of active contacts (round)
    2
  • With signal lamp
    no
  • Number of units
    1
  • Number of socket outlets switchable
    0
  • Connection type
    Other
  • With enhanced contact protection
    no
  • Colour
    White
  • Transparent
    no
  • Eject-mechanism
    no
  • With function lighting
    no
  • Over voltage protection
    no
  • With miniature fuse
    no
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    yes
  • Surface finishing
    Glossy
  • With on/off switch
    no
  • Rotated central insert
    no
  • Nominal voltage
    250 V
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    71 mm
  • Device depth
    48 mm
