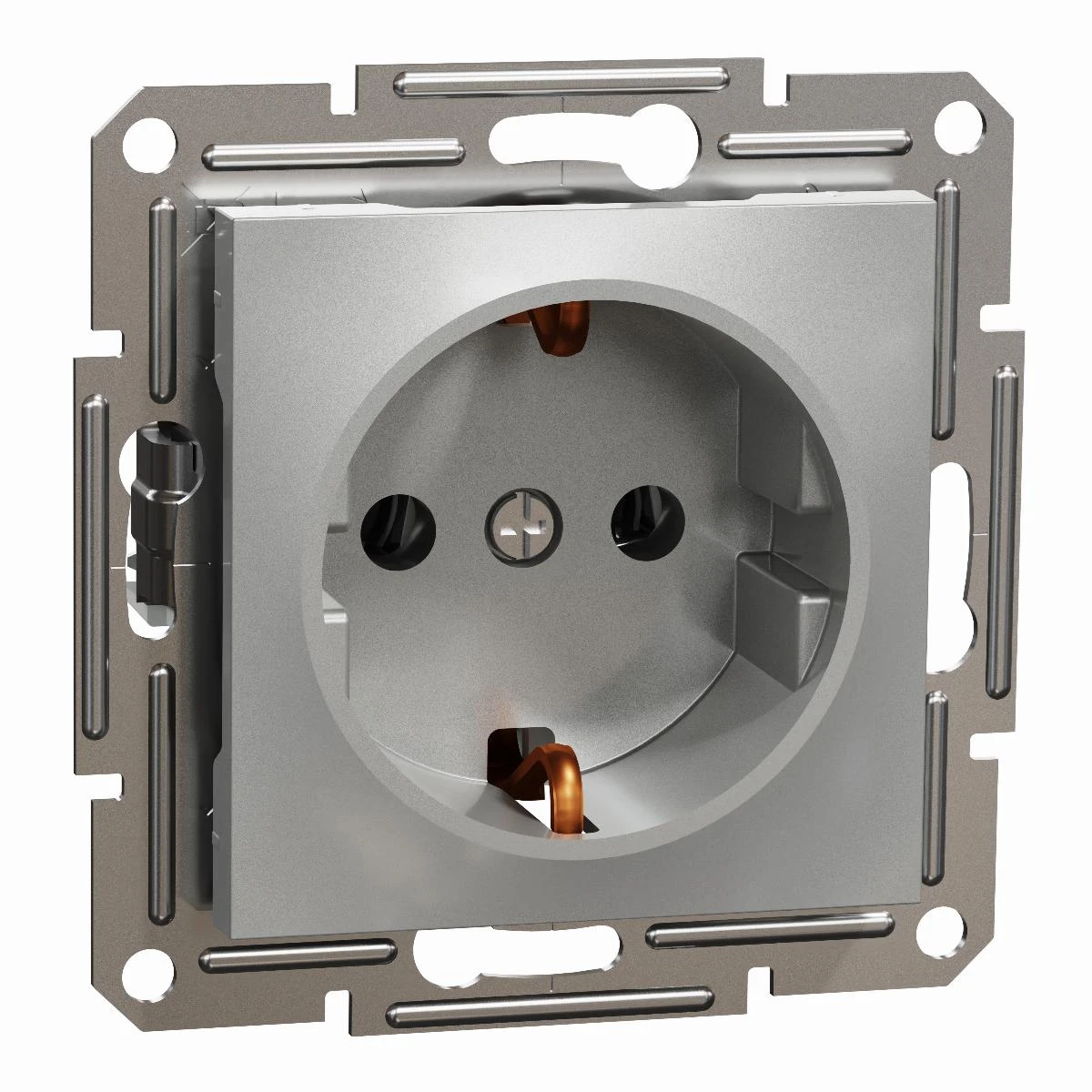

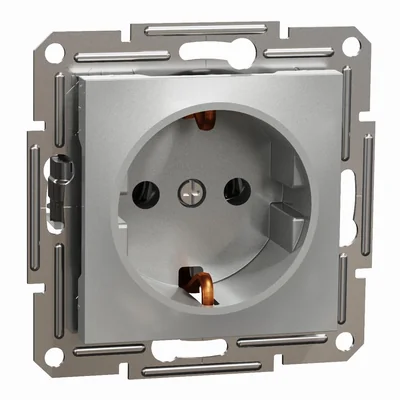

ASFORA Single SCHUKO socket without aluminum frame EPH2900161

local index:
MEE021SCHN
Catalog No:
EPH2900161
EAN code:
3606480728662
Manufacturer: SCHNEIDER ELECTRIC
Depth [mm]: 42
Number of sockets: 1
Color: Silver
Price:
4,59 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Single SCHUKO socket

  • Clamps placed in one line, thanks to which the wires can be cut to the same length in one go.
  • Access to all terminals from the front, after removing the central plate. No element will fall out even when the clamp is fully unscrewed.
  • Compact housing for safety.
  • Metal guides keep the claws in the right position.
  • Galvanized, solid mounting frame with notches to facilitate positioning.



SERIES DESCRIPTION

Asfora series is high quality at an affordable price. The geometric shapes of the Asfora series products and rich colors will match any interior and bring a unique atmosphere to it.

Thanks to the light switches and electrical sockets of the Asfora series, you will give the interior of your house or apartment a unique atmosphere. Asfora is characterized by classic shapes and 6 stylish colors, such as: white, cream, aluminum, bronze, anthracite and steel. Ease of assembly and a wide range of applications will meet the expectations of every user. Asfora switches and sockets are widely used in residential buildings, but also in public buildings, offices and hotels. Asfora is synonymous with high quality and product safety guarantees.

Technical data

  • Depth [mm]
    42
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    ASPHORA
  • Width [mm]
    71
  • Ground
    schuko
  • Power range [W]
    3680
  • Backlight
    NO
  • Standard
    European
  • On the DATA key
    NO
  • Exact material
    ABS PC
  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Accurate color
    Aluminum
  • Terminal type
    Threaded
  • Shutters of current paths
    NO
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0

Other technical data

  • Model
    Protective contact CEE 7/3 / CEE 7/4 (type F)
  • Okrągły styk ochronny
    No
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    No
  • Number of modules (module system)
    0
  • Number of phases
    1
  • With hinged lid
    No
  • Label space/information surface
    No
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • With on/off switch
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    71 mm
  • Device depth
    42 mm
  • Protective contact
    Yes
  • Number of active contacts (round)
    0
  • With signal lamp
    No
  • Number of units
    1
  • Number of socket outlets switchable
    0
  • Connection type
    Other
  • With enhanced contact protection
    No
  • Colour
    Aluminium
  • Lockable
    No
  • Insulated mounting
    No
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • With loop through function
    No
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Impact strength
    Other
  • Device height
    71 mm
  • Min. depth of built-in installation box
    40.0 mm
