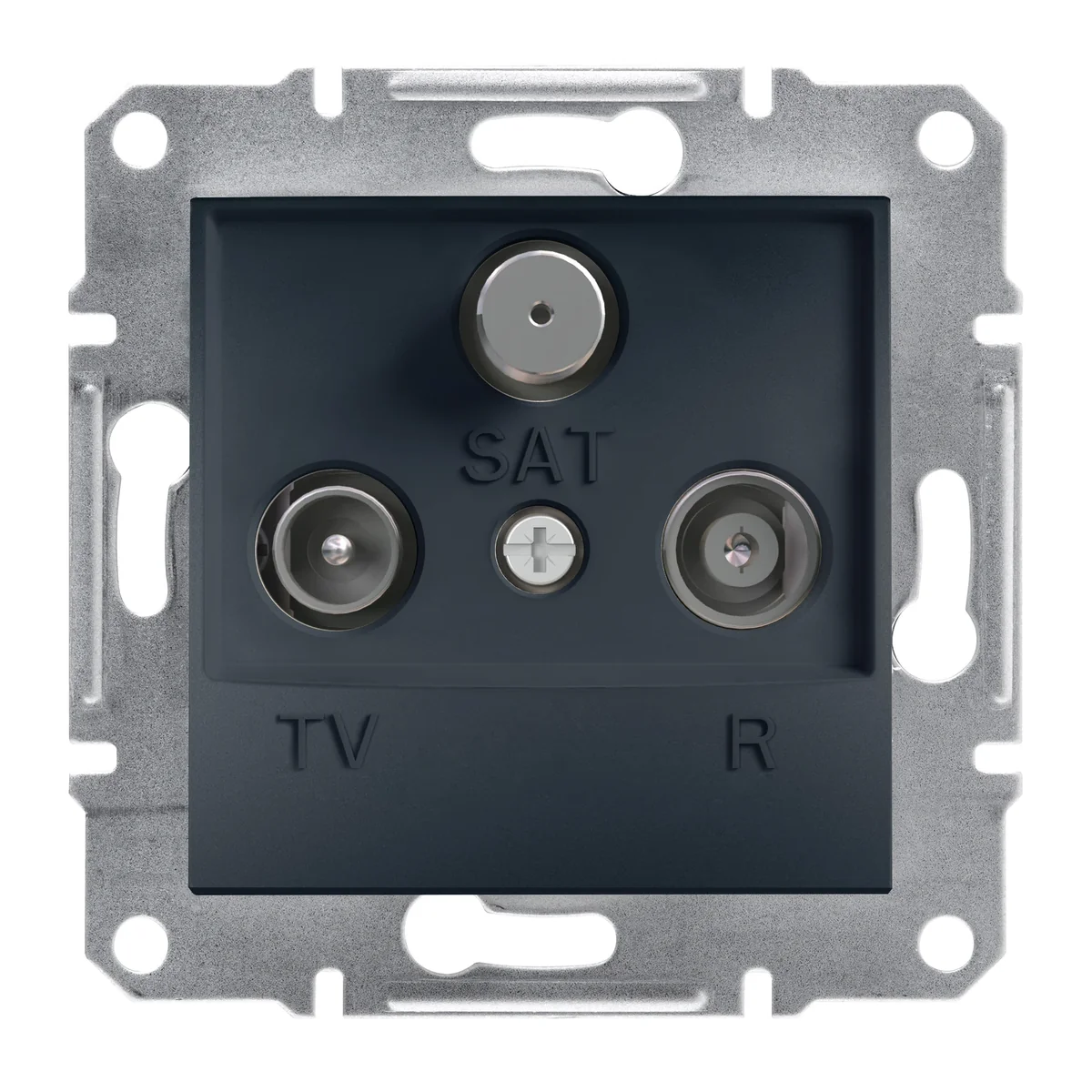

ASFORA RTV-SAT final socket 1dB without frame, anthracite EPH3500171

local index:
MEA057SCHN
Catalog No:
EPH3500171
EAN code:
3606480729706
Manufacturer: SCHNEIDER ELECTRIC
Depth [mm]: 42
Number of sockets: 3
Color: Graphite
Price:
23,74 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

RTV-SAT antenna socket. For parallel distribution systems.



SERIES DESCRIPTION

< p>The Asfora series is high quality at an affordable price. The geometric shapes of the Asfora series products and the rich colors will match any interior and bring a unique atmosphere to it.

Asfora is characterized by classic shapes and 6 stylish colors, such as: white, cream, aluminum, brown , anthracite and steel. Ease of assembly and a wide range of applications will meet the expectations of every user. Asfora switches and sockets are widely used in residential buildings, but also in public buildings, offices and hotels. Asfora is synonymous with high quality and product safety guarantees.

Technical data

  • Depth [mm]
    42
  • Color
    Graphite
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Antenna
  • Level of security
    IP20
  • Attenuation [dB]
    1
  • Version
    Final
  • Surface finish
    Painted
  • Backlight
    NO
  • Variant
    R TV sat
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0
  • Number of sockets
    3
  • Shape
    Square
  • Fixing
    claws
  • Overprint
    Yes
  • Family
    ASPHORA
  • Width [mm]
    71
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Accurate color
    anthracite
  • Terminal type
    Threadless
  • F-type input
    NO
  • Exact material
    ABS

Other technical data

  • Assembly arrangement
    Other
  • Support ring
    No
  • With hinged lid
    No
  • Imprintable label
    Without indication field
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface protection
    Other
  • Colour
    Anthracite
  • Type of fastening
    Mounting with claw
  • With strain relief
    Yes
  • Shielded housing
    Yes
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    71 mm
  • Min. depth of built-in installation box
    13 mm
  • Utilization
    SAT
  • With dust cover
    No
  • Outlet direction
    Straight
  • With imprint
    No
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • Transparent
    No
  • With buses/couplings
    No
  • Shielded buses
    No
  • Luster terminal
    Yes
  • Device width
    71 mm
  • Device depth
    42 mm
