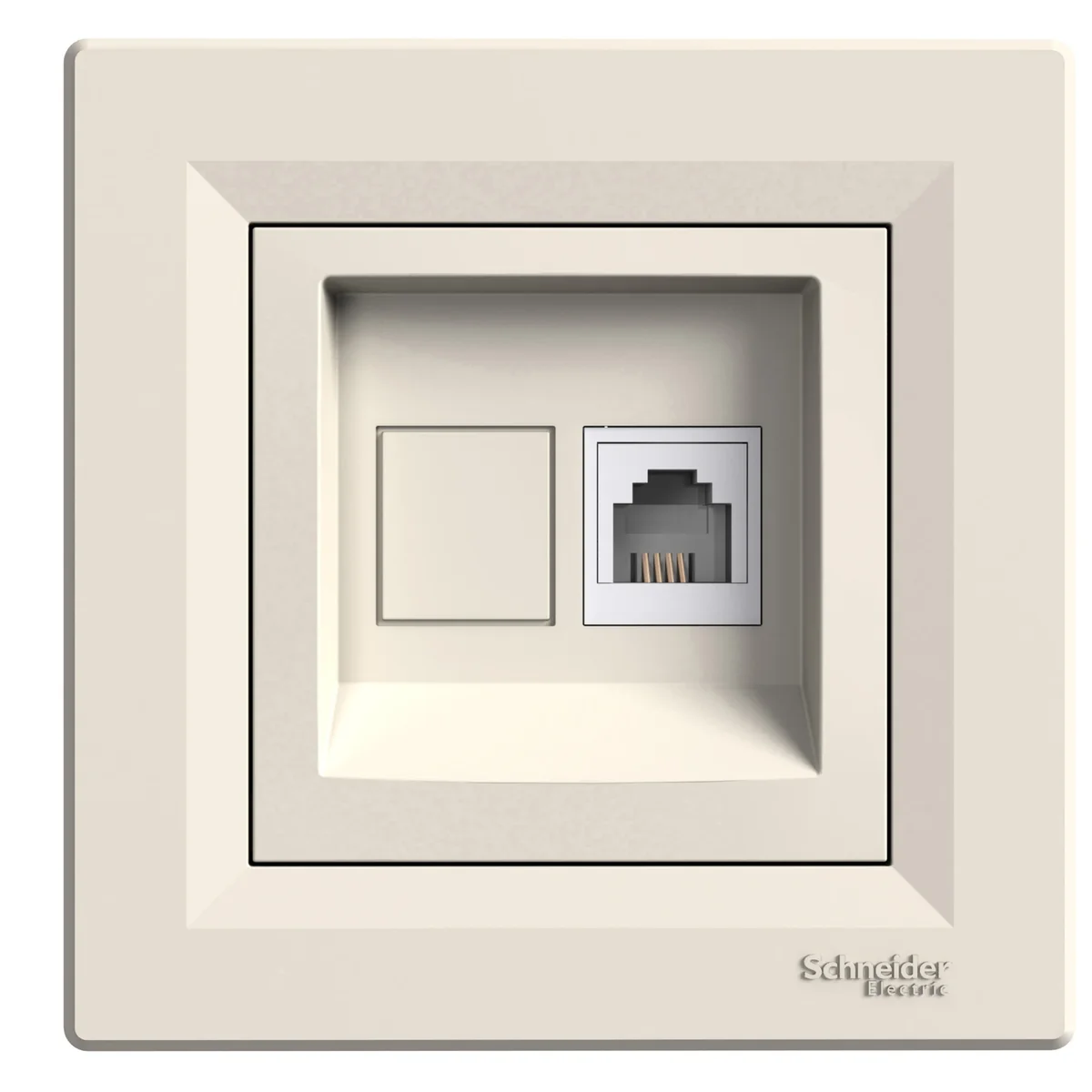

ASFORA RJ11 telephone socket cream EPH4100123

Index local:
MET002SCHN
Numéro de catalogue:
EPH4100123
Code EAN:
3606480526848
Depth [mm]: 38
Number of sockets: 1
Color: Beige
Prix:
38,39 zł
gross / pcs.
(y compris la TVA 23%)
En rupture de stock
Ajouter à la demande de devis
Imprimer

Description du produit

Telephone socket from the Asfora series, from Schneider Electric. The product part number is EPH4100123.



FEATURES

  • Single.
  • RJ11 (4 pins).
  • Complete product; with frame.
  • Thread clamps.
  • Color cream.
  • Rating IP20.
  • Flushmount.
  • Dimensions: 83 x 83 mm (H x W).< /li>



SERIES DESCRIPTION

The accessories of the Asfora series are characterized by quick, easy and safe installation. The mechanisms of the products have clear markings and connection diagrams, which greatly facilitates assembly and reduces the risk of incorrect connection.  The Asfora series of electrical installation equipment is used in residential buildings, public buildings, offices and hotels. If you value classic beauty, you like a clear, decisive shape with classic elegance and simple form, you focus on comfort and ease of installation, then the Asfora series of electrical installation accessories is for you! The telephone socket has all the features of this unique series.

Données techniques

  • Depth [mm]
    38
  • Color
    Beige
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Family
    ASPHORA
  • Width [mm]
    83
  • Height [mm]
    83
  • Accurate color
    Creamy
  • Variant
    RJ11
  • Protrusion depth [mm]
    9
  • Exact material
    ABS
  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    claws
  • Type
    by phone
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface finish
    Shiny
  • Terminal type
    Threaded
  • For the frame system
    NO
  • Extra socket
    Blank space
  • PKWIU
    27.33.13.0

Autres données techniques

  • Assembly arrangement
    Basic element with complete housing
  • Support ring
    Yes
  • With hinged lid
    No
  • Imprintable label
    Without indication field
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • RAL-number (similar)
    9010
  • Type of fastening
    Mounting with claw
  • With buses/couplings
    Yes
  • With strain relief
    No
  • Shielded housing
    No
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    83 mm
  • Min. depth of built-in installation box
    46 mm
  • Utilization
    Other
  • With dust cover
    No
  • Outlet direction
    Straight
  • With imprint
    No
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • Transparent
    No
  • Number of modules (module system)
    0
  • Suitable for number of connectors
    1
  • Shielded buses
    No
  • Luster terminal
    Yes
  • Device width
    83 mm
  • Device depth
    38 mm

Détails du fabricant

  • Producteur
    Schneider Electric Polska Sp. z o.o.
  • Adresse
    02-673 Warszawa ul. Konstruktorska 12
  • Numéro identifiant TVA
    5220011965
