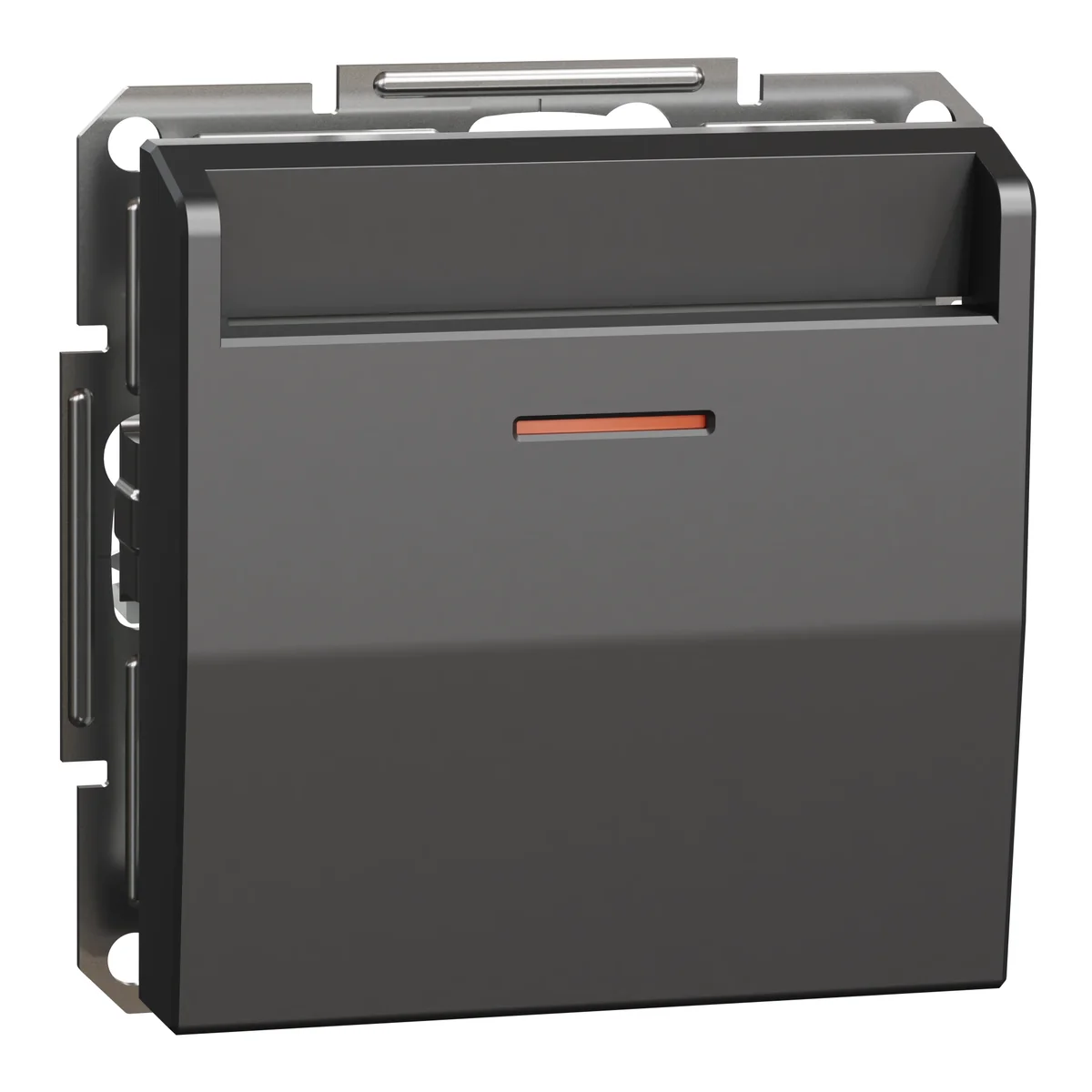

ASFORA Mechanical hotel switch without frame, anthracite EPH6200171

local index:
MMH006SCHN
Catalog No:
EPH6200171
EAN code:
3606480729898
Manufacturer: SCHNEIDER ELECTRIC
Depth [mm]: 53
Number of keys: hotel card
Color: Graphite
Price:
28,02 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Mechanical hotel switch from the Asfora series, from Schneider Electric. The product catalog number is EPH6200171.



FEATURES

  • Mechanism with mounting frame.
  • Unipolar, single.
  • Local LED signaling.



SERIES DESCRIPTION

Asfora is a series of electrical installation accessories made of high-quality materials - durable and more resistant to discoloration. Hotel connector characterizes the features of this unique series.

Technical data

  • Depth [mm]
    53
  • Color
    Graphite
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Hotel
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface finish
    Painted
  • Backlight
    Yes
  • For the frame system
    Yes
  • Exact material
    ABS
  • PKWIU
    27.33.11.0
  • Number of keys
    hotel card
  • Shape
    Square
  • Fixing
    claws screws
  • Rated current [A]
    10
  • Family
    ASPHORA
  • Width [mm]
    71
  • Height [mm]
    71
  • Accurate color
    Anthracite
  • Terminal type
    Threadless
  • Protrusion depth [mm]
    23
  • Backlight type
    LED

Other technical data

  • Wiring system
    Other
  • Assembly arrangement
    Basic element with central cover plate
  • Number of rockers
    0.0
  • Type of fastening
    Mounting with claw and screw
  • Material
    Plastic
  • Halogen free
    Yes
  • Colour
    Anthracite
  • Illumination
    Yes
  • Type of lighting
    LED not exchangeable
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    10 AX
  • Connection type
    Other
  • Device width
    71 mm
  • Device depth
    53.0 mm
  • Min. depth of built-in installation box
    40.0 mm
  • Method of operation
    Hotel card
  • Push button switch
    No
  • Mounting method
    Flush-mounted
  • With mounting plate
    No
  • Material quality
    Thermoplastic
  • Surface protection
    Lacquered
  • Label space/information surface
    No
  • Function lighting
    Orientation
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    10 A
  • Feedback-signal contact
    No
  • Washing machine switch
    No
  • Device height
    71 mm
  • Built-in depth
    28.0 mm
