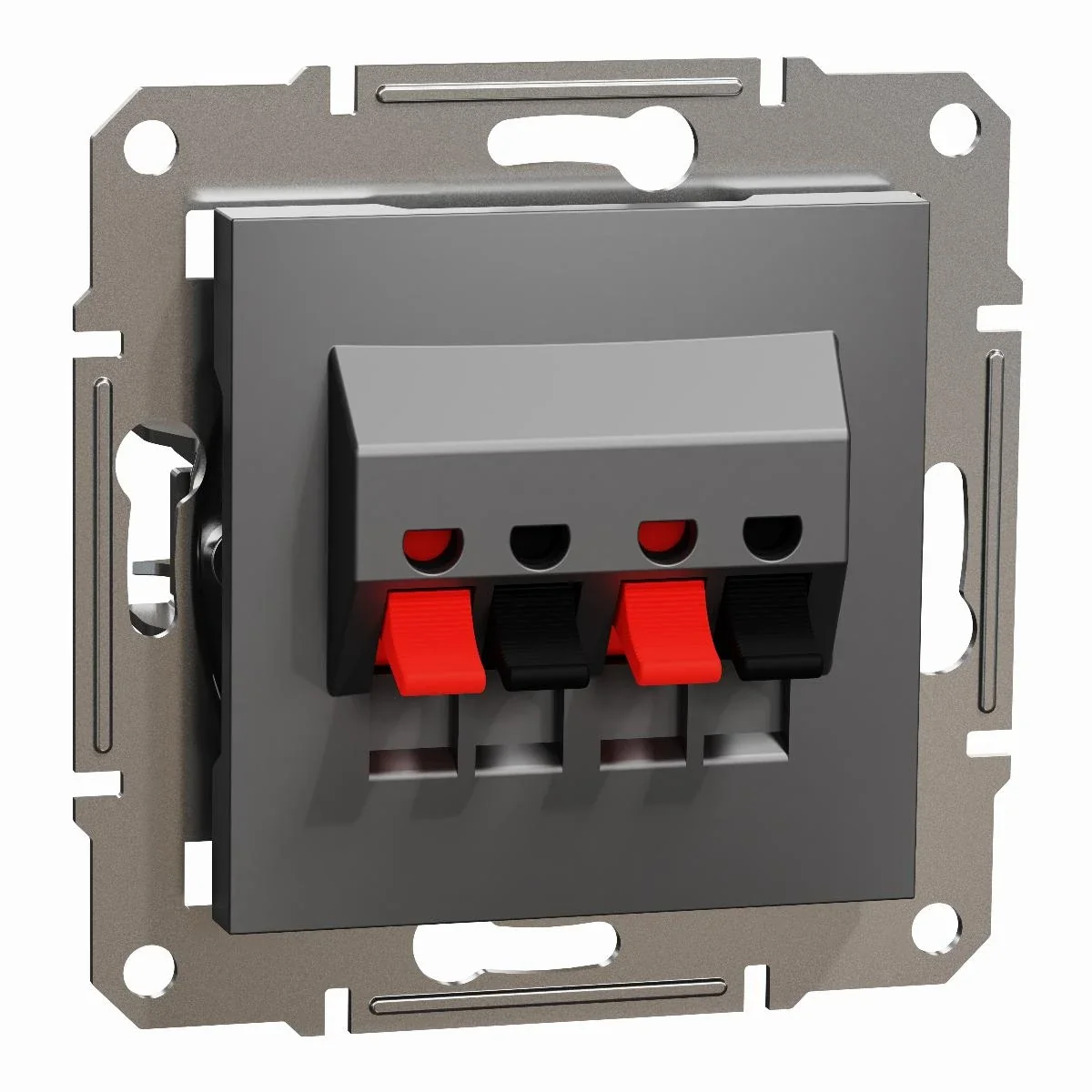

ASFORA Double speaker socket without frame anthracite EPH5700171

local index:
MEG007SCHN
Catalog No:
EPH5700171
EAN code:
3606480729911
Manufacturer: SCHNEIDER ELECTRIC
Depth [mm]: 43
Number of sockets: 2
Color: Graphite
Price:
13,58 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Speaker socket from the Asfora series, from Schneider Electric. The product part number is EPH5700171.



FEATURES

  • Double .
  • Module without frame.
  • Screwless terminals.
  • Colour anthracite strong>.
  • flush mounting.
  • 4 cables.
  • Middle plate made of ABS.



SERIES DESCRIPTION

The accessories of the Asfora series are characterized by quick, easy and safe installation.  The Asfora series of electrical installation equipment is used in residential buildings, public buildings, offices and hotels. Asfora  will appeal to people who appreciate classic beauty, like a clear, decisive shape with classic elegance and simple form, and focus on comfort and ease of installation. Speaker socket< /strong> has all the features of this unique series.

Technical data

  • Depth [mm]
    43
  • Color
    Graphite
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Family
    ASPHORA
  • Width [mm]
    71
  • Height [mm]
    71
  • Accurate color
    anthracite
  • Terminal type
    Threadless
  • For the frame system
    Yes
  • Exact material
    ABS
  • Number of sockets
    2
  • Shape
    Square
  • Fixing
    claws
  • Type
    speaker
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface finish
    Painted
  • Backlight
    NO
  • Variant
    Pin-type plugs
  • Protrusion depth [mm]
    17
  • PKWIU
    27.33.13.0

Other technical data

  • Assembly arrangement
    Basic element
  • Support ring
    No
  • With hinged lid
    No
  • Imprintable label
    Without indication field
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Transparent
    No
  • With buses/couplings
    No
  • Shielded buses
    No
  • Luster terminal
    No
  • Device width
    71 mm
  • Device depth
    43 mm
  • Utilization
    Loudspeaker connection
  • With dust cover
    No
  • Outlet direction
    Straight
  • With imprint
    No
  • Material
    Plastic
  • Colour
    Anthracite
  • Type of fastening
    Mounting with claw
  • With strain relief
    No
  • Shielded housing
    No
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    71 mm
  • Min. depth of built-in installation box
    17 mm
