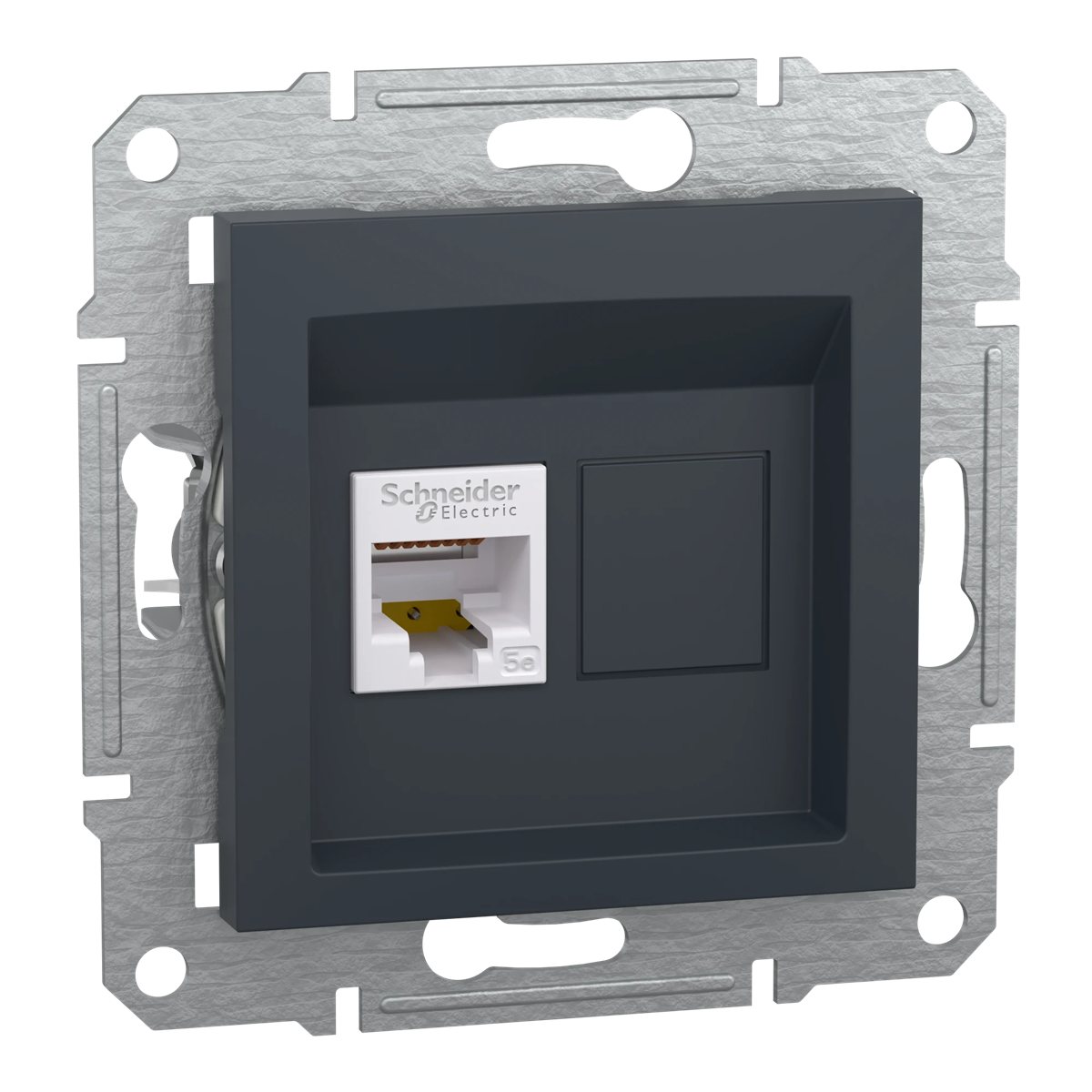

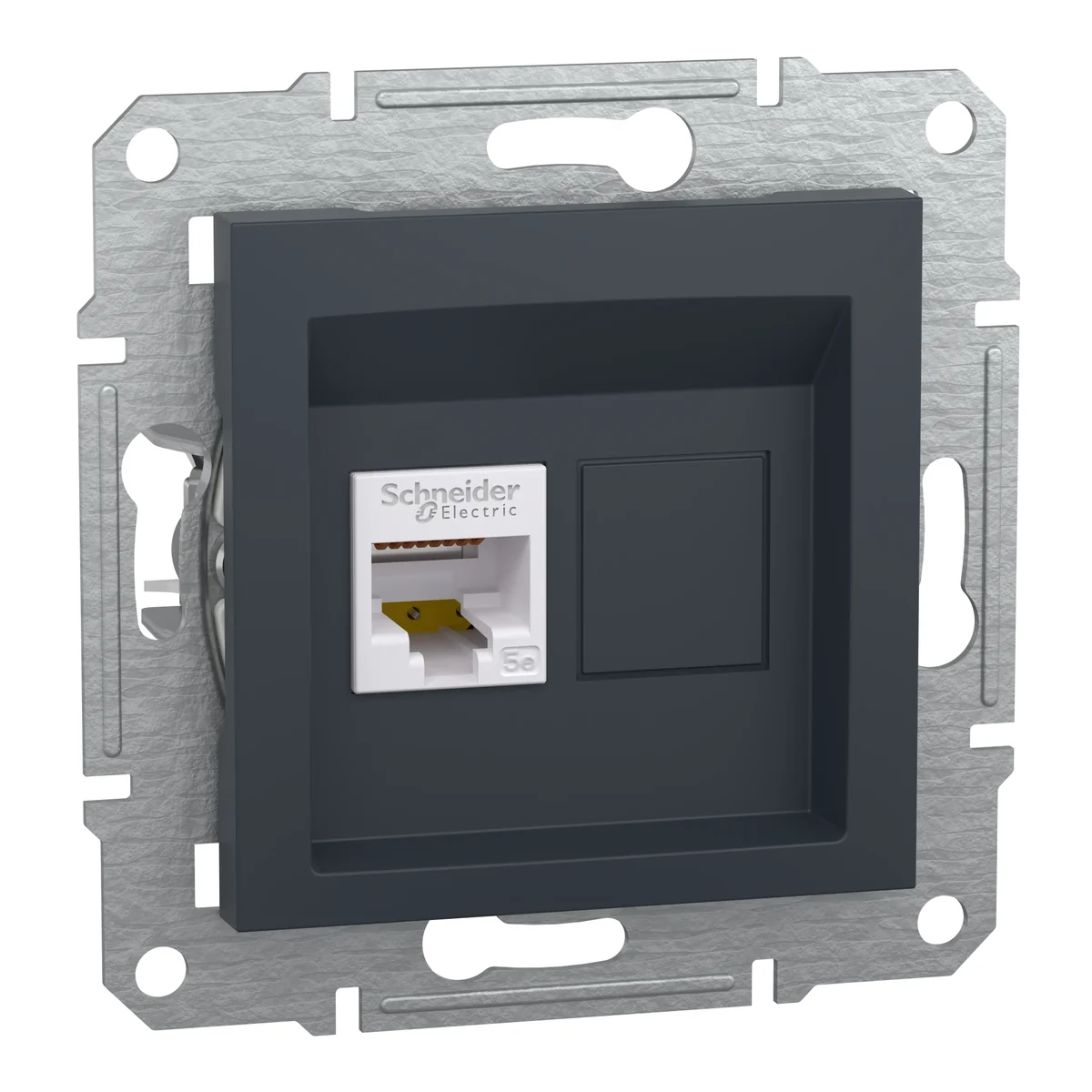

ASFORA Computer socket RJ45 cat.5e STP without frame anthracite EPH5000171

local index:
MEI033SCHN
Catalog No:
EPH5000171
EAN code:
3606480729751
Manufacturer: SCHNEIDER ELECTRIC
Depth [mm]: 38
Category: 5e
Color: Graphite
Price:
21,00 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Computer socket RJ45. It is used to connect the STP category 5e shielded twisted pair signal cable.



SERIES DESCRIPTION

The Asfora series is a high quality affordable price. The geometric shapes of the Asfora series products and the rich colors will match any interior and bring a unique atmosphere to it.

Asfora is characterized by classic shapes and 6 stylish colors, such as: white, cream, aluminium, bronze, anthracite and steel. Ease of assembly and a wide range of applications will meet the expectations of every user. Asfora switches and sockets are widely used in residential buildings, but also in public buildings, offices and hotels. Asfora is synonymous with high quality and product safety guarantees.

Technical data

  • Depth [mm]
    38
  • Color
    Graphite
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Family
    ASPHORA
  • Width [mm]
    71
  • Version
    STP
  • Surface finish
    Painted
  • Terminal type
    Threadless
  • For the frame system
    Yes
  • Number of internet sockets
    1
  • Extra socket
    Blank space
  • PKWIU
    27.33.13.0
  • Category
    5e
  • Shape
    Square
  • Fixing
    claws
  • Type
    Internet
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Accurate color
    anthracite
  • Variant
    RJ45 (twisted pair)
  • Protrusion depth [mm]
    9
  • Dust cover
    NO
  • Exact material
    ABS

Other technical data

  • Surface mounting
    No
  • Assembly arrangement
    Basic element
  • Suitable for number of connectors
    1
  • Colour
    Anthracite
  • Shielded buses
    Yes
  • Degree of protection (IP)
    IP20
  • Device height
    71 mm
  • Type of fastening
    Other
  • Type of connector
    Other
  • Category
    5E
  • Connection type
    Insulation displacement connector
  • With label space
    No
  • Device width
    71 mm
  • Device depth
    38 mm
