ASFORA Computer socket RJ45 2x cat.6 UTP without frame anthracite EPH4800171

Índice local:
MEI027SCHN
Número de catálogo:
EPH4800171
Código EAN:
3606480729782
Depth [mm]: 38
Category: 6
Color: Graphite
Precio:
181,57 zł
gross / uds.
(IVA incluido 23%)
hasta 4 semanas
Por encargo
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir

Descripción del producto

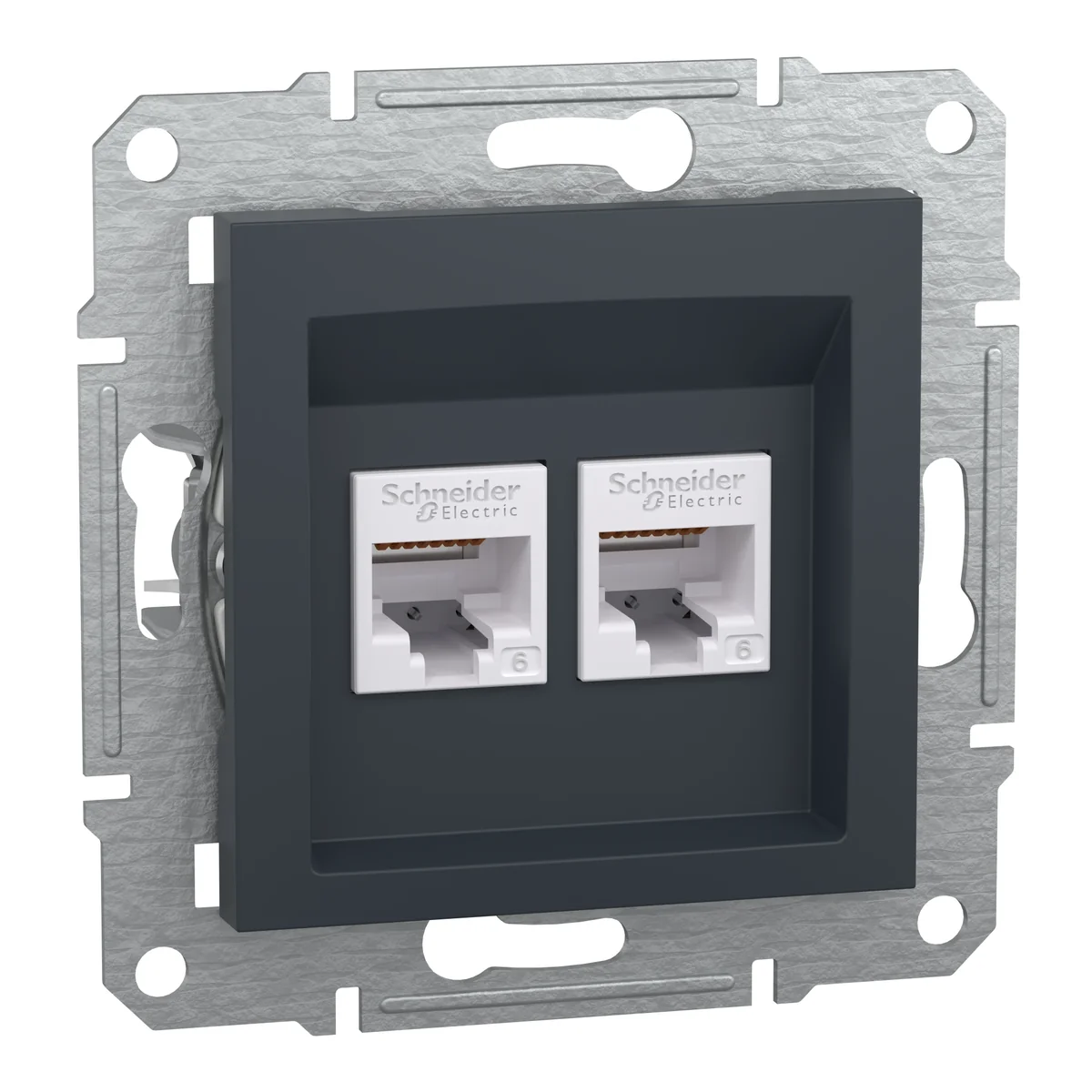

RJ45 double computer socket. It is used to connect two signal cables of category 6 twisted pair cable.



SERIES DESCRIPTION

Asfora series is high quality at an affordable price. The geometric shapes of the Asfora series products and the rich colors will match any interior and bring a unique atmosphere to it.

Asfora is characterized by classic shapes and 6 stylish colors, such as: white, cream, aluminium, bronze, anthracite and steel. Ease of assembly and a wide range of applications will meet the expectations of every user. Asfora switches and sockets are widely used in residential buildings, but also in public buildings, offices and hotels. Asfora is synonymous with high quality and product safety guarantees.

Datos técnicos

  • Depth [mm]
    38
  • Color
    Graphite
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Family
    ASPHORA
  • Width [mm]
    71
  • Version
    UTP
  • Surface finish
    Painted
  • Terminal type
    Threadless
  • For the frame system
    Yes
  • Number of internet sockets
    2
  • Exact material
    ABS
  • Category
    6
  • Shape
    Square
  • Fixing
    claws
  • Type
    Internet
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Accurate color
    anthracite
  • Variant
    RJ45 (twisted pair)
  • Protrusion depth [mm]
    9
  • Dust cover
    NO
  • PKWIU
    27.33.13.0

Otros datos técnicos

  • Surface mounting
    No
  • Assembly arrangement
    Basic element
  • Suitable for number of connectors
    2
  • Colour
    Anthracite
  • Shielded buses
    No
  • Mounting method shielding connection
    Other
  • Device width
    71 mm
  • Device depth
    38 mm
  • Type of fastening
    Other
  • Type of connector
    Other
  • Category
    6
  • Connection type
    Insulation displacement connector
  • With label space
    No
  • Degree of protection (IP)
    IP20
  • Device height
    71 mm

Detalles del fabricante

  • Fabricante
    Schneider Electric Polska
  • Dirección
    02-673 Warszawa Konstruktorska 12 Polska
