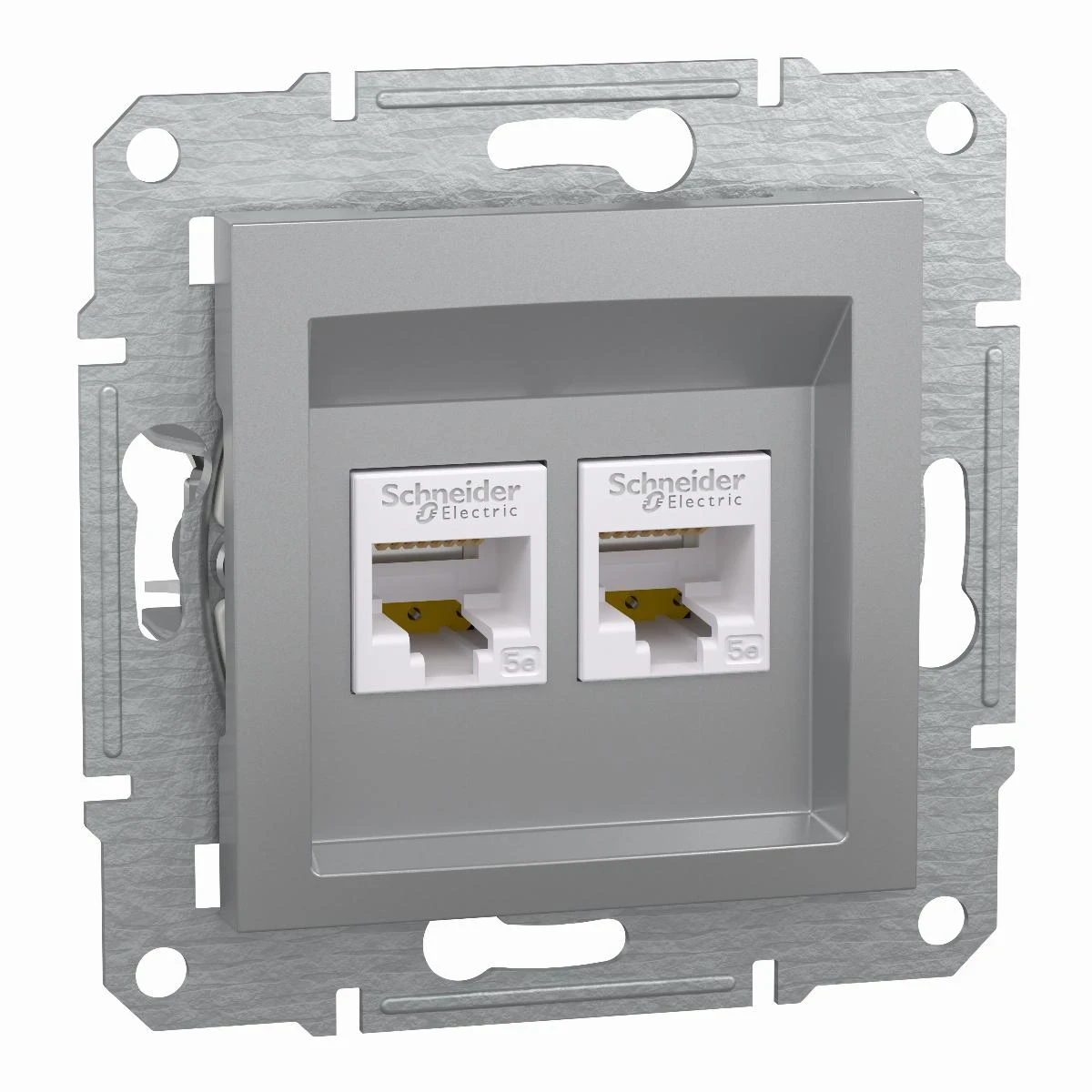

ASFORA Computer socket 2x RJ45 cat.5e UTP without aluminum frame EPH4400161

local index:
MEI013SCHN
Catalog No:
EPH4400161
EAN code:
3606480728891
Manufacturer: SCHNEIDER ELECTRIC
Depth [mm]: 38
Category: 5e
Color: Silver
Price:
24,96 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

RJ45 double computer socket. It is used to connect a twisted-pair cable of category 5e.



SERIES DESCRIPTION

The Asfora series is high quality at an affordable price . The geometric shapes of the Asfora series products and the rich colors will match any interior and bring a unique atmosphere to it.

Asfora is characterized by classic shapes and 6 stylish colors, such as: white, cream, aluminium, bronze, anthracite and steel. Ease of assembly and a wide range of applications will meet the expectations of every user. Asfora switches and sockets are widely used in residential buildings, but also in public buildings, offices and hotels. Asfora is synonymous with high quality and product safety guarantees.

Technical data

  • Depth [mm]
    38
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Family
    ASPHORA
  • Width [mm]
    71
  • Version
    UTP
  • Surface finish
    Painted
  • Terminal type
    Threadless
  • For the frame system
    Yes
  • Number of internet sockets
    2
  • Exact material
    ABS
  • Category
    5e
  • Shape
    Square
  • Fixing
    claws
  • Type
    Internet
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Accurate color
    Aluminum
  • Variant
    RJ45 (twisted pair)
  • Protrusion depth [mm]
    9
  • Dust cover
    NO
  • PKWIU
    27.33.13.0

Other technical data

  • Surface mounting
    No
  • Assembly arrangement
    Basic element
  • Suitable for number of connectors
    2
  • Colour
    Aluminium
  • Shielded buses
    No
  • Mounting method shielding connection
    Other
  • Device width
    71 mm
  • Device depth
    38 mm
  • Type of fastening
    Other
  • Type of connector
    Other
  • Category
    5E
  • Connection type
    Insulation displacement connector
  • With label space
    No
  • Degree of protection (IP)
    IP20
  • Device height
    71 mm
