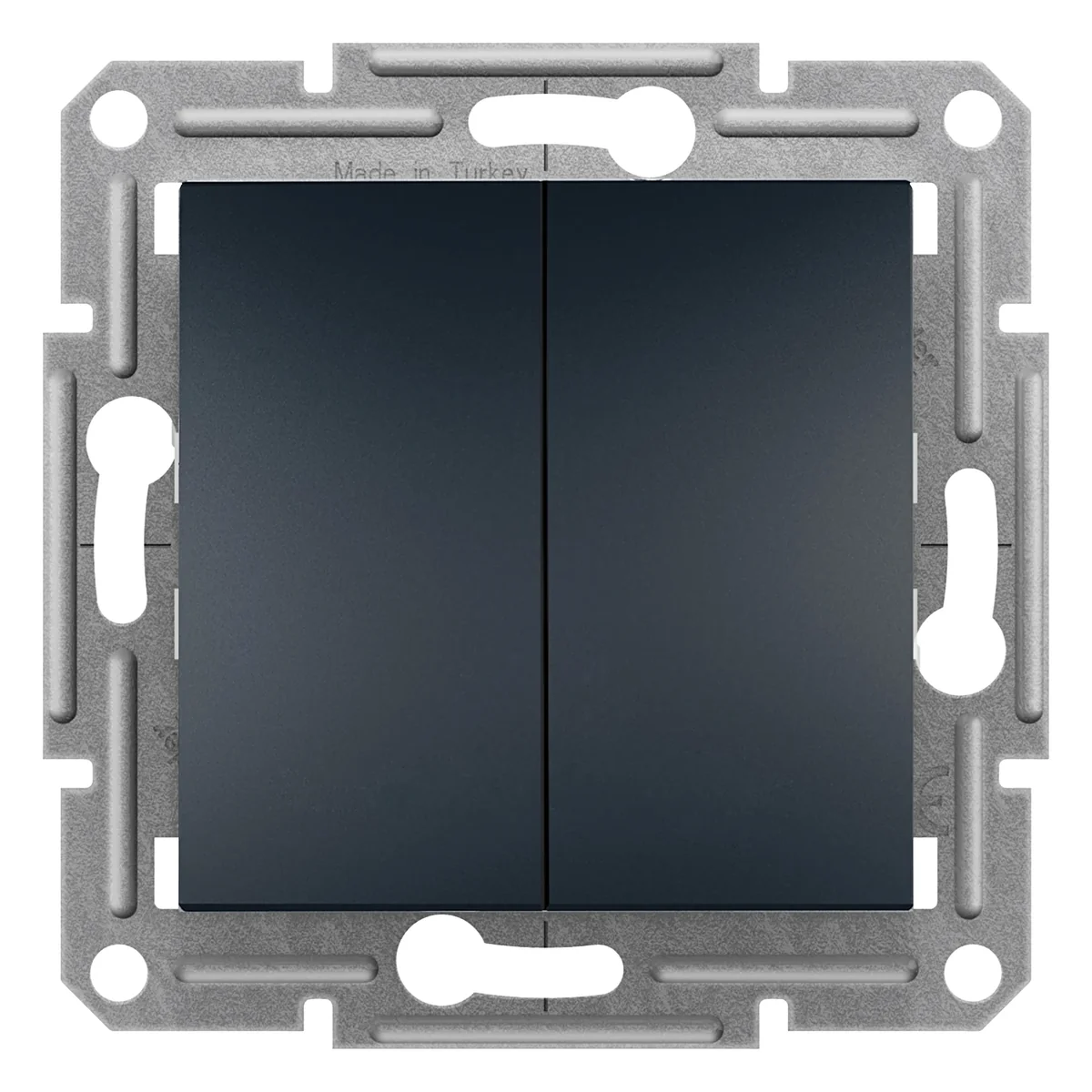

ASFORA Candlestick connector without frame, anthracite screw clamps EPH0300371

local index:
MMT017SCHN
Catalog No:
EPH0300371
EAN code:
3606480729287
Manufacturer: SCHNEIDER ELECTRIC
Depth [mm]: 43
Number of keys: 2
Color: Graphite
Price:
4,64 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Candlestick switch from the Asfora series, from Schneider Electric. The product catalog number is EPH0300371.



FEATURES

  • Module without frame.
  • Screw terminals.
  • Colour anthracite.
  • < li>Rated current 10AX.
  • Rated voltage 230V.
  • Mounting flush.< /li>
  • Ingress protection IP20.
  • Dimensions: 71 x 71 mm (H x W).
  • Made of ABS .
  • Length of insulation stripped from the cable: 13mm.



FEATURES OF ASFORA SWITCH

< ul>
  • Simple, quick assembly and disassembly of wires in the terminals.
  • Conical entries leading the wires to the terminals.
  • Long solid claws. Metal guides keep the claws in the right position.
  • Galvanized, solid mounting frame with cuts for easy positioning.
  • Clear diagram and terminal marking for easy connection.
  •

    SERIES DESCRIPTION

    The accessories of the Asfora series are characterized by quick, easy and safe installation. The mechanisms of the products have clear markings and connection diagrams, which greatly facilitates assembly and reduces the risk of incorrect connection.

    The Asfora series of electrical installation accessories is used in residential buildings, public utility facilities , offices and hotels. If you value classic beauty, you like a clear, decisive shape with classic elegance and simple form, you focus on comfort and ease of installation, then the Asfora series of electrical installation accessories is for you!

    Technical data

    • Depth [mm]
      43
    • Color
      Graphite
    • Material
      Plastic
    • Installation
      Flush-mounted
    • Rated current [A]
      10
    • Family
      ASPHORA
    • Width [mm]
      71
    • Height [mm]
      71
    • Accurate color
      anthracite
    • Terminal type
      Threaded
    • Protrusion depth [mm]
      15
    • PKWIU
      27.33.11.0
    • Number of keys
      2
    • Shape
      Square
    • Fixing
      claws screws
    • Rated voltage [V]
      230
    • Type
      Candlestick
    • Level of security
      IP20
    • Type
      Flush-mounted
    • Surface finish
      Painted
    • Backlight
      NO
    • For the frame system
      Yes
    • Exact material
      ABS

    Other technical data

    • Assembly arrangement
      Basic element with central cover plate
    • Method of operation
      Rocker
    • Feedback-signal contact
      No
    • With lighting
      No
    • Type of fastening
      Mounting with claw and screw
    • Material quality
      Thermoplastic
    • Surface protection
      Lacquered
    • Transparent
      No
    • Imprint
      None
    • Suitable for degree of protection (IP)
      IP20
    • Rated current
      10.0 A
    • Device height
      71.0 mm
    • Min. depth of built-in installation box
      40.0 mm
    • Model
      Other
    • Number of poles
      1
    • Number of rockers
      2.0
    • Mounting method
      Flush-mounted
    • Material
      Plastic
    • Halogen free
      Yes
    • Colour
      Anthracite
    • Label space/information surface
      No
    • With signal lamp
      No
    • Nominal voltage
      250.0 V
    • Device width
      71 mm
    • Device depth
      43.0 mm
