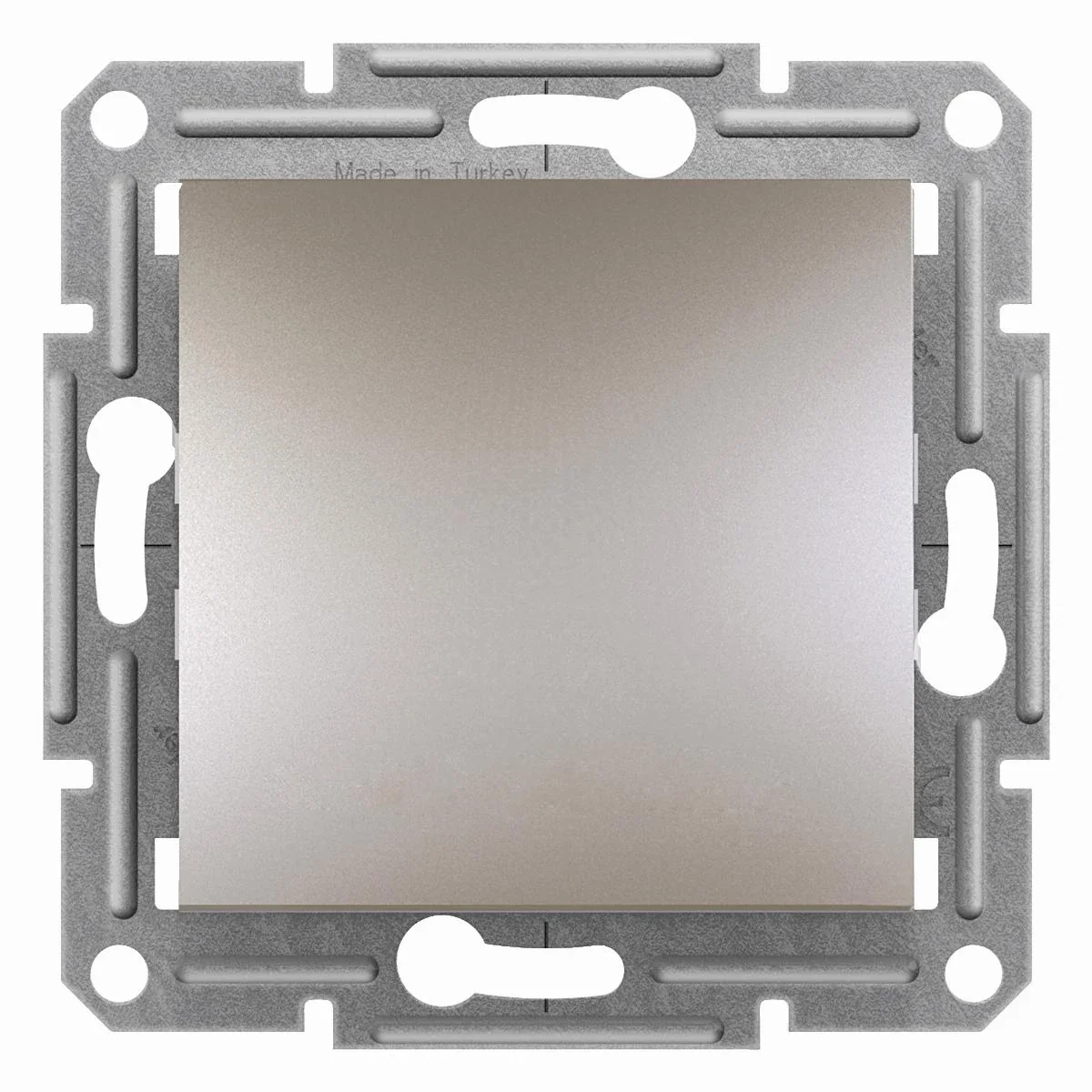

ASFORA Button without frame metallic bronze screw terminals EPH0800369
Index local:
MMZ026SCHN
Numéro de catalogue:
EPH0800369
Code EAN:
3606480727603
Prix:
26,56 zł
gross / pcs.
(y compris la TVA 23%)
Ajouter à la demande de devis
Imprimer
Renseignez-vous sur le produit
Description du produit
The button from the Asfora series, from the manufacturer Schneider Electric. The product catalog number is EPH0800369. In the color of metallic bronze.
FEATURES
- Long solid claws. Metal guides keep the claws in the right position.
- Galvanized, solid mounting frame with notches for easy positioning.
- Mounting method: screws or claws 51…70 mm.
- Length of insulation stripped from the cable: 13 mm.
SERIES DESCRIPTION
Accessories of Asfora< series /strong> features quick, easy and secure installation. The mechanisms of the products have clear markings and connection diagrams, which greatly facilitates assembly and reduces the risk of incorrect connection.
The Asfora series of electrical installation accessories is used in residential buildings, public utility facilities , offices and hotels. If you value classic beauty, you like a clear, decisive shape with classic elegance and simple form, you focus on comfort and ease of installation, then the Asfora series of electrical installation accessories is for you!
Données techniques
-
Depth [mm]43
-
ColorBrown
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]10
-
FamilyASPHORA
-
Width [mm]71
-
VersionConfident
-
Surface finishPainted
-
BacklightNO
-
VariantOrdinary
-
Protrusion depth [mm]15
-
PKWIU27.33.11.0
-
Number of keys1
-
ShapeSquare
-
Fixingclaws screws
-
Rated voltage [V]230
-
TypeShort
-
Level of securityIP20
-
TypeFlush-mounted
-
Height [mm]71
-
Accurate colorMetallic bronze
-
Terminal typeThreaded
-
For the frame systemYes
-
Exact materialABS
Autres données techniques
-
Assembly arrangementBasic element with central cover plate
-
Method of operationPush button
-
Feedback-signal contactNo
-
With lightingNo
-
Type of fasteningMounting with claw and screw
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
ColourBronze
-
Label space/information surfaceNo
-
With signal lampNo
-
Nominal voltage250 V
-
Device width71 mm
-
Device depth43.0 mm
-
ModelSingle push button
-
Number of poles1
-
Number of rockers1
-
Mounting methodFlush-mounted
-
MaterialPlastic
-
Halogen freeYes
-
Anti-bacterial treatmentNo
-
TransparentNo
-
ImprintNone
-
Suitable for degree of protection (IP)IP20
-
Rated current10 A
-
Device height71 mm
-
Min. depth of built-in installation box40.0 mm
