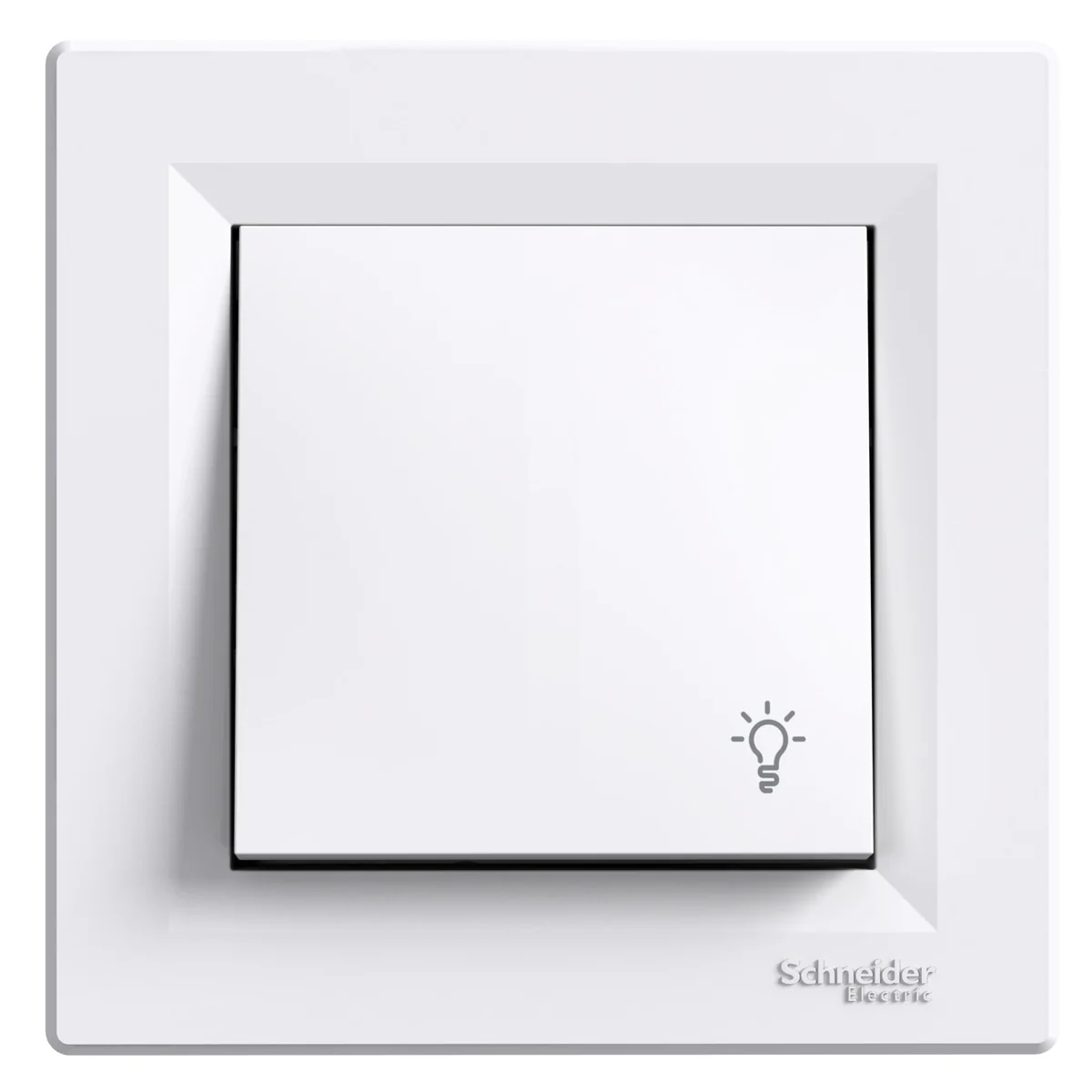

ASFORA Button "light" white EPH0900121

local index:
MMZ147SCHN
Catalog No:
EPH0900121
EAN code:
3606480525452
Manufacturer: SCHNEIDER ELECTRIC
Color: White
Shape: Square
Material: Plastic
Price:
3,96 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 28 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

ASFORA "Light" button white

Technical data

  • Color
    White
  • Material
    Plastic
  • Family
    ASPHORA
  • PKWIU
    27.33.11.0
  • Shape
    Square
  • Installation
    Flush-mounted
  • Type
    Flush-mounted

Other technical data

  • Assembly arrangement
    Basic element with complete housing
  • Method of operation
    Push button
  • Feedback-signal contact
    No
  • With lighting
    No
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • RAL-number (similar)
    9003.0
  • Label space/information surface
    Yes
  • With signal lamp
    No
  • Nominal voltage
    250 V
  • Device width
    83 mm
  • Device depth
    43.0 mm
  • Model
    Single push button
  • Number of poles
    1.0
  • Number of rockers
    1
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • Colour
    White
  • Transparent
    No
  • Imprint
    Symbol "light"
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    10 A
  • Device height
    83 mm
  • Min. depth of built-in installation box
    40.0 mm
