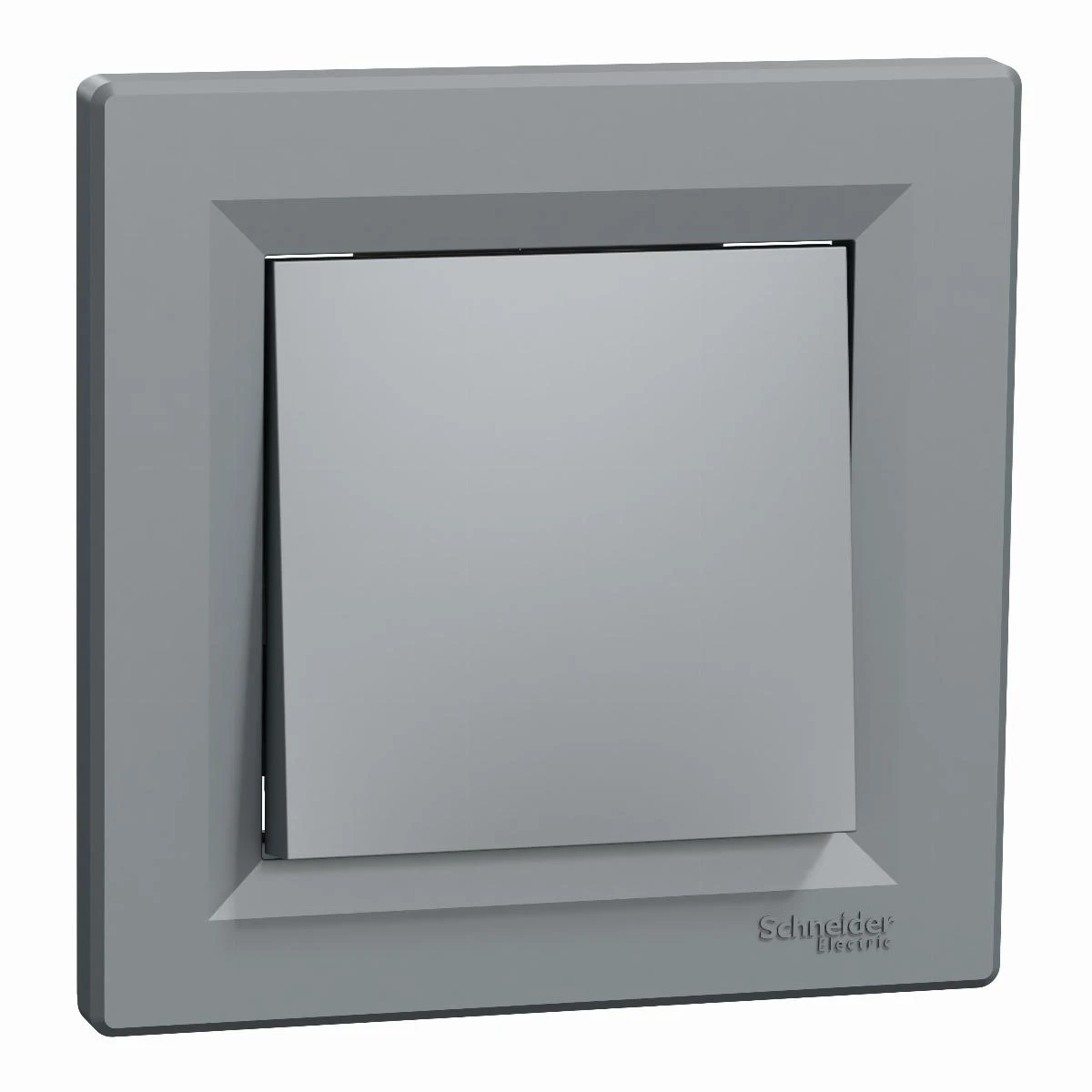

ASFORA 1-pole switch without a steel frame EPH0100162

local index:
MMP009SCHN
Catalog No:
EPH0100162
EAN code:
3606480730108
Manufacturer: SCHNEIDER ELECTRIC
Depth [mm]: 43
Number of keys: 1
Color: Silver
Price:
4,59 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Single pole switch from the Asfora series. Standard accessories used to turn on/off lighting.

  • Simple , quick assembly and disassembly of wires in the terminals.
  • Conical entries leading the wires to the terminals.
  • Long solid claws. Metal guides keep the claws in the right position.
  • Galvanized, solid mounting frame with cuts for easy positioning.
  • Clear diagram and terminal marking for easy connection.



SERIES DESCRIPTION

The Asfora series is high quality at an affordable price. The geometric shapes of the Asfora series products and the rich colors will match any interior and bring a unique atmosphere to it.

Asfora is characterized by classic shapes and 6 stylish colors, such as: white, cream, aluminium, bronze, anthracite and steel. Ease of assembly and a wide range of applications will meet the expectations of every user. Asfora switches and sockets are widely used in residential buildings, but also in public buildings, offices and hotels. Asfora is synonymous with high quality and product safety guarantees.

Technical data

  • Depth [mm]
    43
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    ASPHORA
  • Width [mm]
    71
  • Height [mm]
    71
  • Surface finish
    Painted
  • Backlight
    NO
  • For the frame system
    Yes
  • Exact material
    ABS
  • Number of keys
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Single
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Power range [W]
    2300
  • Accurate color
    Steel
  • Terminal type
    Threadless
  • Protrusion depth [mm]
    15
  • PKWIU
    27.33.11.0

Other technical data

  • Assembly arrangement
    Basic element with central cover plate
  • Method of operation
    Rocker
  • Feedback-signal contact
    No
  • With lighting
    No
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • Surface protection
    Lacquered
  • Transparent
    No
  • Imprint
    None
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    10.0 A
  • Device height
    71.0 mm
  • Min. depth of built-in installation box
    40.0 mm
  • Model
    Other
  • Number of poles
    1
  • Number of rockers
    1.0
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Colour
    Stainless steel
  • Label space/information surface
    No
  • With signal lamp
    No
  • Nominal voltage
    250.0 V
  • Device width
    71 mm
  • Device depth
    43.0 mm
