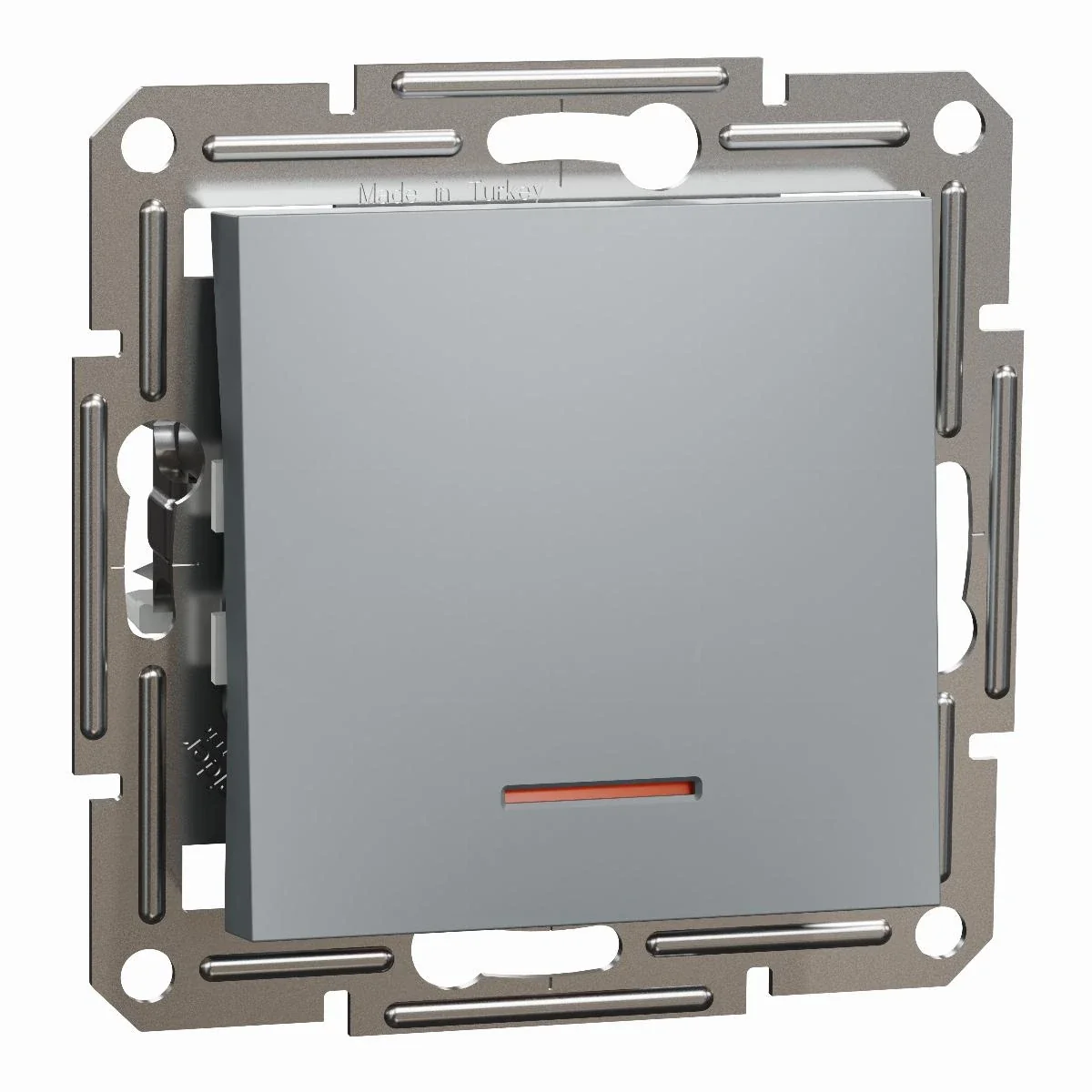

ASFORA 1-pole switch without a frame with a steel backlight EPH1400162

local index:
MMP027SCHN
Catalog number:
EPH1400162
EAN code:
3606480730252
Manufacturer: SCHNEIDER ELECTRIC
Depth [mm]: 43
Number of keys: 1
Color: Silver
Price:
43,67 zł
gross / pcs.
(including VAT 23%)
2 weeks
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print

Product description

Single-pole switch with backlight,  Asfora series. Standard accessories used to turn on/off lighting.

  • Simple, quick assembly and disassembly of wires in the terminals.
  • Conical entries leading the wires to the terminals.
  • Long solid claws. Metal guides keep the claws in the right position.
  • Galvanized, solid mounting frame with cuts for easy positioning.
  • Clear diagram and terminal marking for easy connection.



SERIES DESCRIPTION

The Asfora series is high quality at an affordable price. The geometric shapes of the Asfora series products and the rich colors will match any interior and bring a unique atmosphere to it.

Asfora is characterized by classic shapes and 6 stylish colors, such as: white, cream, aluminium, bronze, anthracite and steel. Ease of assembly and a wide range of applications will meet the expectations of every user. Asfora switches and sockets are widely used in residential buildings, but also in public buildings, offices and hotels. Asfora is synonymous with high quality and product safety guarantees.

Technical data

  • Depth [mm]
    43
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    ASPHORA
  • Width [mm]
    71
  • Height [mm]
    71
  • Surface finish
    Painted
  • Backlight
    Yes
  • For the frame system
    Yes
  • Exact material
    ABS
  • Backlight color
    Red
  • Number of keys
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Single
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Power range [W]
    2300
  • Accurate color
    Steel
  • Terminal type
    Threadless
  • Protrusion depth [mm]
    15
  • Backlight type
    Indicative LED
  • PKWIU
    27.33.11.0

Other technical data

  • Wiring system
    Other
  • Assembly arrangement
    Basic element with central cover plate
  • Number of rockers
    1
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • Surface protection
    Lacquered
  • Label space/information surface
    No
  • Function lighting
    Illuminated (on)
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    10 A
  • Connection type
    Other
  • Device height
    71 mm
  • Built-in depth
    40 mm
  • Method of operation
    Rocker/button
  • Push button switch
    No
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Colour
    Stainless steel
  • Illumination
    Yes
  • Type of lighting
    LED not exchangeable
  • Nominal voltage
    250 V
  • Feedback-signal contact
    No
  • Device width
    71 mm
  • Device depth
    43 mm
  • IFTTT support available
    No

Manufacturer details

  • Manufacturer
    Schneider Electric Polska
  • Address
    02-673 Warszawa Konstruktorska 12 Polska
