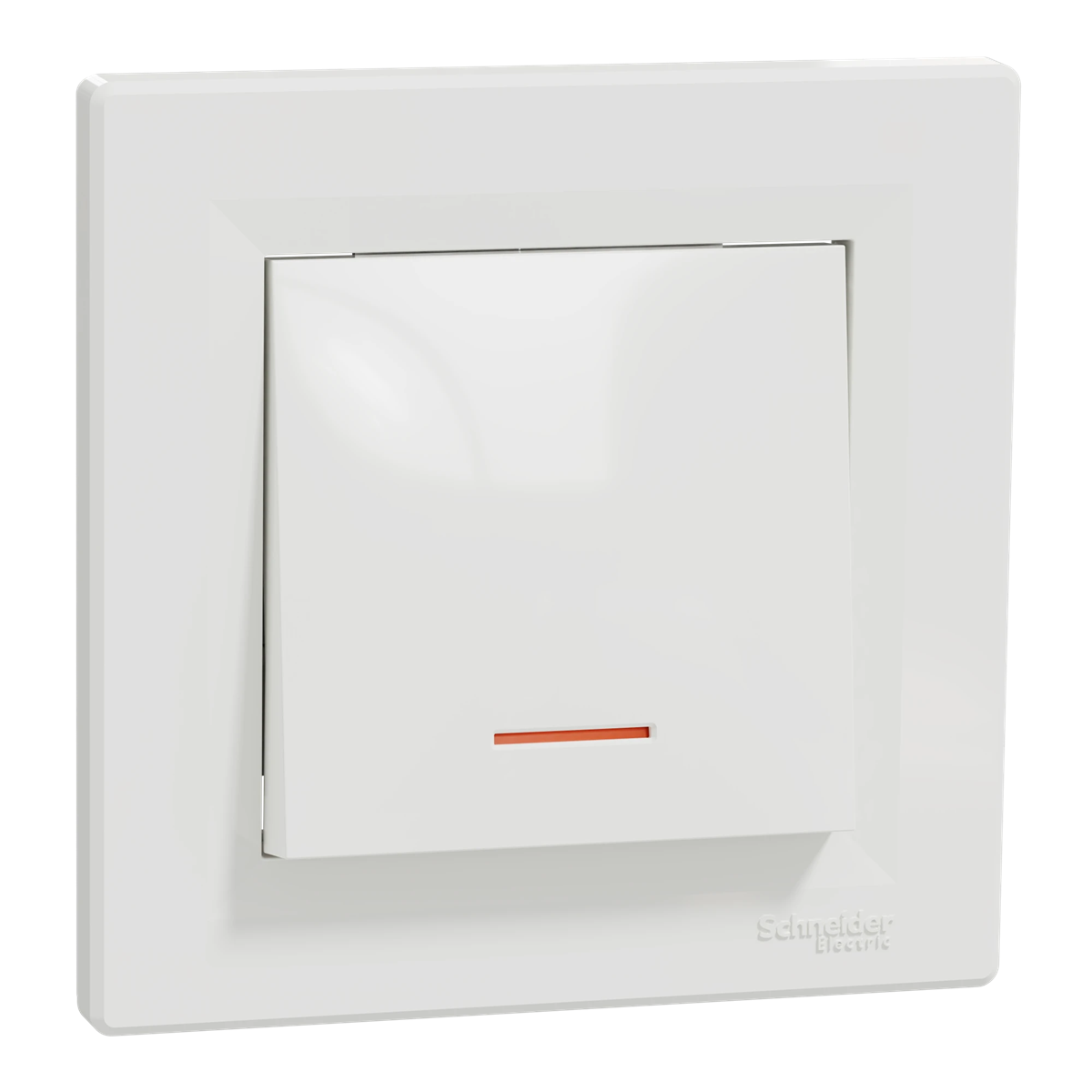

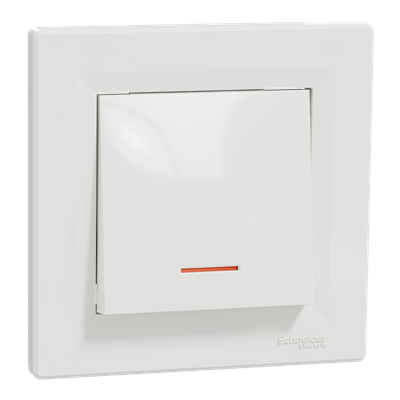

ASFORA 1-pole switch with white backlight EPH1400121

local index:
MMP024SCHN
Catalog No:
EPH1400121
EAN code:
3606480525605
Manufacturer: SCHNEIDER ELECTRIC
Depth [mm]: 43
Number of keys: 1
Color: White
Price:
5,77 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Single-pole switch with backlight,  Asfora series. Standard accessories used to turn on/off lighting.

  • Simple, quick assembly and disassembly of wires in the terminals.
  • Conical entries leading the wires to the terminals.
  • Long solid claws. Metal guides keep the claws in the right position.
  • Galvanized, solid mounting frame with cuts for easy positioning.
  • Clear diagram and terminal marking for easy connection.



SERIES DESCRIPTION

The Asfora series is high quality at an affordable price. The geometric shapes of the Asfora series products and the rich colors will match any interior and bring a unique atmosphere to it.

Asfora is characterized by classic shapes and 6 stylish colors, such as: white, cream, aluminium, bronze, anthracite and steel. Ease of assembly and a wide range of applications will meet the expectations of every user. Asfora switches and sockets are widely used in residential buildings, but also in public buildings, offices and hotels. Asfora is synonymous with high quality and product safety guarantees.

Technical data

  • Depth [mm]
    43
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    ASPHORA
  • Width [mm]
    83
  • Height [mm]
    83
  • Surface finish
    Shiny
  • Terminal type
    Threadless
  • Protrusion depth [mm]
    15
  • Backlight type
    Indicative LED
  • PKWIU
    27.33.11.0
  • Number of keys
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Single
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Power range [W]
    2300
  • Backlight
    Yes
  • For the frame system
    NO
  • Exact material
    ABS
  • Backlight color
    Red

Other technical data

  • Wiring system
    Off switch 1-pole
  • Assembly arrangement
    Basic element with complete housing
  • Number of rockers
    1
  • Type of fastening
    Mounting with claw and screw
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9003.0
  • Illumination
    Yes
  • Type of lighting
    LED not exchangeable
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    10 AX
  • Connection type
    Other
  • Device width
    83 mm
  • Device depth
    43.0 mm
  • Min. depth of built-in installation box
    40.0 mm
  • Method of operation
    Rocker/button
  • Push button switch
    No
  • Mounting method
    Flush-mounted
  • With mounting plate
    No
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    White
  • Label space/information surface
    No
  • Function lighting
    Orientation
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    10 A
  • Feedback-signal contact
    No
  • Washing machine switch
    No
  • Device height
    83 mm
  • Built-in depth
    28.0 mm
