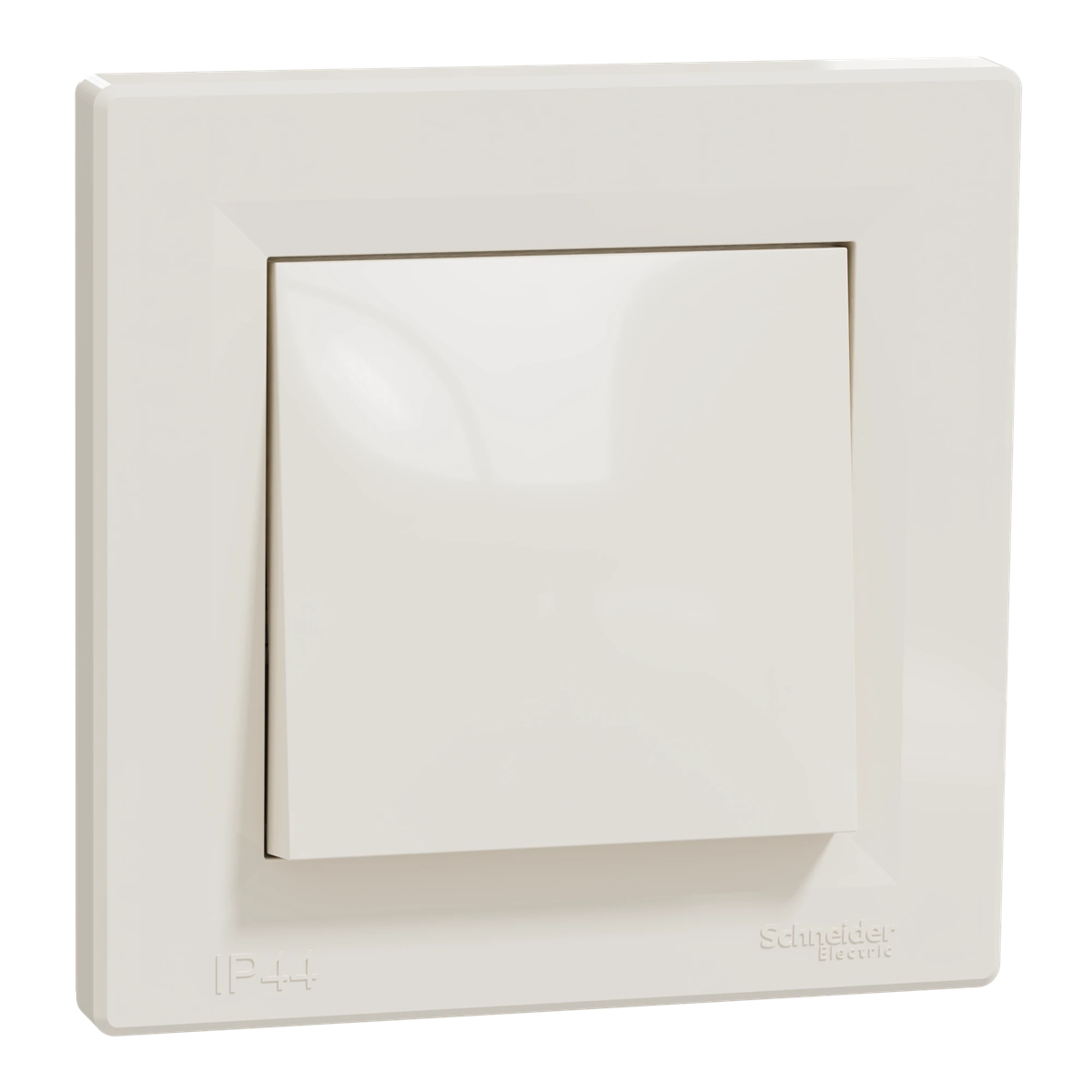

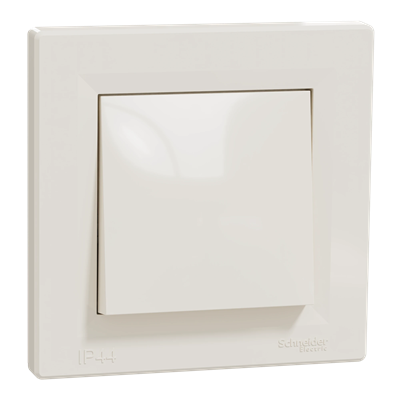

ASFORA 1-pole connector IP44 cream EPH0100223

Indice locale:
MMP012SCHN
Numero di catalogo:
EPH0100223
Codice EAN:
3606480524875
Depth [mm]: 43
Number of keys: 1
Color: Beige
Prezzo:
29,40 zł
gross / pezzi
(inclusa IVA 23%)
Esaurito
Aggiungi alla richiesta di preventivo
Stampa

Descrizione del prodotto

Single-pole switchwith increased degree of protection IP44, from  Asfora series. Splash-proof accessories for switching on/off lighting.

  • Simple, quick assembly and disassembly of wires in terminals.
  • Conical entries leading wires to terminals.< /li>
  • Long solid claws. Metal guides keep the claws in the right position.
  • Galvanized, solid mounting frame with cuts for easy positioning.
  • Clear diagram and terminal marking for easy connection.



SERIES DESCRIPTION

The Asfora series is high quality at an affordable price. The geometric shapes of the Asfora series products and the rich colors will match any interior and bring a unique atmosphere to it.

Asfora is characterized by classic shapes and 6 stylish colors, such as: white, cream, aluminium, bronze, anthracite and steel. Ease of assembly and a wide range of applications will meet the expectations of every user. Asfora switches and sockets are widely used in residential buildings, but also in public buildings, offices and hotels. Asfora is synonymous with high quality and product safety guarantees.

Dati tecnici

  • Depth [mm]
    43
  • Color
    Beige
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    ASPHORA
  • Width [mm]
    83
  • Height [mm]
    83
  • Surface finish
    Shiny
  • Backlight
    NO
  • For the frame system
    NO
  • Exact material
    ABS
  • Number of keys
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Single
  • Level of security
    IP44
  • Type
    Flush-mounted
  • Power range [W]
    2300
  • Accurate color
    Creamy
  • Terminal type
    Threadless
  • Protrusion depth [mm]
    15
  • PKWIU
    27.33.11.0

Altri dati tecnici

  • Wiring system
    Off switch 1-pole
  • Assembly arrangement
    Basic element with complete housing
  • Number of rockers
    1
  • Type of fastening
    Mounting with claw and screw
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    1013
  • Illumination
    No
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    10 AX
  • Connection type
    Other
  • Device width
    83 mm
  • Device depth
    43 mm
  • Min. depth of built-in installation box
    40 mm
  • Method of operation
    Rocker/button
  • Push button switch
    No
  • Mounting method
    Flush-mounted
  • With mounting plate
    No
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    Other
  • Label space/information surface
    No
  • Suitable for degree of protection (IP)
    IP44
  • Rated current
    10 A
  • Feedback-signal contact
    No
  • Washing machine switch
    No
  • Device height
    83 mm
  • Built-in depth
    28 mm
  • IFTTT support available
    No

Dettagli del produttore

  • Produttore
    Schneider Electric Polska
  • Indirizzo
    02-673 Warszawa Konstruktorska 12 Polska
