AS White double computer socket housing GPK-2GS/P/00

local index:
MAP017OSPE
Catalog No:
GPK-2GS/P/00
EAN code:
5907577454951
Manufacturer: OSPEL
Depth [mm]: 44
Number of sockets: 2
Color: White
Price:
2,53 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

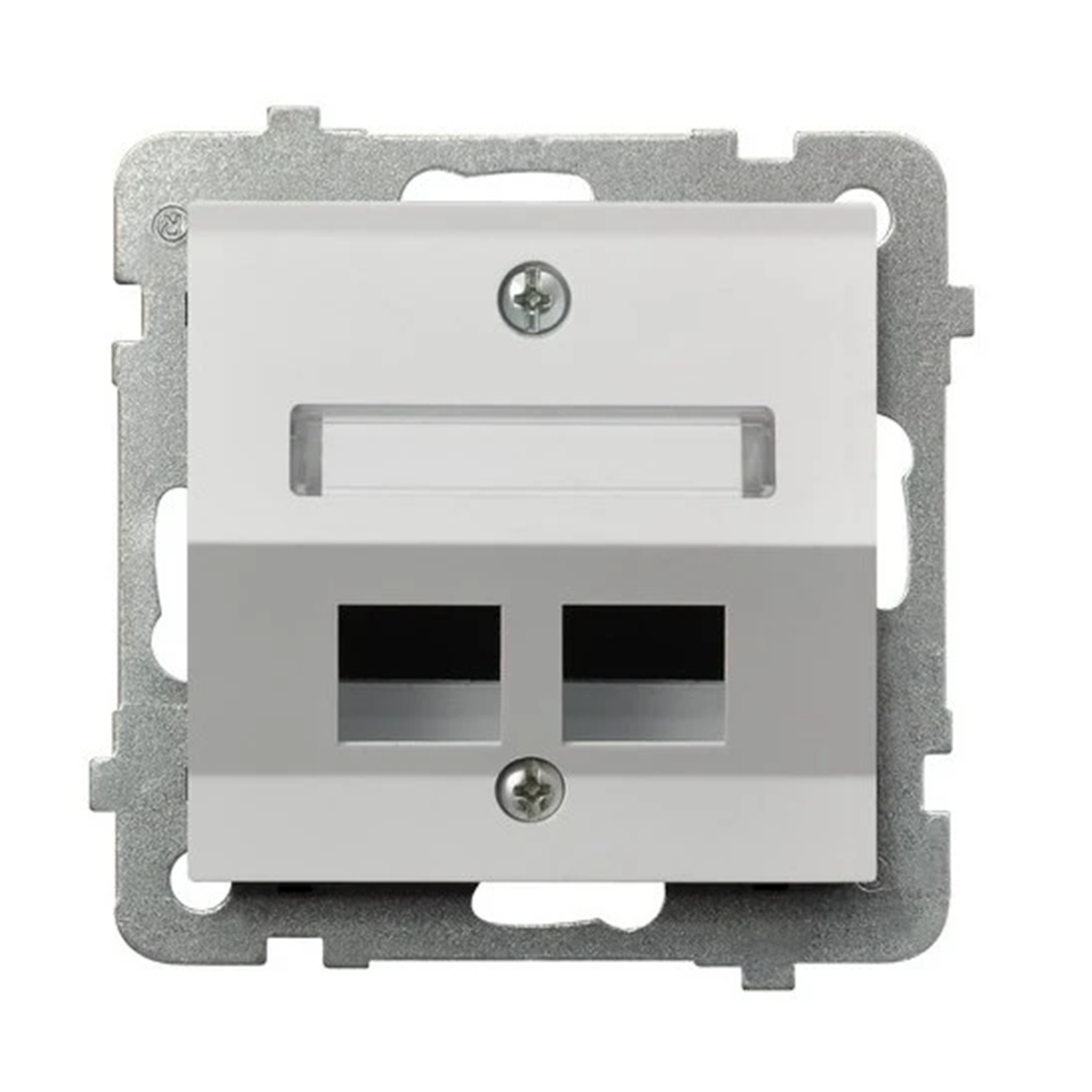

Keystone slanted double socket housing, from the As series, from the manufacturer Ospel. The product catalog number is GPK-2GS/P/00.



SERIES DESCRIPTION

products As they are distinguished by delicate curves of the frames.

Technical data

  • Depth [mm]
    44
  • Color
    White
  • Material
    Plastic
  • Descriptive field
    Yes
  • Family
    AS
  • Width [mm]
    71
  • Surface protection
    Natural
  • For modular equipment
    Not applicable
  • Number of sockets
    2
  • Shape
    Square
  • Fixing
    claws screws
  • Type
    To the internet socket To the telephone socket
  • Level of security
    IP20
  • Height [mm]
    71
  • Mounting depth [mm]
    21
  • PKWIU
    26.30.30.0

Other technical data

  • Assembly arrangement
    Basic element with complete housing
  • Support ring
    No
  • With hinged lid
    No
  • With imprint
    No
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9003
  • Type of fastening
    Mounting with claw and screw
  • With buses/couplings
    No
  • Shielded buses
    No
  • Luster terminal
    No
  • Device width
    75 mm
  • Device depth
    44 mm
  • Utilization
    USB
  • With dust cover
    No
  • Imprintable label
    Imprintable label snap-in in intermediate ring
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    White
  • Transparent
    No
  • Number of modules (module system)
    2
  • With strain relief
    No
  • Shielded housing
    No
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    75 mm
  • Min. depth of built-in installation box
    60 mm

Bulk packaging

A kind of package Pudełko
Quantity 1 pcs. 10 pcs.
Weight (kg) 0,055 -
Width (m) - 0,171
Length (m) - 0,342
Depth (m) - 0,088
