AS Universal dimmer for incandescent, incandescent and LED ecru loads ŁP-8GL2/M/27

Name: AS Universal dimmer for incandescent, incandescent and LED ecru loads
Brand: OSPEL
SKU: MMC008OSPE
Price: 212.41 PLN
Availability: BackOrder

Indice locale:

MMC008OSPE

Numero di catalogo:

ŁP-8GL2/M/27

Codice EAN:

5907577478582

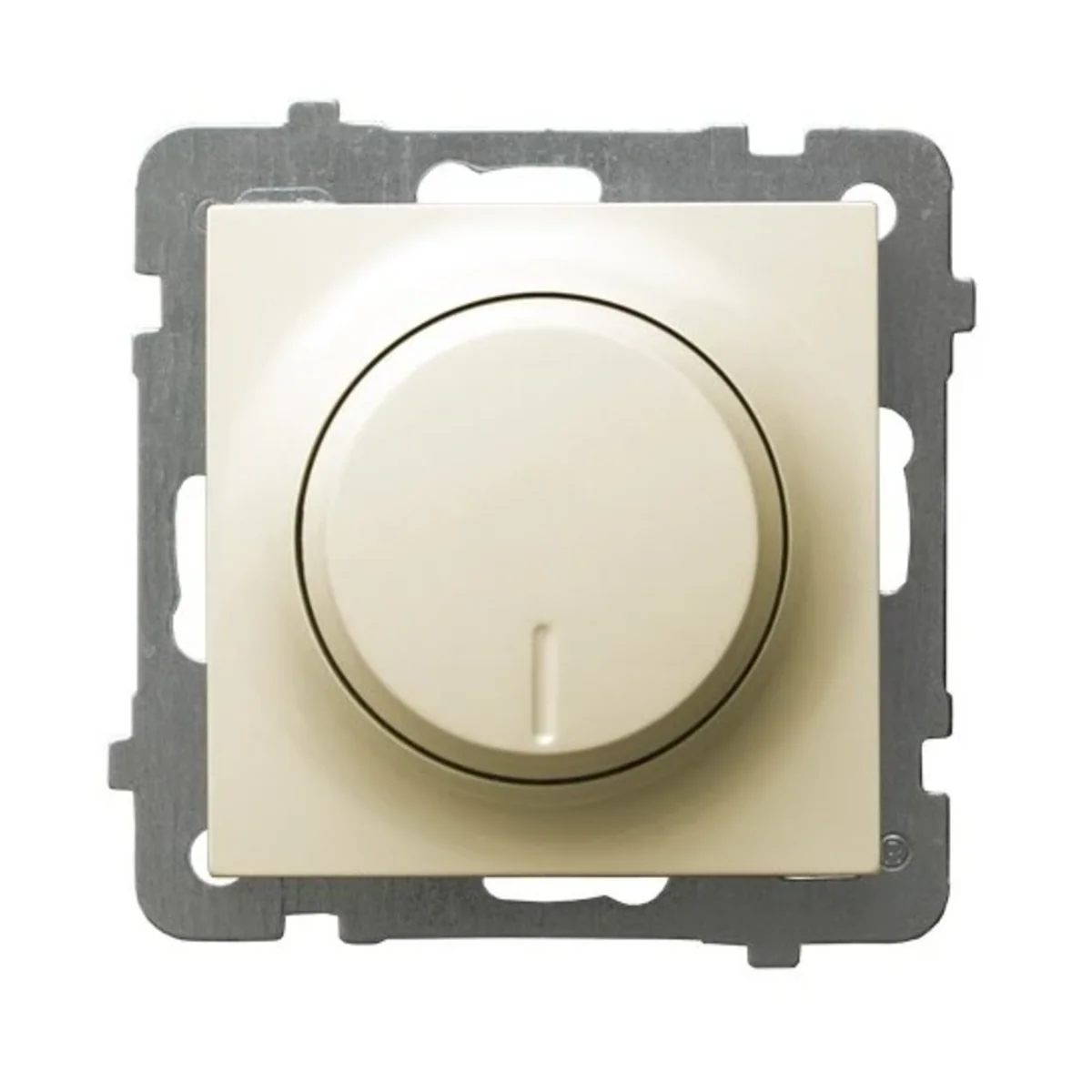

AS Universal dimmer for incandescent, incandescent and LED ecru loads

Clicca sulla foto per ingrandire

Produttore: OSPEL

Additional features: With the function of a stair switch

Depth [mm]: 51

Number of keys: Knob

Vedi la descrizione completa

Prezzo:

212,41 zł

gross / pezzi

(inclusa IVA 23%)

fino a 4 settimane

Su ordinazione

Quantità pezzi

(multiplo:

1

)

Aggiungi alla richiesta di preventivo

Aggiungi agli appunti

Stampa

Chiedi informazioni sul prodotto

Descrizione del prodotto Dati tecnici Dettagli del produttore Imballaggio sfuso File da scaricare

Descrizione del prodotto

Universal dimmer from the As series, from Ospel. The product catalog number is ŁP-8GL2/M/27.

FEATURES

Adjusted to incandescent load , halogen and LED.
Load power: GLS-10-250W CFL 5-75W LED 0-100W.
Time to bed function.

SERIES DESCRIPTION

The As series products stand out the delicate curves of the frames. Dimmer characterize the features of this unique series.

Dati tecnici

Additional features

With the function of a stair switch
Number of keys

Knob
Shape

Square
Fixing

claws screws
Type

dimmers
Level of security

IP20
Type

Flush-mounted
Height [mm]

71
Accurate color

Ecru
Mounting depth [mm]

thirty
Terminal type

Threaded
PKWIU

27.33.11.0

Depth [mm]

51
Color

Beige
Material

Plastic
Rated voltage [V]

230
Family

AS
Width [mm]

71
Version

For incandescent lighting For halogen lighting For LED
Surface protection

Natural
Backlight

NO
load power [W]

GLS: 10-250 CFL: 5-75 LED: 0-100
For the frame system

Yes

Altri dati tecnici

Assembly arrangement

Basic element with complete housing
Number of modules (module system)

1
Serial dimmer

Yes
Substation input

No
Applicable with button

Yes
Applicable with presence indicator

No
Applicable with transmission button

No
Mounting method

Flush-mounted
Material

Plastic
Halogen free

Yes
Surface finishing

Glossy
RAL-number (similar)

9003
Suitable for degree of protection (IP)

IP20
Nominal voltage

230 ... 230 V
Control voltage

230 ... 230 V
Device width

75 mm
Device depth

51 mm

Method of operation

Turn/push button
App control via Bluetooth

No
Type of load

Universal and LED Retrofit
Light value memory

Yes
Applicable with movement sensor

No
Applicable with time switch/timer

No
Applicable with infrared button

No
Type of fastening

Mounting with claw and screw
Material quality

Thermoplastic
Surface protection

Untreated
Colour

White
Transparent

No
Impact strength

IK03
Frequency

50 ... 50 Hz
Core cross section

1 ... 1.5 mm²
Device height

75 mm
Min. depth of built-in installation box

60 mm

Dettagli del produttore

Produttore

OSPEL S.A.
Indirizzo

42-436 Wierbka Główna 128 Polska
Email

ospel@ospel.com.pl

Imballaggio sfuso

Una specie di pacchetto	Pudełko
Quantità	5 pezzi
Larghezza (m)	0,710
Lunghezza (m)	0,710
Profondità (m)	0,310
