AS Two-pole switch with illumination, black metallic, without frame ŁP-11GS/M/33

Name: AS Two-pole switch with illumination, black metallic, without frame
Brand: OSPEL
SKU: MMD064OSPE
Price: 39.78 PLN
Availability: BackOrder

local index:

MMD064OSPE

Catalog number:

ŁP-11GS/M/33

EAN code:

5906729016610

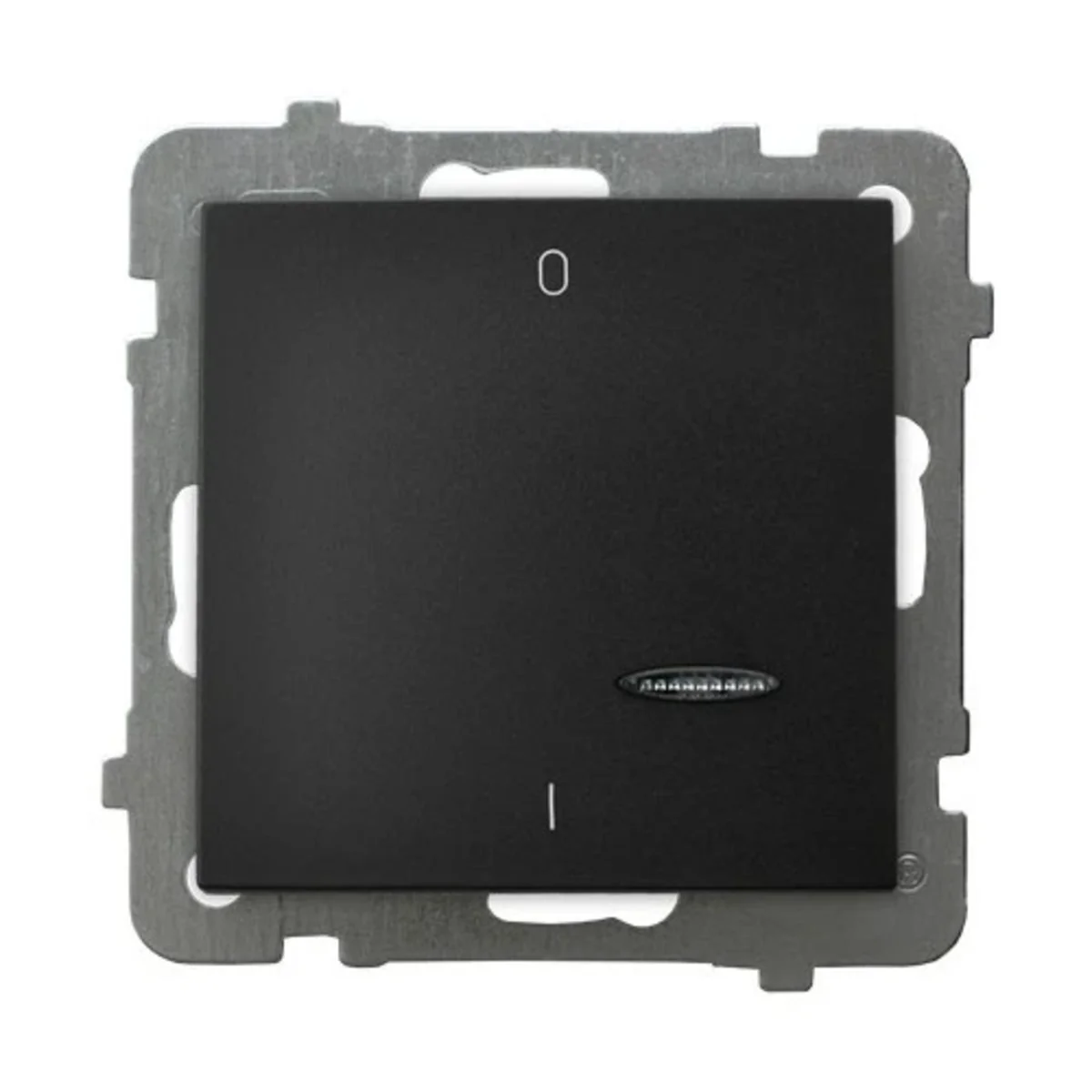

AS Two-pole switch with illumination, black metallic, without frame

Click on the photo to enlarge

Manufacturer: OSPEL

Depth [mm]: 40

Number of keys: 1

Color: Black

See full description

Price:

39,78 zł

gross / pcs.

(including VAT 23%)

up to a week

On request

Quantity pcs.

(multiplicity:

1

)

Add to inquiry

Add to clipboard

Print

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Double-pole switch with illumination from the As series, from the manufacturer Ospel.

SERIES DESCRIPTION

Products from the As series are distinguished by delicately curved frames.Double-pole switch characterizes the features of this unique series.

Technical data

Depth [mm]

40
Color

Black
Material

Plastic
Installation

Flush-mounted
Rated current [A]

10
Family

AS
Width [mm]

71
Height [mm]

71
Accurate color

Black metallic
Mounting depth [mm]

25
For the frame system

Yes
Backlight type

LTS lamp

Number of keys

1
Shape

Square
Fixing

claws screws
Rated voltage [V]

230
Type

Bipolar
Level of security

IP20
Type

Flush-mounted
Surface protection

varnishing
Backlight

Yes
Terminal type

Threaded
Exact material

Plastic Metal
Backlight color

Orange

Other technical data

Method of operation

Rocker/button
Number of modules (module system)

1
Type of fastening

Mounting with claw and screw
Material quality

Thermoplastic
Anti-bacterial treatment

No
Surface finishing

Matt
Label space/information surface

No
Type of lighting

Glow lamp
Nominal voltage

250 V
Heating switch

No
Device width

71 mm
Device depth

40 mm

Assembly arrangement

Basic element with complete housing
Mounting method

Flush-mounted
Material

Plastic
Halogen free

Yes
Surface protection

Lacquered
Colour

Black
Illumination

Yes
Suitable for degree of protection (IP)

IP20
Rated current

10 A
Washing machine switch

No
Device height

71 mm
Min. depth of built-in installation box

60 mm

Manufacturer details

Manufacturer

OSPEL S.A.
Address

42-436 Wierbka Główna 128 Polska
E-mail

ospel@ospel.com.pl

Bulk packaging

A kind of package	Pudełko
Quantity	4 pcs.
Width (m)	0,710
Length (m)	0,710
Depth (m)	0,250

Files to download

pl.pdf
