AS Two-pole switch with blue illumination silver ŁP-11GS/M/18

Índice local:

MMD006OSPE

Número de catálogo:

ŁP-11GS/M/18

Código EAN:

5907577475758

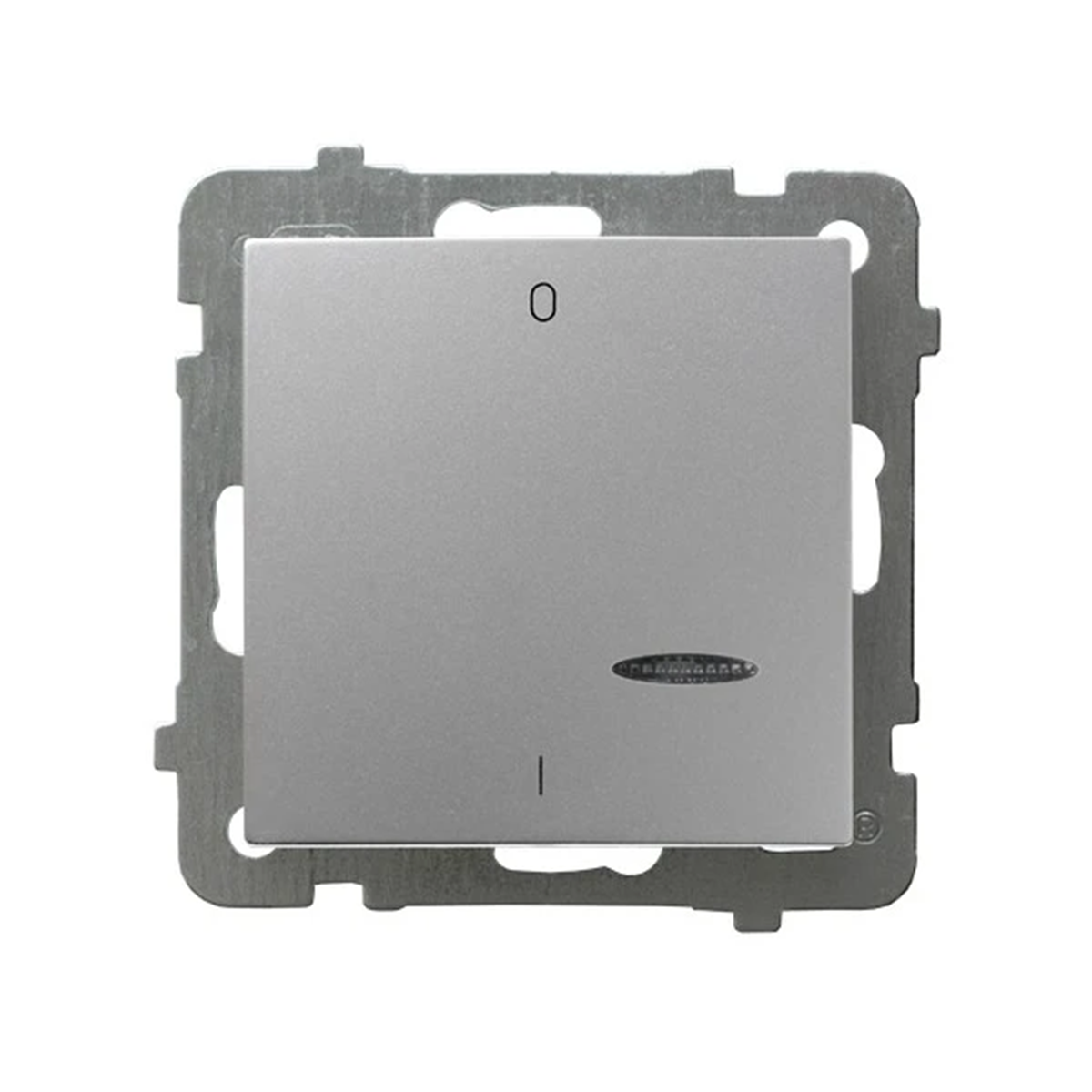

AS Two-pole switch with blue illumination silver

AS Two-pole switch with blue illumination silver

AS Two-pole switch with blue illumination silver

AS Two-pole switch with blue illumination silver

Haga clic en la foto para ampliar

Fabricante: OSPEL

Depth [mm]: 40

Number of keys: 1

Color: Silver

Ver descripción completa

Precio:

8,56 €

gross / uds.

(IVA incluido 23%)

Entrega en 3h

hasta 4 semanas (días laborables)

Recogida en 1h

Cantidad uds.

(múltiple:

1

)

Añadir al portapapeles

Imprimir

Pregunta por el producto

Descripción del producto Datos técnicos Detalles del fabricante Empaquetado a granel

Descripción del producto

Double-pole switch with backlight from the As series, from Ospel. The product catalog number is ŁP-11GS/M/18.

SERIES DESCRIPTION

Products from the As are distinguished by delicate curvatures of the frames.

Datos técnicos

Depth [mm]

40
Color

Silver
Material

Plastic
Installation

Flush-mounted
Rated current [A]

10
Family

AS
Width [mm]

71
Height [mm]

71
Backlight

Yes
Terminal type

Threaded
Exact material

Plastic Metal
Backlight color

Blue

Number of keys

1
Shape

Square
Fixing

claws screws
Rated voltage [V]

230
Type

Bipolar
Level of security

IP20
Type

Flush-mounted
Surface protection

varnishing
Mounting depth [mm]

25
For the frame system

Yes
Backlight type

LTS lamp
PKWIU

27.33.11.0

Otros datos técnicos

Wiring system

2-pole switch
Assembly arrangement

Basic element with complete housing
Push button switch

No
Mounting method

Flush-mounted
With mounting plate

No
Material quality

Thermoplastic
Surface protection

Lacquered
Colour

Silver
Label space/information surface

No
Function lighting

Orientation
Suitable for degree of protection (IP)

IP20
Rated current

16 A
Feedback-signal contact

No
Washing machine switch

No
Device height

75 mm
Built-in depth

25 mm

Method of operation

Rocker/button
Number of modules (module system)

1
Number of rockers

1
Type of fastening

Mounting with claw and screw
Material

Plastic
Halogen free

Yes
Surface finishing

Glossy
RAL-number (similar)

9006
Illumination

Yes
Type of lighting

Glow lamp
Nominal voltage

250 V
Switching current for fluorescent lamps

16 AX
Connection type

Push-in clamp
Device width

75 mm
Device depth

40 mm

Detalles del fabricante

Fabricante

OSPEL S.A.
Dirección

42-436 Wierbka Główna 128 Polska
Email

ospel@ospel.com.pl

Empaquetado a granel

una especie de paquete	Pudełko
Cantidad	4 uds.
Ancho (m)	0,140
Longitud (m)	0,162
Profundidad (m)	0,090
