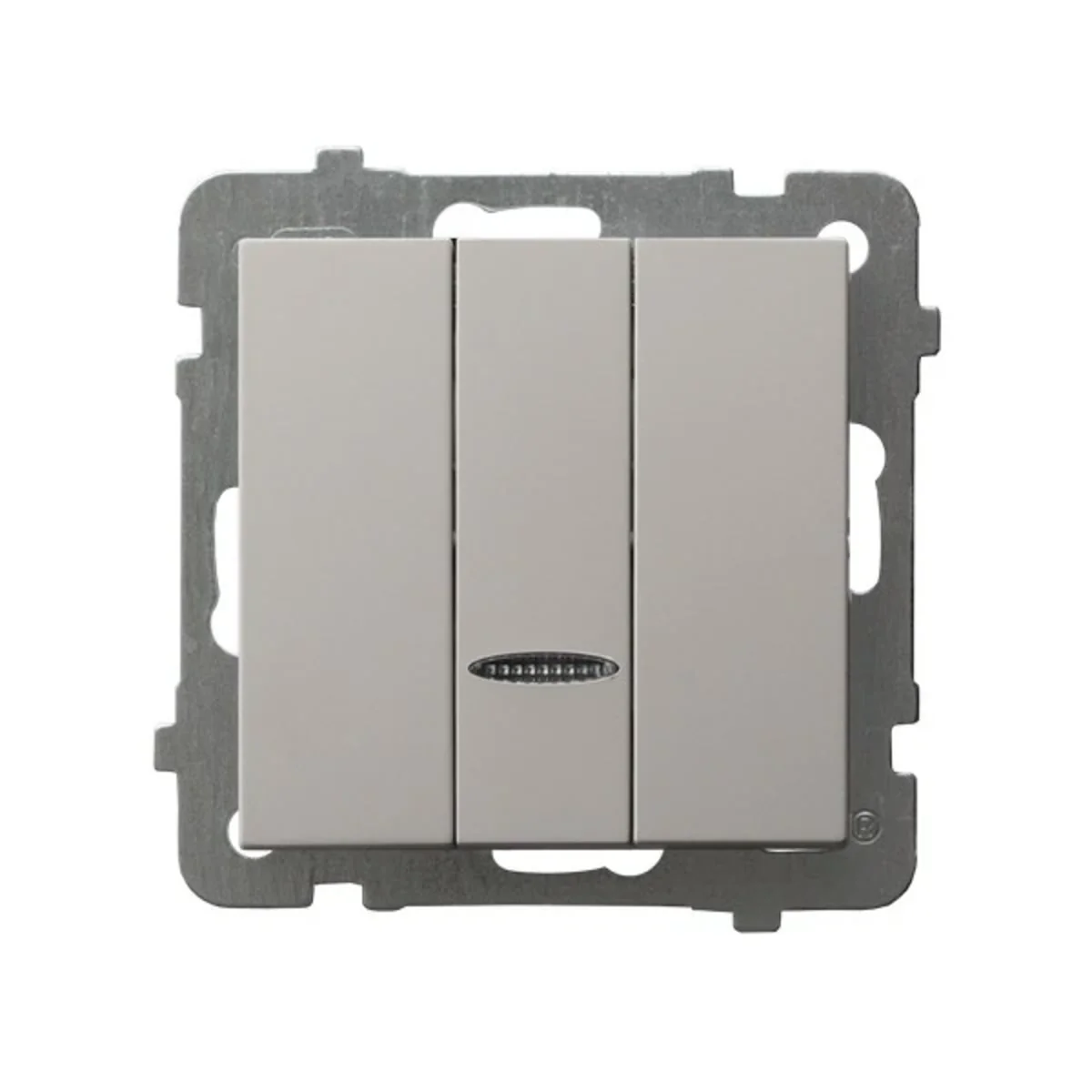

AS Triple switch with blue cashmere backlight ŁP-13GS/M/82

local index:
MMW050OSPE
Catalog number:
ŁP-13GS/M/82
EAN code:
5906729036915
Manufacturer: OSPEL
Depth [mm]: 40
Number of keys: 3
Color: Beige
Price:
54,59 zł
gross / pcs.
(including VAT 23%)
up to a week
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print

Product description

Triple switch with backlight from the As series, from the manufacturer Ospel.

SERIES DESCRIPTION

Products from the As series are distinguished by delicately curved frames.Triple switch characterizes the features of this unique series.

Technical data

  • Depth [mm]
    40
  • Color
    Beige
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    AS
  • Width [mm]
    71
  • Height [mm]
    71
  • Accurate color
    Cashmere
  • Mounting depth [mm]
    25
  • Exact material
    Plastic Metal
  • Backlight color
    Blue
  • Number of keys
    3
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Multi-key
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Backlight
    Yes
  • For the frame system
    Yes
  • Backlight type
    LTS lamp

Other technical data

  • Wiring system
    3-pole switch
  • Assembly arrangement
    Basic element with complete housing
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface protection
    Lacquered
  • Colour
    Other
  • Type of lighting
    Glow lamp
  • Nominal voltage
    250 V
  • Heating switch
    No
  • Device width
    71 mm
  • Device depth
    40 mm
  • Min. depth of built-in installation box
    60 mm
  • Method of operation
    Rocker/button
  • Number of modules (module system)
    1
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • Anti-bacterial treatment
    No
  • Surface finishing
    Matt
  • Illumination
    Yes
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    10 A
  • Washing machine switch
    No
  • Device height
    71 mm
  • Built-in depth
    25 mm

Manufacturer details

  • Manufacturer
    OSPEL S.A.
  • Address
    42-436 Wierbka Główna 128 Polska

Bulk packaging

A kind of package Pudełko
Quantity 4 pcs.
Width (m) 0,710
Length (m) 0,710
Depth (m) 0,250
