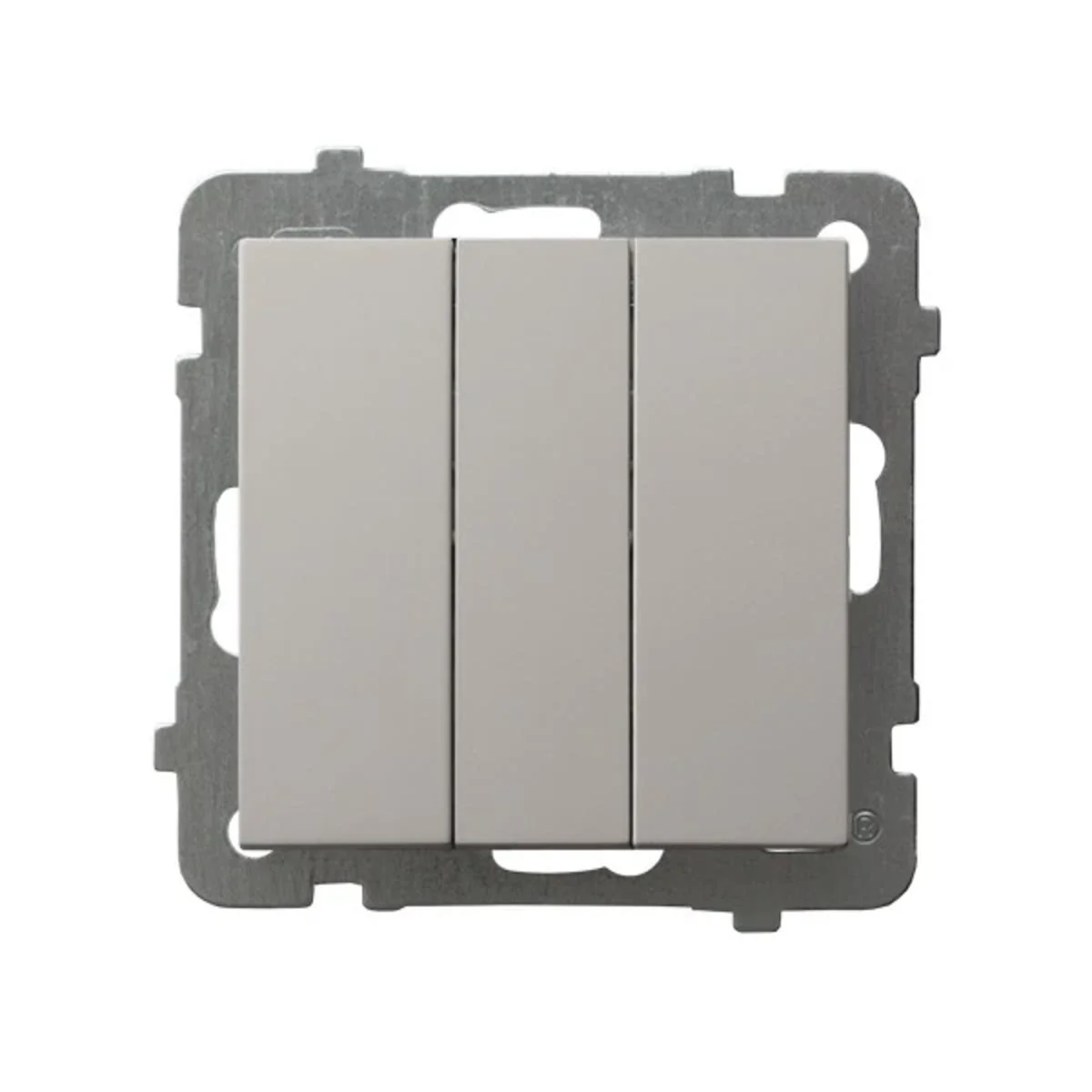

AS Triple connector, normally closed, cashmere ŁP-24G/M/82

Índice local:
MMZ201OSPE
Número de catálogo:
ŁP-24G/M/82
Código EAN:
5906729037646
Fabricante: OSPEL
Depth [mm]: 40
Number of keys: 3
Color: Beige
Precio:
50,25 zł
gross / uds.
(IVA incluido 23%)
hasta una semana
Por encargo
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir

Descripción del producto

Triple normally open switch from the As series, from the manufacturer Ospel.

FEATURES

  • To be equipped with a frame.
  • To obtain an IP44 splash-proof class, use a sealing kit for IP44 switches.

SERIES DESCRIPTION

The As series is a geometric form broken by the delicate curves of the frames. It is a combination of dynamic design and neutral colors that will work in any interior. The highest quality materials and timeless design have allowed us to create a product that will adorn your interior for many years.

As  ...

Datos técnicos

  • Depth [mm]
    40
  • Color
    Beige
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    AS
  • Width [mm]
    71
  • Version
    Confident
  • Surface protection
    varnishing
  • Backlight
    NO
  • Terminal type
    Threaded
  • For the frame system
    Yes
  • Number of keys
    3
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Accurate color
    Cashmere
  • Mounting depth [mm]
    25
  • Variant
    Ordinary
  • Exact material
    Plastic Metal

Otros datos técnicos

  • Wiring system
    3-pole switch
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • Anti-bacterial treatment
    No
  • Surface finishing
    Matt
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    10 A
  • Device height
    71 mm
  • Built-in depth
    25 mm
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface protection
    Lacquered
  • Colour
    Other
  • Nominal voltage
    250 V
  • Device width
    71 mm
  • Device depth
    40 mm
  • Min. depth of built-in installation box
    60 mm

Detalles del fabricante

  • Fabricante
    OSPEL S.A.
  • Dirección
    42-436 Wierbka Główna 128 Polska

Empaquetado a granel

una especie de paquete Pudełko
Cantidad 4 uds.
Ancho (m) 0,710
Longitud (m) 0,710
Profundidad (m) 0,250
