AS Terminal socket RTV-SAT cashmere GPA-GS/M/82

Index local:
MEA417OSPE
Numéro de catalogue:
GPA-GS/M/82
Code EAN:
5906729037189
Producteur: OSPEL
Depth [mm]: 34
Number of sockets: 3
Color: Beige
Prix:
84,51 zł
gross / pcs.
(y compris la TVA 23%)
jusqu'à une semaine
Sur commande
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

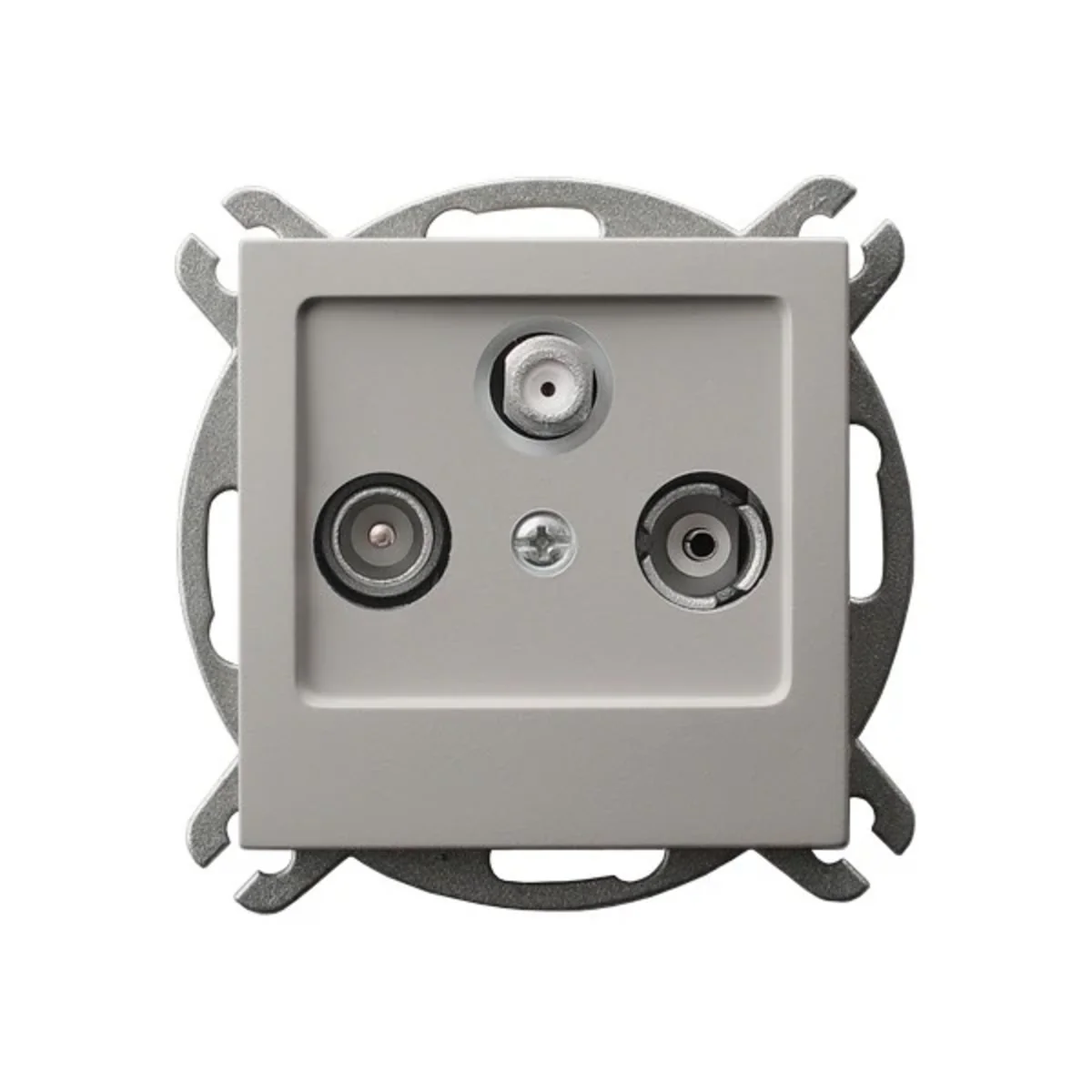

Terminal RTV-SAT antenna socket. It is designed for parallel installation, with an independent cable from the antenna running to each receiver.

SERIES DESCRIPTION

The As series features a geometric form broken by the delicate curves of the frames. It combines dynamic design with neutral colors to complement any interior. The highest quality materials and timeless design have allowed us to create a product that will adorn your interior for many years.

As is the perfect solution for those who value true classics. Both the main elements and the complementary frames are based on a square with sharp corners. The angles are sharp, perfectly reflecting the geometric trend in interior design. In the case of elements with additional backlighting, small details become a strong and expressive accent. This is a collection for the decisive, so the color options are also limited and strongly correspond to the classic style.

Données techniques

  • Depth [mm]
    34
  • Color
    Beige
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Antenna
  • Level of security
    IP20
  • Attenuation [dB]
    R: 1.5 TV: 1-1.5 SAT: 1.5-2
  • Version
    Final
  • Surface protection
    varnishing
  • Accurate color
    Cashmere
  • Mounting depth [mm]
    24
  • Variant
    R TV sat
  • For the frame system
    Yes
  • Number of sockets
    3
  • Shape
    Square
  • Fixing
    claws screws
  • Overprint
    NO
  • Family
    AS
  • Width [mm]
    71
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Frequency Range [MHz]
    For output R: 88 For entry: 5-2400
  • Backlight
    NO
  • Terminal type
    Threaded
  • F-type input
    NO
  • Exact material
    Plastic Metal

Autres données techniques

  • Model
    Other
  • Number of modules (module system)
    1
  • Suitable for remote power supply
    No
  • Colour
    Other
  • Surface finishing
    Matt
  • Material quality
    Thermoplastic
  • Anti-bacterial treatment
    No
  • Device width
    71 mm
  • Device depth
    34 mm
  • Mounting method
    Flush-mounted
  • Assembly arrangement
    Basic element with complete housing
  • Type of fastening
    Mounting with claw and screw
  • Surface protection
    Lacquered
  • Material
    Plastic
  • Halogen free
    Yes
  • Degree of protection (IP)
    IP20
  • Device height
    71 mm
  • Min. depth of built-in installation box
    60 mm

Détails du fabricant

  • Producteur
    OSPEL S.A.
  • Adresse
    42-436 Wierbka Główna 128 Polska

Emballage en vrac

Une sorte de paquet Pudełko
Quantité 4 pcs.
Largeur (m) 0,710
Longueur (m) 0,710
Profondeur (m) 0,240
