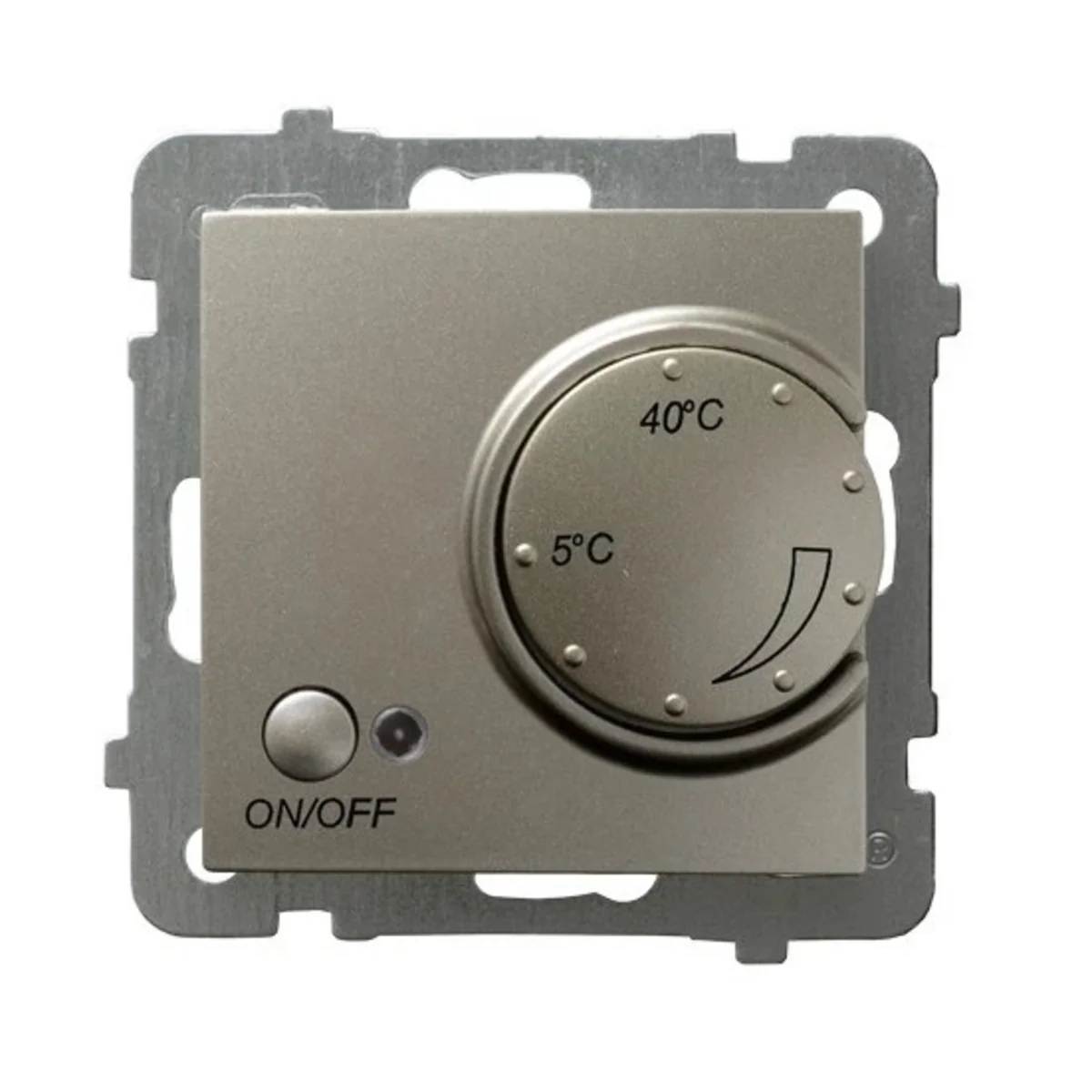

AS Temperature regulator with underfloor sensor satin light RTP-1G/M/45

local index:
MWT013OSPE
Catalog No:
RTP-1G/M/45
EAN code:
5907577477219
Manufacturer: OSPEL
Color: Silver
Material: Plastic
Fixing: Thread clamps
Price:
99,95 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The temperature controller with an underfloor sensor is designed to regulate the temperature in a room with electric or water underfloor heating. As standard, the regulator is equipped with an underfloor temperature sensor.

The As series is a geometric form broken by delicate curves of the frames. It is a combination of dynamic design with neutral colors that will work in any interior. High-quality materials, timeless design and affordable price allowed us to create a product that will decorate your interiors for many years.

Technical data

  • Color
    Silver
  • Fixing
    Thread clamps
  • Rated voltage [V]
    230
  • Frame
    Lack
  • Level of security
    IP20
  • Accurate color
    light satin
  • PKWIU
    27.33.13.0
  • Material
    Plastic
  • Installation
    Flush-mounted
  • highlighting
    NO
  • Family
    AS
  • Dimensions [mm]
    84 x 84
  • Load [W]
    incandescent: 3200W, induction: 750W

Other technical data

  • Model
    Other
  • With receiver
    No
  • Thermal feedback
    Series
  • Suitable for heating
    Yes
  • Number of cooler outputs
    0
  • Adjustable differential
    No
  • With sound indicator
    No
  • Mounting method
    Flush-mounted
  • With display
    No
  • With tap water circuit
    No
  • Max. contact load
    10 A
  • Degree of protection (NEMA)
    Other
  • Colour
    Other
  • Height
    75 mm
  • Depth
    54 mm
  • Standby power consumption (solstandby)
    0.5 W
  • Type of power supply
    230 V AC
  • External sensor
    Yes
  • Control characteristic
    Other
  • Number of heater outputs
    1
  • Differential value
    0 ... 0.5 K
  • Temperature readable
    No
  • Sensor/feeler type
    Resistance sensor
  • Number of modules (module system)
    1
  • Operation
    Button
  • Max. contact voltage
    230 V
  • Degree of protection (IP)
    IP20
  • Explosion-proof
    No
  • RAL-number
    1035
  • Width
    75 mm
  • Class of the temperature control
    V

Bulk packaging

A kind of package Pudełko
Quantity 5 pcs.
Width (m) 0,171
Length (m) 0,342
Depth (m) 0,088
