AS Staircase switch + single pole black metallic without frame ŁP-9G/M/33

Índice local:
MMS171OSPE
Número de catálogo:
ŁP-9G/M/33
Código EAN:
5906729016634
Fabricante: OSPEL
Additional features: Integrated with unipolar
Depth [mm]: 40
Number of keys: 2
Precio:
37,23 zł
gross / uds.
(IVA incluido 23%)
hasta una semana
Por encargo
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir

Descripción del producto

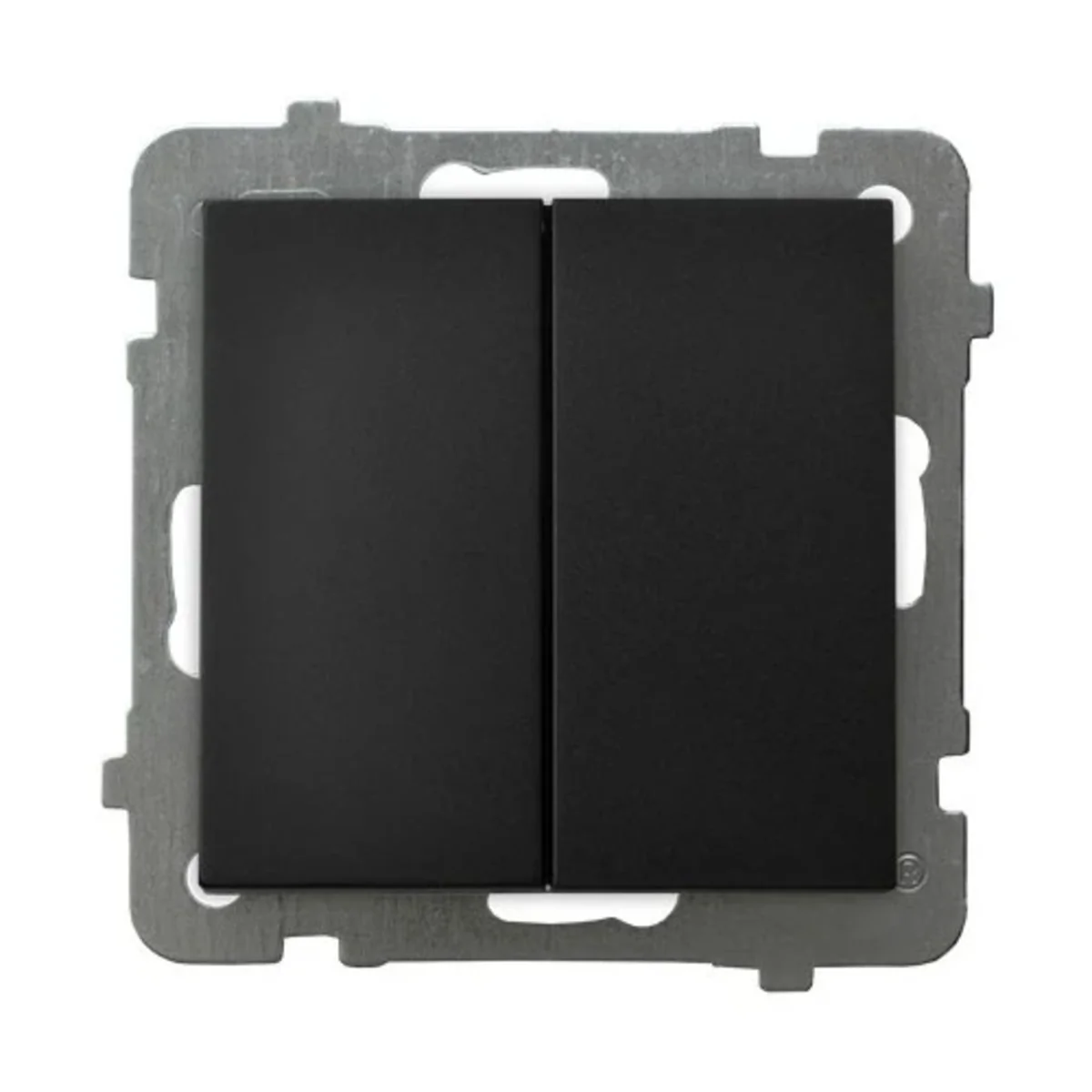

Single pole stair switch from the As series, from the manufacturer Ospel.

FEATURES

  • Double; one button works as a two-way switch, the other as a single-pole switch.
  • Module without frame.
  • Threaded terminals.
  • Rated current10AX.
  • Rated voltage230V.
  • Flush mounting.
  • Protection degreeIP20.
  • Dimensions: 71 x 71 mm (height x width).

SERIES DESCRIPTION

The As series is a geometric form broken with delicate The curves of the frames. This is a combination of dynamic design and neutral colors that will work well in any interior. The highest quality materials and timeless design have allowed us to create a product that will decorate your interior for many years.

As the perfect solution for those who appreciate true classics. Both the main elements and the complementary frames are based on a square with strongly defined corners. The angles are sharp, perfectly reflecting the geometric trend in interior design. In the case of elements with additional backlighting, small details become a strong and expressive accent. This is a collection for the decisive, so the color options are also limited and strongly correspond to the classic style.

Datos técnicos

  • Additional features
    Integrated with unipolar
  • Number of keys
    2
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    stairs
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Backlight
    NO
  • Terminal type
    Threaded
  • Exact material
    Plastic Metal
  • Depth [mm]
    40
  • Color
    Black
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    AS
  • Width [mm]
    71
  • Height [mm]
    71
  • Accurate color
    Black metallic
  • Mounting depth [mm]
    25
  • For the frame system
    Yes

Otros datos técnicos

  • Wiring system
    Other
  • Assembly arrangement
    Basic element with complete housing
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Anti-bacterial treatment
    No
  • Surface finishing
    Matt
  • RAL-number (similar)
    9003
  • Nominal voltage
    250 V
  • Device width
    71 mm
  • Device depth
    40 mm
  • Min. depth of built-in installation box
    60 mm
  • Compatible with Google Assistant
    No
  • IFTTT support available
    No
  • Method of operation
    Rocker/button
  • Number of modules (module system)
    1
  • Type of fastening
    Mounting with claw and screw
  • Halogen free
    Yes
  • Surface protection
    Lacquered
  • Colour
    Black
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    10 A
  • Device height
    71 mm
  • Built-in depth
    25 mm
  • Compatible with Apple HomeKit
    No
  • Compatible with Amazon Alexa
    No

Detalles del fabricante

  • Fabricante
    OSPEL S.A.
  • Dirección
    42-436 Wierbka Główna 128 Polska

Empaquetado a granel

una especie de paquete Pudełko
Cantidad 4 uds.
Ancho (m) 0,710
Longitud (m) 0,710
Profundidad (m) 0,250
