AS Single speaker socket, matt green GG-1G/M/84
Index local:
MEG084OSPE
Numéro de catalogue:
GG-1G/M/84
Code EAN:
5906729038278
Prix:
37,13 zł
gross / pcs.
(y compris la TVA 23%)
Sur commande
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer
Renseignez-vous sur le produit
Description du produit

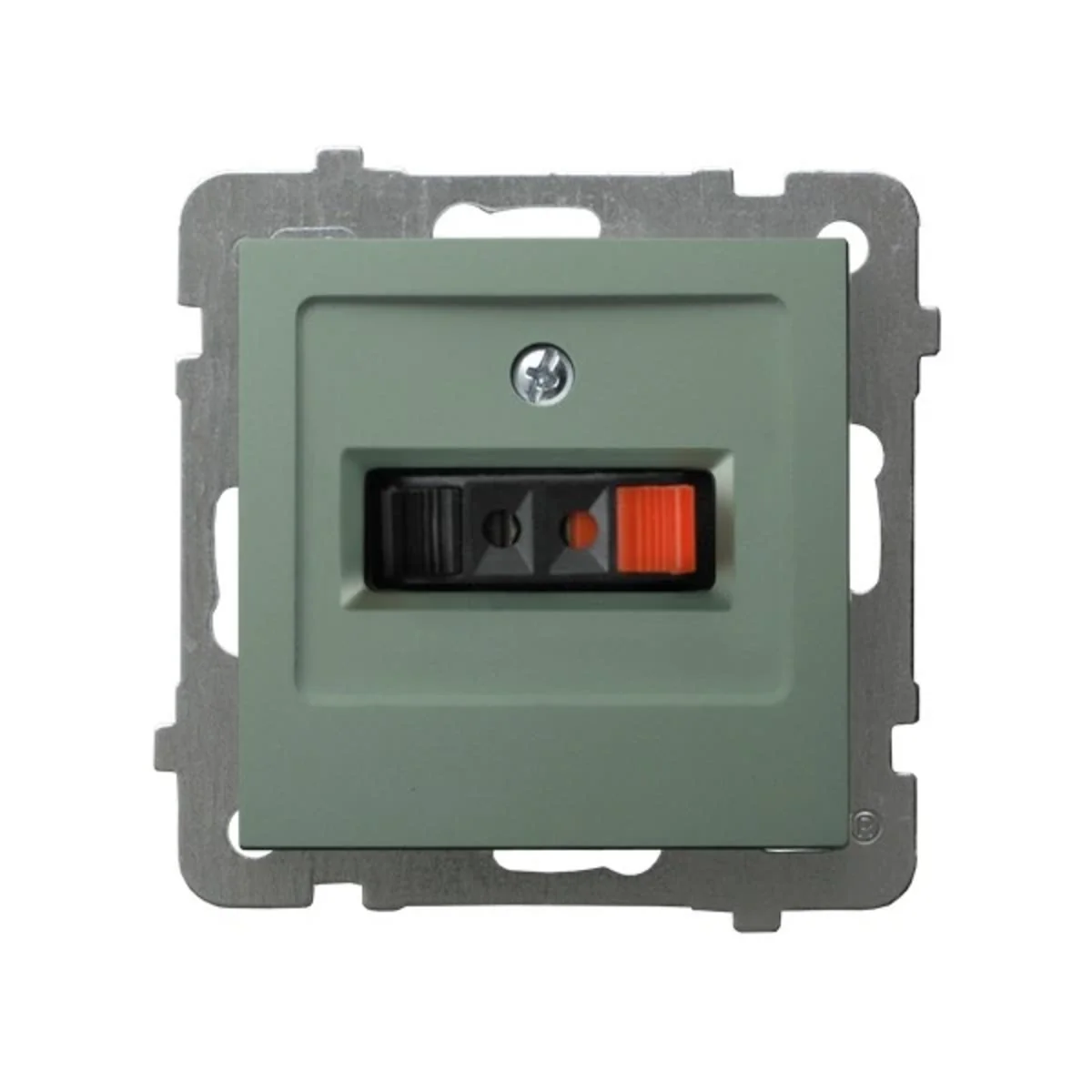

Speaker socket from the As series, from the manufacturer Ospel.FEATURES
.
SERIES DESCRIPTION
The As series is a geometric form broken by the delicate curves of the frames. This combination of dynamic design and neutral colors will complement any interior. The sharp angles perfectly reflect the geometric trend in interior design. The speaker socket has all the features of this unique series.
Données techniques
-
Depth [mm]40
-
ColorGreen
-
MaterialPlastic
-
InstallationFlush-mounted
-
FamilyAS
-
Width [mm]71
-
Height [mm]71
-
Accurate colorMatte green
-
Mounting depth [mm]22
-
VariantPin-type plugs
-
Exact materialPlastic Metal
-
Number of sockets1
-
ShapeSquare
-
Fixingclaws screws
-
Typespeaker
-
Level of securityIP20
-
TypeFlush-mounted
-
Surface protectionvarnishing
-
BacklightNO
-
Terminal typeFor soldering
-
For the frame systemYes
Autres données techniques
-
Surface mountingNo
-
Duct installationNo
-
Type of fasteningScrewing
-
Type of connectorOther
-
Suitable for number of connectors1
-
ColourGreen
-
Shielded busesNo
-
Separate earthing connectionNo
-
Compatible with third-party coversNo
-
Mounting method shielding connectionNone
-
With dust coverNo
-
Degree of protection (IP)IP20
-
Colour codingNo
-
Device height71 mm
-
Number of modules (module system)1
-
Flush-mounted installationYes
-
Floor box/subfloor mountedNo
-
Assembly arrangementBasic element with complete housing
-
With buses/couplingsYes
-
CategoryOther
-
Connection typeOther
-
Shielded housingNo
-
With label spaceYes
-
Separate strain reliefNo
-
Outlet directionStraight
-
With terminal resistorNo
-
Mechanical codingNo
-
Device width71 mm
-
Device depth40 mm
Détails du fabricant
-
ProducteurOSPEL S.A.
-
Adresse42-436 Wierbka Główna 128 Polska
-
E-mail
Emballage en vrac
| Une sorte de paquet | Pudełko |
| Quantité | 4 pcs. |
| Largeur (m) | 0,710 |
| Longueur (m) | 0,710 |
| Profondeur (m) | 0,220 |
