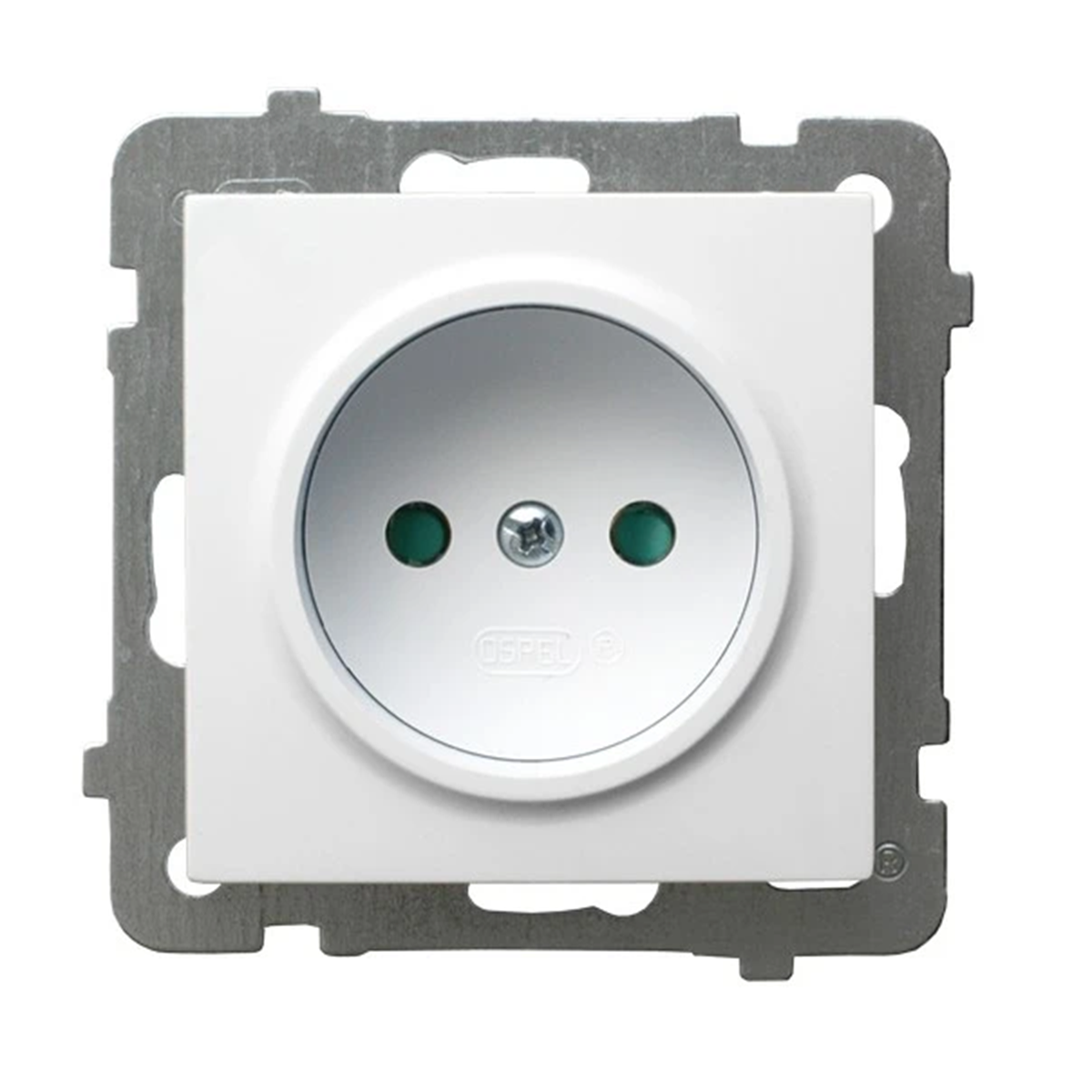

AS Single socket, with shutters, white GP-1GP/M/00

Indice locale:
MEE472OSPE
Numero di catalogo:
GP-1GP/M/00
Codice EAN:
5907577451288
Produttore: OSPEL
Depth [mm]: 39
Number of sockets: 1
Color: White
Prezzo:
3,49 €
gross / pezzi
(inclusa IVA 23%)
Consegna in 3 ore
fino a 2 settimane (giorni lavorativi)
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi agli appunti
Stampa

Descrizione del prodotto

Electric socket from the As series, from the manufacturer Ospel. The product part number is GP-1GP/M/00.



FEATURES

  • Single.
  • Ungrounded.
  • Thread terminals.
  • To be equipped with frame .
  • With shutters for current paths.
  • Color white.
  • Rated current 16A.
  • Rated voltage 230V.
  • Ingress protection IP20.
  • Installation flush.
  • Dimensions: 71 x 71 mm (height x width).



SERIES DESCRIPTION

The As  series is a geometric form broken with delicate curvatures of frames. It is a combination of dynamic design with neutral colors that will work in any interior. The highest quality materials and timeless design allowed us to create a product that will decorate your interiors for many years.

As an ideal solution for people who value true classics. Both the main elements and the supplementary frames are based on a square with strongly outlined corners. The angles are sharp, perfectly reflecting the geometric trend in interior design. In the case of elements with additional backlighting, small details become a strong and expressive accent. This is a collection for the determined, which is why the color options are also limited and strongly correspond to the classics.

Dati tecnici

  • Depth [mm]
    39
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    AS
  • Width [mm]
    71
  • Ground
    Lack
  • Surface protection
    Natural
  • Mounting depth [mm]
    26
  • Standard
    European
  • On the DATA key
    NO
  • Exact material
    Plastic Metal
  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Backlight
    NO
  • Terminal type
    Threaded
  • Shutters of current paths
    Yes
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0

Altri dati tecnici

  • Model
    Multi-standard socket
  • Okrągły styk ochronny
    No
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    No
  • Number of modules (module system)
    1
  • Connection type
    Screwed terminal
  • With enhanced contact protection
    Yes
  • Colour
    White
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • With on/off switch
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Impact strength
    IK03
  • Device height
    75 mm
  • Protective contact
    No
  • Number of active contacts (round)
    0
  • With signal lamp
    No
  • Number of units
    1
  • Number of socket outlets switchable
    0
  • With hinged lid
    No
  • Label space/information surface
    No
  • RAL-number (similar)
    9003
  • Lockable
    No
  • Insulated mounting
    No
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • With loop through function
    No
  • Nominal current
    16 A
  • Frequency
    0 ... 0 Hz
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    75 mm
  • Device depth
    37 mm

Dettagli del produttore

  • Produttore
    OSPEL S.A.
  • Indirizzo
    42-436 Wierbka Główna 128 Polska

Imballaggio sfuso

Una specie di pacchetto Pudełko
Quantità 10 pezzi
Larghezza (m) 0,162
Lunghezza (m) 0,237
Profondità (m) 0,090
