AS Single socket with grounding DATA green GP-1GZD/M/12

Index local:
MEE756OSPE
Numéro de catalogue:
GP-1GZD/M/12
Code EAN:
5907577494407
Producteur: OSPEL
Depth [mm]: 39
Number of sockets: 1
Color: Green
Prix:
19,46 zł
gross / pcs.
(y compris la TVA 23%)
jusqu'à une semaine
Sur commande
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

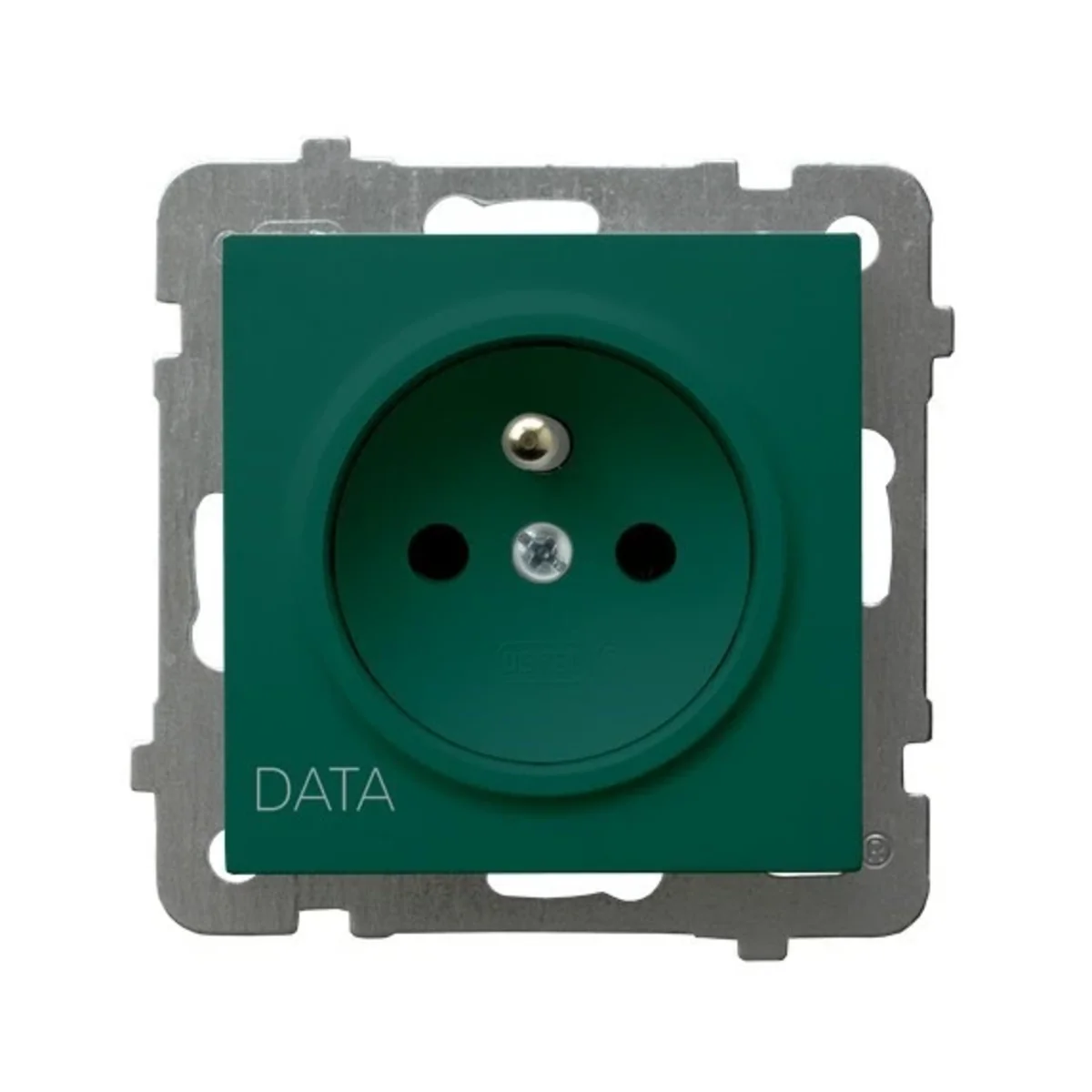

Electrical socket from the As series, from the manufacturer Ospel.

FEATURES

  • Single.
  • With grounding.
  • DATA.
  • Thread terminals.
  • To be equipped with a frame.
  • Rated current 16A.
  • Rated voltage 230V.
  • Protection degree IP20.
  • Flush mounting.
  • Dimensions: 71 x 71 mm (height x depth) width).

SERIES DESCRIPTION

The As series is a geometric form broken by the delicate curves of the frames. It is a combination of dynamic design and neutral colors that will work well in any interior. The highest quality materials and timeless design have allowed us to create a product that will decorate your interior for many years.

As is the perfect solution for those who appreciate true classics. Both the main elements and the complementary frames are based on a square with strongly defined corners. The angles are sharp, perfectly reflecting the geometric trend in interior design. In the case of elements with additional lighting, small details become a strong and expressive accent. This is a collection for the determined, which is why the color options are limited and strongly correspond to the classics.

Données techniques

  • Depth [mm]
    39
  • Color
    Green
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Backlight
    NO
  • Terminal type
    Threaded
  • Shutters of current paths
    NO
  • For the frame system
    Yes
  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Overprint
    DATE
  • Rated current [A]
    16
  • Family
    AS
  • Width [mm]
    71
  • Ground
    Hurt
  • Surface protection
    Natural
  • Mounting depth [mm]
    26
  • Standard
    European
  • On the DATA key
    Yes
  • Exact material
    Plastic Metal

Autres données techniques

  • Model
    Multi-standard socket
  • With signal lamp
    No
  • With hinged lid
    No
  • Label space/information surface
    No
  • Eject-mechanism
    No
  • With orientation lighting
    No
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Anti-bacterial treatment
    No
  • With on/off switch
    No
  • Nominal current
    16 A
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    71 mm
  • Min. depth of built-in installation box
    60 mm
  • Number of active contacts (round)
    1
  • Number of modules (module system)
    1
  • With enhanced contact protection
    No
  • Lockable
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • With loop through function
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Device width
    71 mm
  • Device depth
    39 mm

Détails du fabricant

  • Producteur
    OSPEL S.A.
  • Adresse
    42-436 Wierbka Główna 128 Polska

Emballage en vrac

Une sorte de paquet Pudełko
Quantité 10 pcs.
Largeur (m) 0,710
Longueur (m) 0,710
Profondeur (m) 0,260
