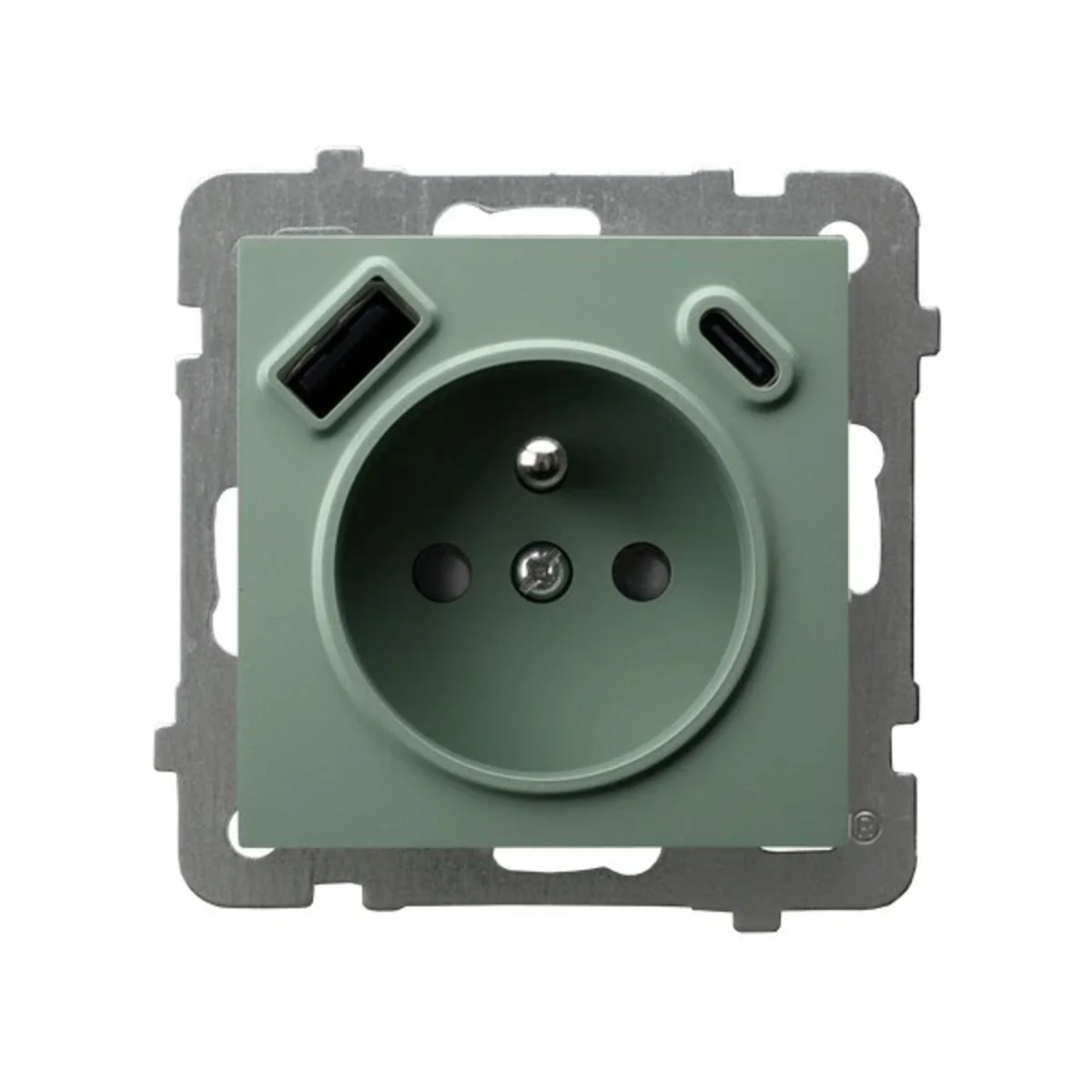

AS Single socket with grounding and current path shutters with USB charger A+B, green matt GP-1GZPUSBAC/M/84

Místní index:
MEE769OSPE
Katalogové číslo.:
GP-1GZPUSBAC/M/84
EAN kód:
5906729038568
Výrobce: OSPEL
Depth [mm]: 50
Number of sockets: 1
Color: Green
Cena:
166,60 zł
gross / kusů.
(včetně DPH 23%)
do jednoho týdne
Na zakázku
Množství kusů.
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout

Popis produktu

Electrical socket from the As series, from the manufacturer Ospel.

FEATURES

  • Single.
  • With grounding.
  • Threadless terminals.
  • To be equipped with a frame.
  • With current path shutters.
  • With USB charger:
    • A and C: 5VDC-3A, 9VDC-2.22A, 12VDC-1.67A
    • C+A: 5VDC-3.4A MAX 20W.
  • Rated current 16A.
  • Rated voltage 230V.
  • Protection degree IP20.
  • Flush mounting.
  • Dimensions: 73 x 73 mm (height x width).

SERIES DESCRIPTION

The As series is a geometric form broken by delicate curves of the frames. It is a combination of dynamic design and neutral colors that will work in any interior. The highest quality materials and timeless design have allowed us to create a product that will adorn your interior for many years.

As  ...

Technické údaje

  • Depth [mm]
    50
  • Color
    Green
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    73
  • Accurate color
    Matte green
  • Mounting depth [mm]
    44
  • Standard
    European
  • On the DATA key
    NO
  • USB charger
    Yes
  • Number of sockets
    1
  • Shape
    Square
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    AS
  • Width [mm]
    73
  • Ground
    Hurt
  • Surface protection
    varnishing
  • Backlight
    NO
  • Terminal type
    Threadless
  • Shutters of current paths
    Yes
  • For the frame system
    Yes
  • Exact material
    Plastic Metal

Další technické údaje

  • Model
    Other
  • Number of ports USB-C
    1
  • Number of modules (module system)
    1
  • Colour
    Green
  • Transparent
    No
  • With miniature fuse
    No
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • Nominal current
    16 A
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    73 mm
  • Min. depth of built-in installation box
    60 mm
  • Number of ports USB-A
    1
  • Number of socket outlets
    1
  • With hinged lid
    No
  • Metallic colour
    No
  • Lockable
    No
  • Special power supply
    None
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • Surface protection
    Lacquered
  • Anti-bacterial treatment
    No
  • Nominal voltage
    250 V
  • Device width
    73 mm
  • Device depth
    44 mm
