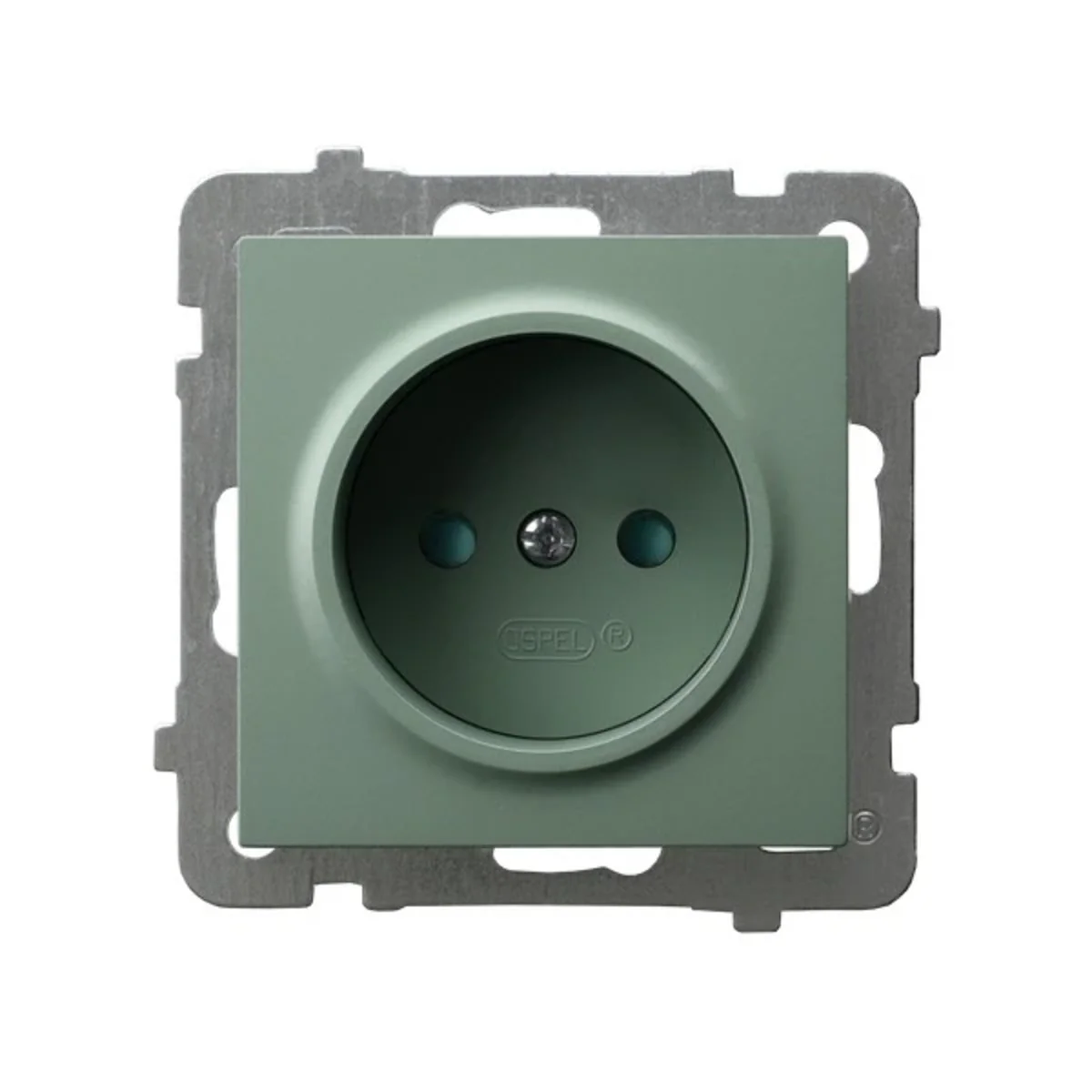

AS Single socket with current shutters, green matt GP-1GP/M/84

Lokaler Index:
MEE747OSPE
Katalognummer:
GP-1GP/M/84
EAN-Code:
5906729037899
Hersteller: OSPEL
Depth [mm]: 39
Number of sockets: 1
Color: Green
Preis:
24,86 zł
gross / stk.
(inklusive MwSt 23%)
bis zu einer Woche
Auf Bestellung
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken

Produktbeschreibung

Electrical socket from the As series, from the manufacturer Ospel.

FEATURES

  • Single.
  • Without earthing.
  • Threaded terminals.
  • To be equipped with a frame.
  • With current circuit shutters.
  • Rated current 16A.
  • Rated voltage 230V.
  • Protection degree IP20.
  • Flush mounting.
  • Dimensions: 71 x 71 mm (height x width).

SERIES DESCRIPTION

The As series is a geometric form broken by the delicate curves of the frames. It is a combination of dynamic design and neutral colors that will work well in any interior. The highest quality materials and timeless design allow us to create a product that will decorate your interior for many years.

As is the perfect solution for those who value true classics. Both the main elements and the complementary frames are based on a square with strongly defined corners. The angles are sharp, perfectly reflecting the geometric trend in interior design. In the case of elements with additional backlighting, small details become a strong and expressive accent. This is a collection for the decisive, so the color options are also limited and strongly correspond to the classic style.

Technische Daten

  • Depth [mm]
    39
  • Color
    Green
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    AS
  • Width [mm]
    71
  • Ground
    Lack
  • Surface protection
    varnishing
  • Backlight
    NO
  • Terminal type
    Threaded
  • Shutters of current paths
    Yes
  • For the frame system
    Yes
  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Accurate color
    Matte green
  • Mounting depth [mm]
    26
  • Standard
    European
  • On the DATA key
    NO
  • Exact material
    Plastic Metal

Weitere technische Daten

  • Model
    Multi-standard socket
  • Number of modules (module system)
    1
  • Colour
    Green
  • Transparent
    No
  • With orientation lighting
    No
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • Nominal voltage
    250 V
  • Device height
    71 mm
  • Min. depth of built-in installation box
    60 mm
  • With signal lamp
    No
  • With hinged lid
    No
  • Metallic colour
    No
  • With function lighting
    No
  • Special power supply
    None
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • Surface protection
    Lacquered
  • Nominal current
    16 A
  • Device width
    71 mm
  • Device depth
    39 mm

Hersteller-Details

  • Hersteller
    OSPEL S.A.
  • Adresse
    42-436 Wierbka Główna 128 Polska

Großpackungen

Eine Art Paket Pudełko
Menge 4 stk.
Breite (m) 0,710
Länge (m) 0,710
Tiefe (m) 0,260
