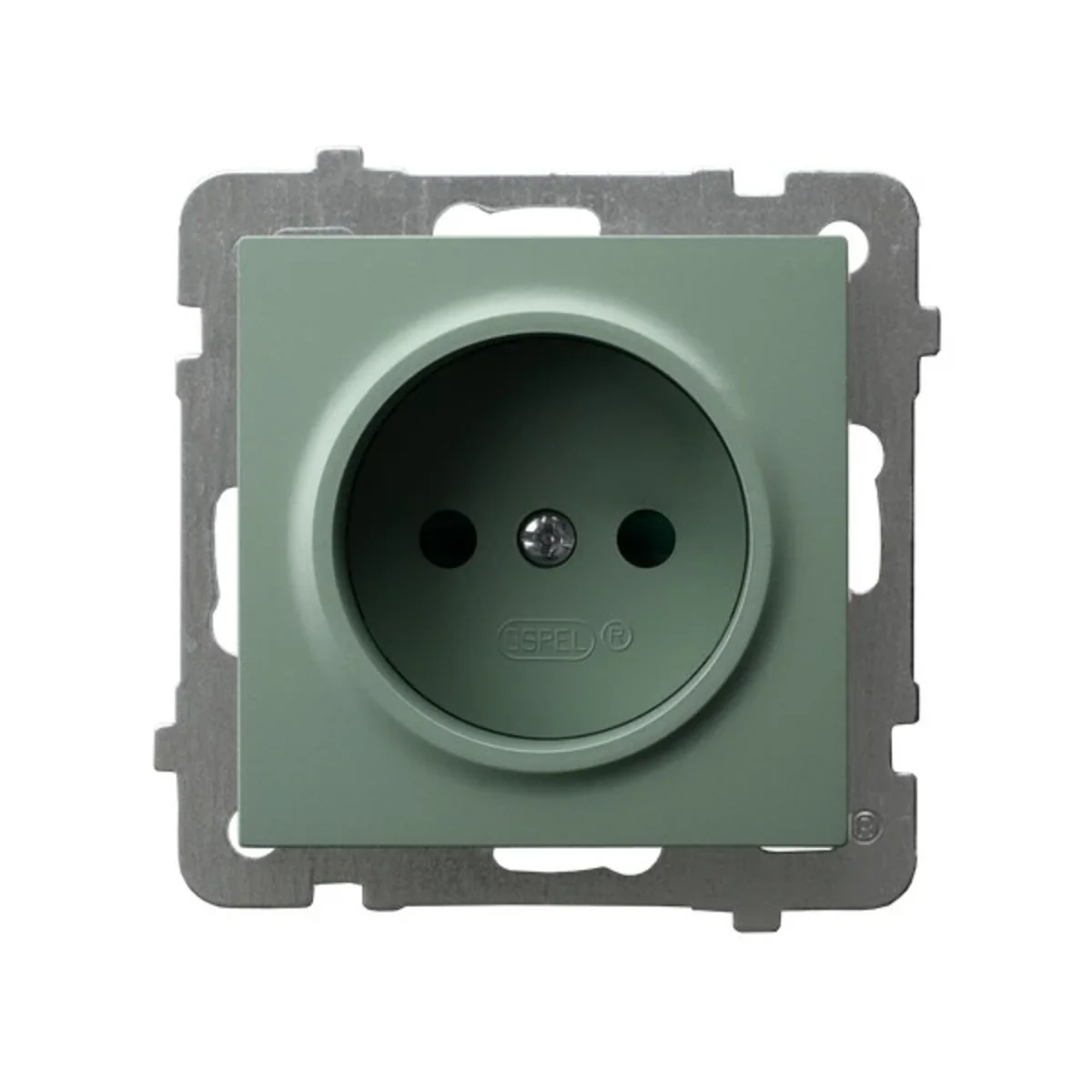

AS Single socket green matt GP-1G/M/84

Indeks lokalny:
MEE744OSPE
Numer katalogowy:
GP-1G/M/84
Kod EAN:
5906729037882
Producent: OSPEL
Depth [mm]: 39
Number of sockets: 1
Color: Green
Cena:
24,01 zł
gross / szt.
(w tym VAT 23%)
do tygodnia
Na zamówienie
Ilość szt.
(wielokrotność:
1
)
Dodaj do zapytania ofertowego
Dodaj do schowka
Drukuj

Opis produktu

Electrical socket from the As series, from the manufacturer Ospel.

FEATURES

  • Single.
  • Without grounding.
  • Thread terminals.
  • To be fitted with a frame.
  • Rated current 16A.
  • Rated voltage 230V.
  • Protection degree IP20.
  • Flush mounting.
  • Dimensions: 71 x 71 mm (height x width).

DESCRIPTION SERIES

The As series features a geometric form offset by the delicate curves of the frames. It combines dynamic design with neutral colors to complement any interior. High-quality materials and a timeless design have allowed us to create a product that will adorn your interior for many years.

As is the perfect solution for those who appreciate true classics. Both the main elements and the complementary frames are based on a square with sharp corners. The angles are sharp, perfectly reflecting the geometric trend in interior design. In the case of elements with additional backlighting, small details become a strong and expressive accent. This is a collection for the determined, which is why the color options are limited and strongly correspond to the classics.

Dane techniczne

  • Depth [mm]
    39
  • Color
    Green
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    AS
  • Width [mm]
    71
  • Ground
    Lack
  • Surface protection
    varnishing
  • Backlight
    NO
  • Terminal type
    Threaded
  • Shutters of current paths
    NO
  • For the frame system
    Yes
  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Accurate color
    Matte green
  • Mounting depth [mm]
    26
  • Standard
    European
  • On the DATA key
    NO
  • Exact material
    Plastic Metal

Pozostałe dane techniczne

  • Model
    Multi-standard socket
  • Number of socket outlets
    1
  • With hinged lid
    No
  • Transparent
    No
  • Over voltage protection
    No
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Anti-bacterial treatment
    No
  • Nominal voltage
    250 V
  • Device width
    71 mm
  • Device depth
    39 mm
  • With signal lamp
    No
  • Number of modules (module system)
    1
  • Colour
    Green
  • With orientation lighting
    No
  • Special power supply
    None
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • Nominal current
    16 A
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    71 mm
  • Min. depth of built-in installation box
    60 mm

Dane producenta

Opakowania zbiorcze

Rodzaj opakowania Pudełko
Ilość 4 szt.
Szerokość (m) 0,710
Długość (m) 0,710
Głębokość (m) 0,260
