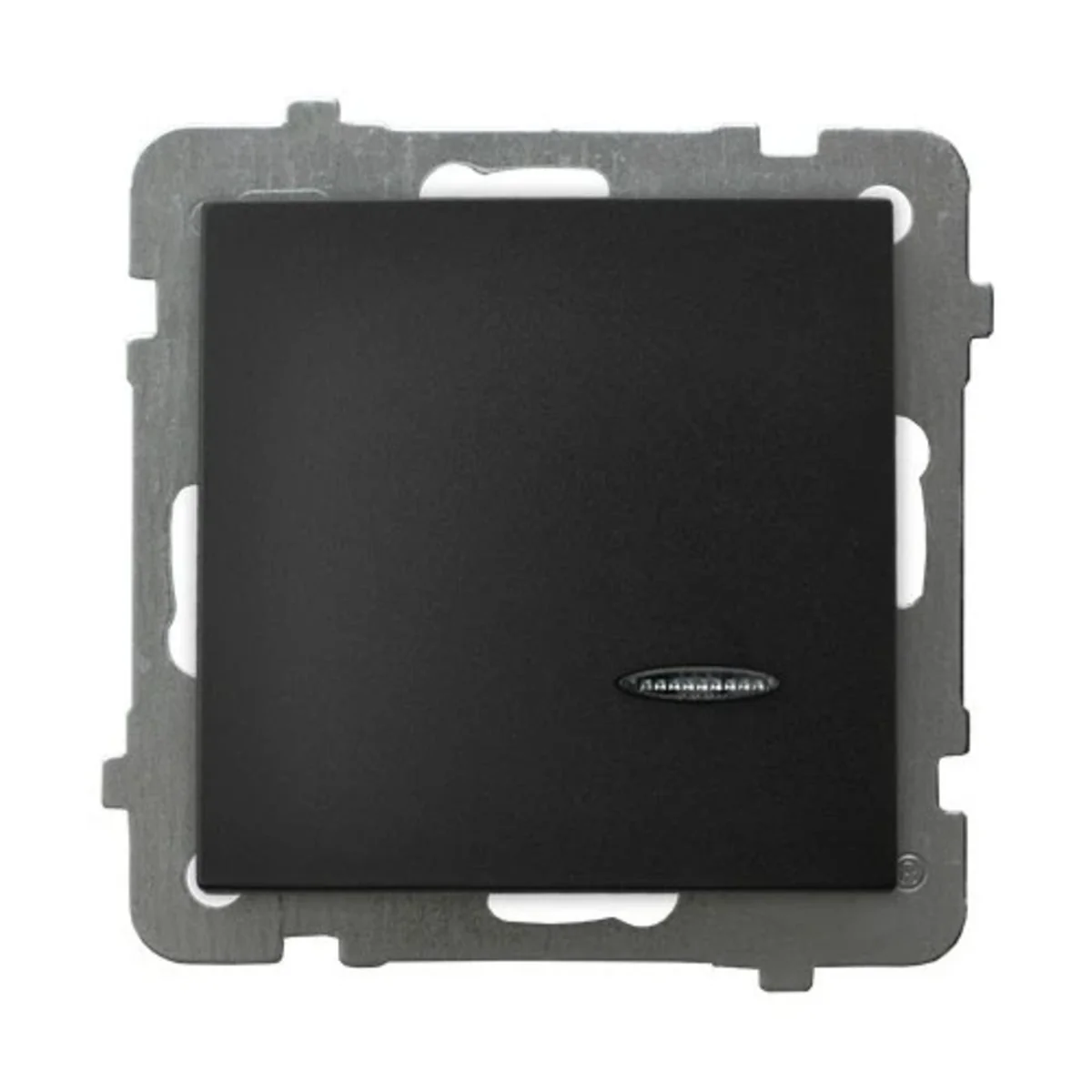

AS Single pole switch with illumination, black metallic, without frame ŁP-1GS/M/33

Místní index:
MMP138OSPE
Katalogové číslo.:
ŁP-1GS/M/33
EAN kód:
5907577497279
Výrobce: OSPEL
Depth [mm]: 40
Number of keys: 1
Color: Black
Cena:
36,60 zł
gross / kusů.
(včetně DPH 23%)
do jednoho týdne
Na zakázku
Množství kusů.
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout

Popis produktu

Single-pole switch with illumination, from the As series. Standard equipment for turning the lighting on/off.

SERIES DESCRIPTION

The As series - a geometric form broken by the delicate curves of the frames. It is a combination of dynamic design and neutral colors that will work in any interior. The highest quality materials and timeless design have allowed us to create a product that will decorate your interior for many years.

As - the perfect solution for those who value true classics. Both the main elements and the complementary frames are based on a square with sharply defined corners. The angles are sharp, perfectly reflecting the geometric trend in interior design. In the case of elements with additional backlighting, small details become a strong and expressive accent. This is a collection for the decisive, so the color options are also limited and strongly reflect the classic style.

Technické údaje

  • Depth [mm]
    40
  • Color
    Black
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    AS
  • Width [mm]
    71
  • Height [mm]
    71
  • Accurate color
    Black metallic
  • Mounting depth [mm]
    25
  • For the frame system
    Yes
  • Backlight type
    Indicative LTS
  • Number of keys
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Single
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Backlight
    Yes
  • Terminal type
    Threaded
  • Exact material
    Plastic Metal
  • Backlight color
    Orange

Další technické údaje

  • Wiring system
    Off switch 1-pole
  • Assembly arrangement
    Basic element with complete housing
  • Number of rockers
    1
  • Anti-bacterial treatment
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    9005
  • Suitable for degree of protection (IP)
    IP20
  • Heating switch
    No
  • Device width
    71 mm
  • Device depth
    40 mm
  • Min. depth of built-in installation box
    60 mm
  • Method of operation
    Rocker/button
  • Number of modules (module system)
    1
  • Mounting method
    Flush-mounted
  • Surface protection
    Lacquered
  • Colour
    Black
  • Illumination
    Yes
  • Nominal voltage
    250 V
  • Washing machine switch
    No
  • Device height
    71 mm
  • Built-in depth
    25 mm

Podrobnosti o výrobci

Velkoobjemová balení

Typ obalu Pudełko
Množství 4 kusů.
Šířka (m) 0,710
Délka (m) 0,710
Hloubka (m) 0,250
