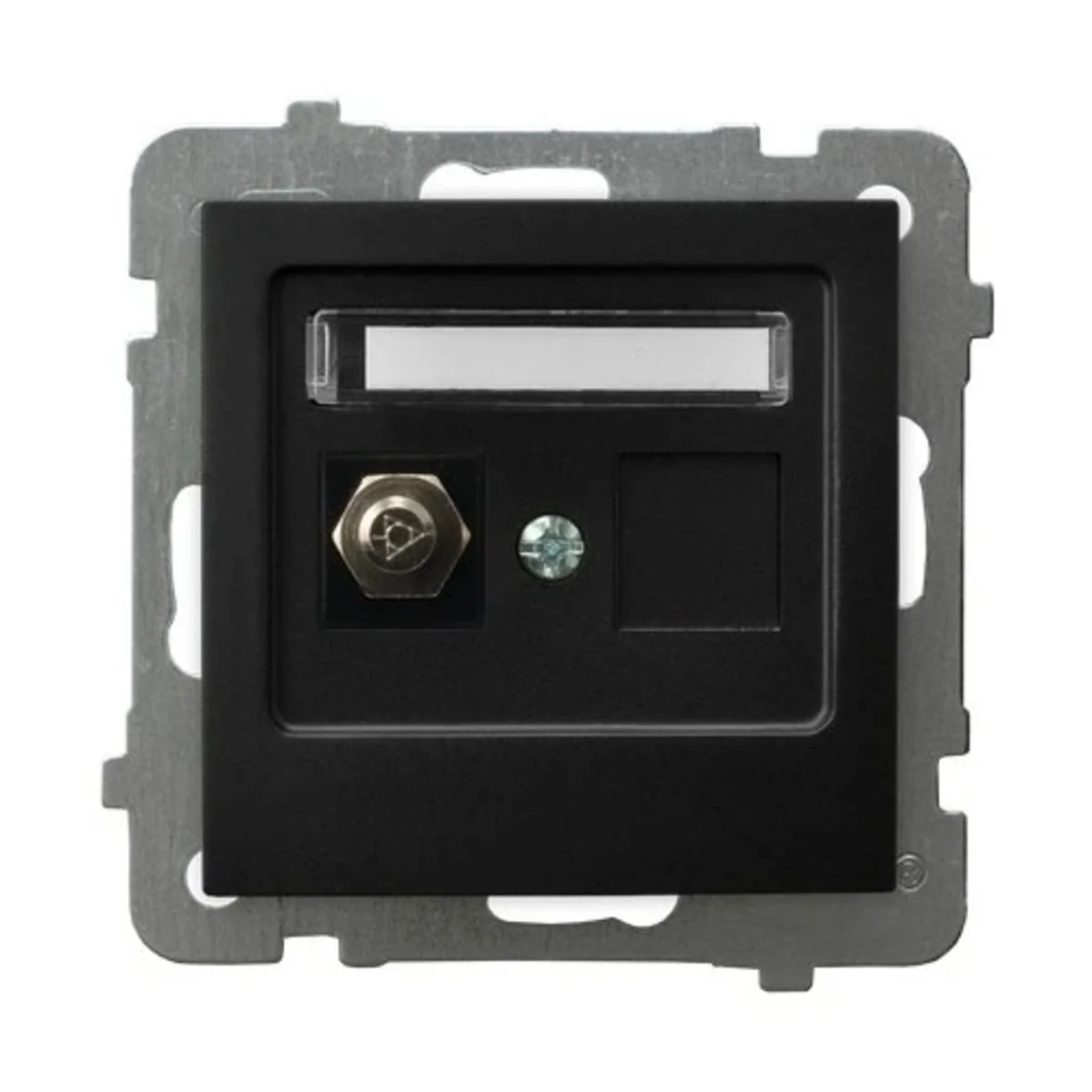

AS Single equipotential socket, black metallic GPE-1G/M/33

Indice locale:
MES051OSPE
Numero di catalogo:
GPE-1G/M/33
Codice EAN:
5906729017020
Produttore: OSPEL
Depth [mm]: 45
Number of sockets: 1
Color: Black
Prezzo:
93,50 zł
gross / pezzi
(inclusa IVA 23%)
fino a una settimana
Su ordinazione
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Descrizione del prodotto

Equipotential socket from the As series. Designed for devices that require potential equalization for proper operation. Meets the requirements of DIN 42801, IEC 60364-7-710.

SERIES DESCRIPTION

The As series is a geometric form broken by the delicate curves of the frames. It is a combination of dynamic design and neutral colors that will work in any interior. The highest quality materials and timeless design have allowed us to create a product that will decorate your interior for many years.

As is the perfect solution for those who value true classics. Both the main elements and the complementary frames are based on a square with sharply defined corners. The angles are sharp, perfectly reflecting the geometric trend in interior design. In the case of elements with additional backlighting, small details become a strong and expressive accent. This is a collection for the decisive, so the color options are also limited and strongly reflect the classic style.

Dati tecnici

  • Depth [mm]
    45
  • Color
    Black
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Equipotential
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Mounting depth [mm]
    20
  • For the frame system
    Yes
  • Exact material
    Plastic Metal
  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Descriptive field
    Yes
  • Family
    AS
  • Width [mm]
    71
  • Height [mm]
    71
  • Accurate color
    Black metallic
  • Terminal type
    Threaded
  • Extra socket
    Blank space

Altri dati tecnici

  • Assembly arrangement
    Basic element with complete housing
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface protection
    Lacquered
  • Colour
    Black
  • Model
    Socket outlet 1-position
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    9005

Dettagli del produttore

  • Produttore
    OSPEL S.A.
  • Indirizzo
    42-436 Wierbka Główna 128 Polska

Imballaggio sfuso

Una specie di pacchetto Pudełko
Quantità 4 pezzi
Larghezza (m) 0,710
Lunghezza (m) 0,710
Profondità (m) 0,200
