AS Single computer socket cat. 5eMMC cashmere GPK-1G/K/M/82

Index local:
MEI158OSPE
Numéro de catalogue:
GPK-1G/K/M/82
Code EAN:
5906729037264
Producteur: OSPEL
Depth [mm]: 33
Category: 5e
Color: Beige
Prix:
58,82 zł
gross / pcs.
(y compris la TVA 23%)
jusqu'à une semaine
Sur commande
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

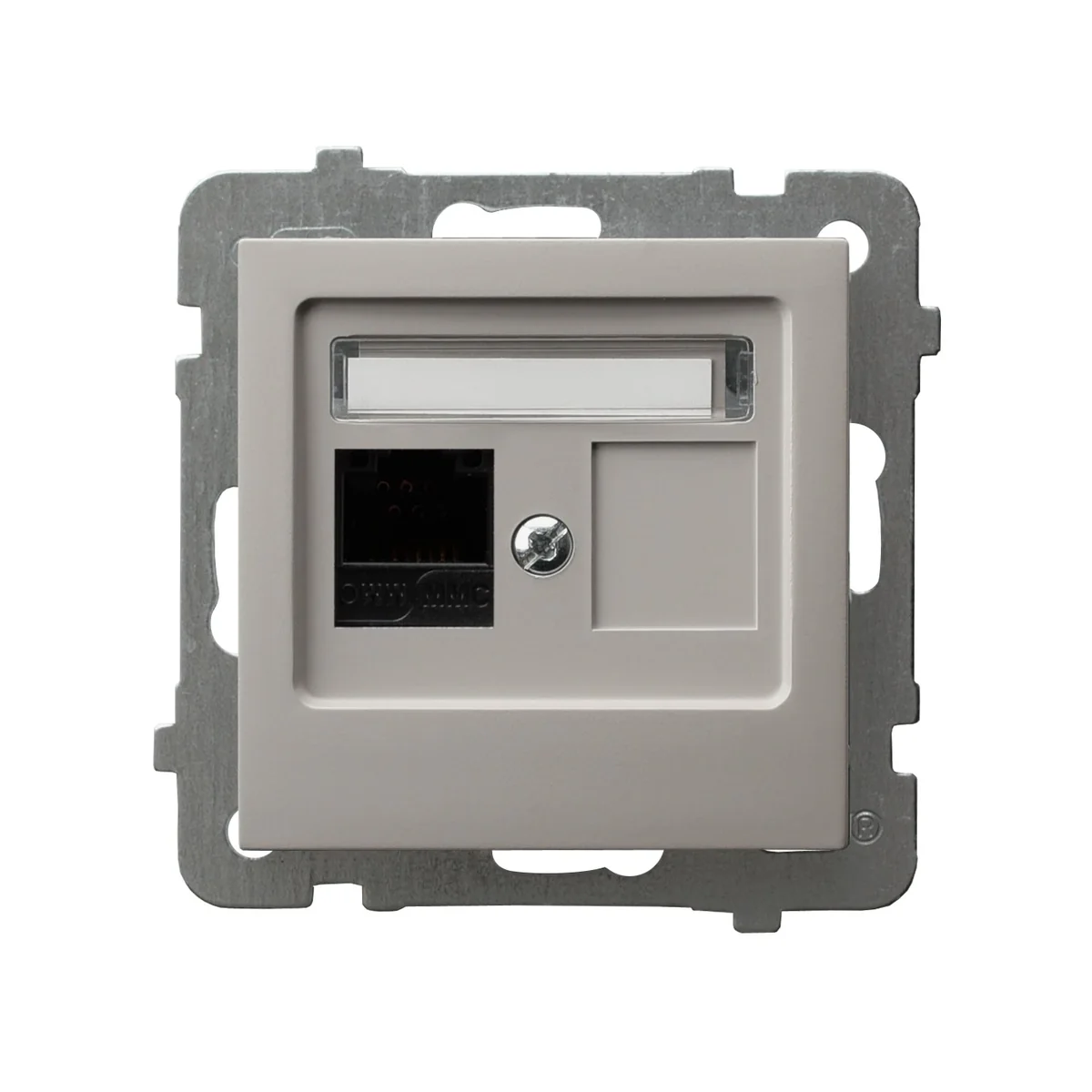

Single RJ-45 computer socket category 5e MMC. Used to connect an unshielded twisted-pair category 5e signal cable. Data transfer speed is 1Gb/s.

SERIES DESCRIPTION

The As series features a geometric form contrasted with delicate frame curves. It is a combination of dynamic design and neutral colors that will complement any interior. The highest quality materials and timeless design have allowed us to create a product that will decorate your interior for many years.

As is the perfect solution for those who value true classics. Both the main elements and the complementary frames are based on a square with sharply defined corners. The angles are sharp, perfectly reflecting the geometric trend in interior design. In the case of elements with additional backlighting, small details become a strong and expressive accent. This is a collection for the decisive, so the color options are also limited and strongly reflect the classic style.

Données techniques

  • Depth [mm]
    33
  • Color
    Beige
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Internet
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Accurate color
    Cashmere
  • Terminal type
    Threadless MMC
  • For the frame system
    Yes
  • Dust cover
    NO
  • Exact material
    Plastic Metal
  • Category
    5e
  • Shape
    Square
  • Fixing
    claws screws
  • Descriptive field
    Yes
  • Family
    AS
  • Width [mm]
    71
  • Version
    UTP
  • Surface protection
    varnishing
  • Mounting depth [mm]
    22
  • Variant
    RJ45 (twisted pair)
  • Number of internet sockets
    1
  • Extra socket
    Blank space

Autres données techniques

  • Surface mounting
    No
  • Duct installation
    No
  • Type of fastening
    Screwing
  • Type of connector
    RJ45 8(8)
  • Colour
    Other
  • Degree of protection (IP)
    IP20
  • Device height
    71 mm
  • Number of modules (module system)
    1
  • Flush-mounted installation
    Yes
  • Floor box/subfloor mounted
    No
  • Assembly arrangement
    Basic element with complete housing
  • Category
    5E
  • With label space
    Yes
  • Device width
    71 mm
  • Device depth
    33 mm

Détails du fabricant

  • Producteur
    OSPEL S.A.
  • Adresse
    42-436 Wierbka Główna 128 Polska

Emballage en vrac

Une sorte de paquet Pudełko
Quantité 4 pcs.
Largeur (m) 0,710
Longueur (m) 0,710
Profondeur (m) 0,220
