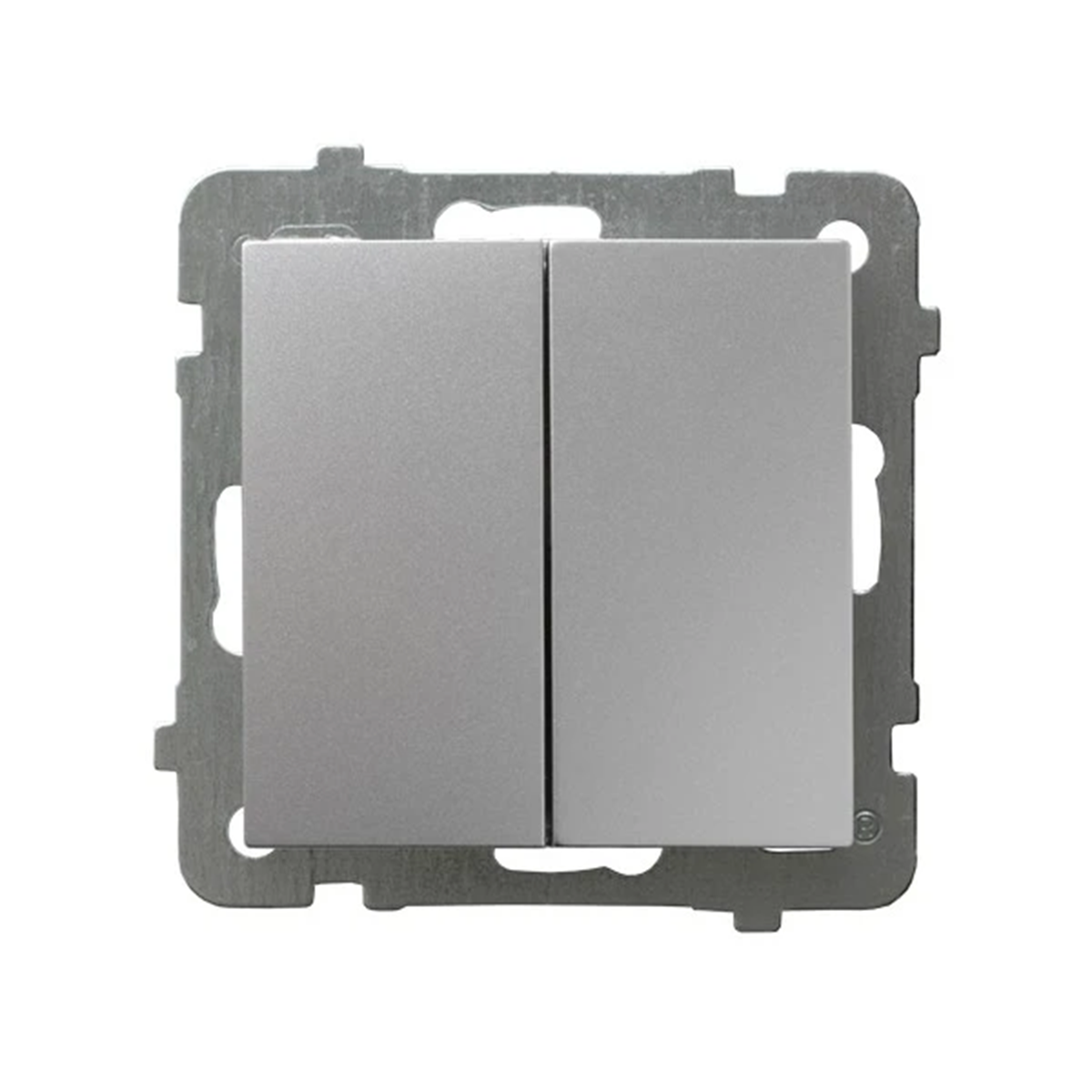

AS Silver double stair connector ŁP-10G/M/18

local index:
MMS015OSPE
Catalog No:
ŁP-10G/M/18
EAN code:
5907577475789
Manufacturer: OSPEL
Depth [mm]: 40
Number of keys: 2
Color: Silver
Price:
7,88 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Stair switch from the As series, from Ospel. The product catalog number is ŁP-10G/M/18.



FEATURES

  • Double.
  • Module without frame.
  • Thread terminals.
  • Color silver.
  • Rated current 10AX.
  • Rated voltage 230V.
  • flush mounting.
  • Rating IP20.
  • Dimensions: 71 x 71 mm (height x width).



SERIES DESCRIPTION

The As series is a geometric form broken with delicate curves frames. It is a combination of dynamic design with neutral colors that will work in any interior. The highest quality materials and timeless design allowed us to create a product that will decorate your interiors for many years.

As an ideal solution for people who value true classics. Both the main elements and the supplementary frames are based on a square with strongly outlined corners. The angles are sharp, perfectly reflecting the geometric trend in interior design. In the case of elements with additional backlighting, small details become a strong and expressive accent. This is a collection for the determined, which is why the color options are also limited and strongly correspond to the classics.

Technical data

  • Depth [mm]
    40
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    AS
  • Width [mm]
    71
  • Height [mm]
    71
  • Backlight
    NO
  • Terminal type
    Threaded
  • Exact material
    Plastic Metal
  • Number of keys
    2
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    stairs
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Mounting depth [mm]
    25
  • For the frame system
    Yes
  • PKWIU
    27.33.11.0

Other technical data

  • Wiring system
    Alternating-/alternating switch
  • Assembly arrangement
    Basic element with complete housing
  • Push button switch
    No
  • Mounting method
    Flush-mounted
  • With mounting plate
    No
  • Material quality
    Thermoplastic
  • Surface protection
    Lacquered
  • Colour
    Silver
  • Label space/information surface
    No
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    16 A
  • Feedback-signal contact
    No
  • Washing machine switch
    No
  • Device height
    75 mm
  • Built-in depth
    25 mm
  • Method of operation
    Rocker/button
  • Number of modules (module system)
    1
  • Number of rockers
    2
  • Type of fastening
    Mounting with claw and screw
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9006
  • Illumination
    No
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    16 AX
  • Connection type
    Push-in clamp
  • Device width
    75 mm
  • Device depth
    40 mm

Bulk packaging

A kind of package Pudełko
Quantity 4 pcs.
Width (m) 0,140
Length (m) 0,162
Depth (m) 0,090
