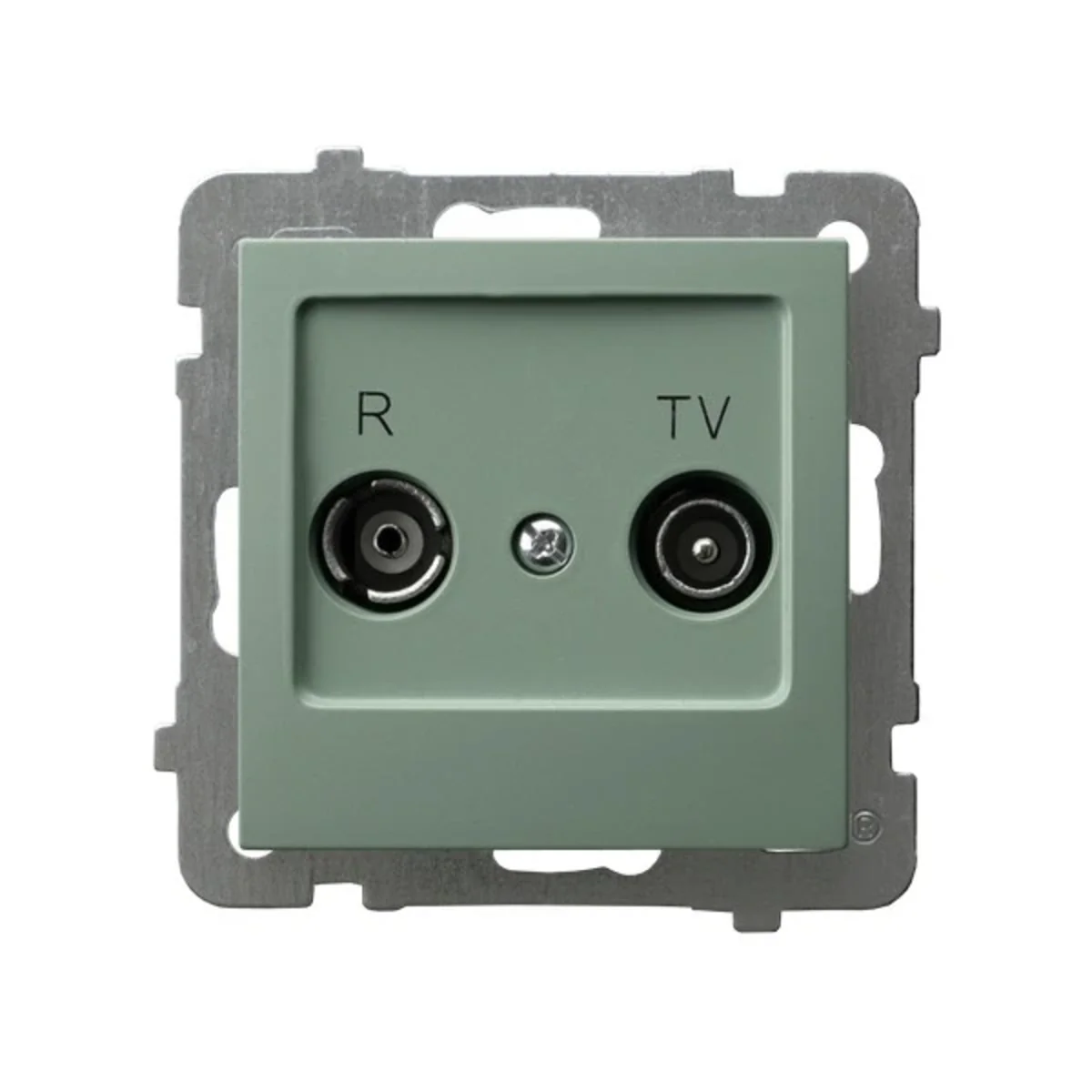

AS RTV terminal socket, green matt GPA-GK/M/84

Indice locale:
MEA415OSPE
Numero di catalogo:
GPA-GK/M/84
Codice EAN:
5906729038148
Produttore: OSPEL
Depth [mm]: 34
Number of sockets: 2
Color: Green
Prezzo:
59,97 zł
gross / pezzi
(inclusa IVA 23%)
fino a una settimana
Su ordinazione
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Descrizione del prodotto

Terminal RTV antenna socket. It is designed for parallel installation, with an independent antenna cable running to each receiver.

SERIES DESCRIPTION

The As series features a geometric form broken by the delicate curves of the frames. It combines dynamic design with neutral colors to complement any interior. The highest quality materials and timeless design have allowed us to create a product that will adorn your interior for many years.

As is the perfect solution for those who value true classics. Both the main elements and the complementary frames are based on a square with sharp corners. The angles are sharp, perfectly reflecting the geometric trend in interior design. In the case of elements with additional backlighting, small details become a strong and expressive accent. This is a collection for the decisive, so the color options are also limited and strongly correspond to the classic style.

Dati tecnici

  • Depth [mm]
    34
  • Color
    Green
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Antenna
  • Level of security
    IP20
  • Attenuation [dB]
    R: 1-1.5 TV: 1-1.5
  • Version
    Final
  • Surface protection
    varnishing
  • Accurate color
    Matte green
  • Mounting depth [mm]
    24
  • Variant
    R TV
  • For the frame system
    Yes
  • Number of sockets
    2
  • Shape
    Square
  • Fixing
    claws screws
  • Overprint
    NO
  • Family
    AS
  • Width [mm]
    71
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Frequency Range [MHz]
    R: 88-108 TV: 5-70 TV: 120-862
  • Backlight
    NO
  • Terminal type
    Threaded
  • F-type input
    NO
  • Exact material
    Plastic Metal

Altri dati tecnici

  • Model
    End socket
  • Mounting method
    Flush-mounted
  • Suitable for remote power supply
    No
  • Colour
    Green
  • Surface finishing
    Matt
  • Material quality
    Thermoplastic
  • Anti-bacterial treatment
    No
  • Device width
    71 mm
  • Device depth
    34 mm
  • Type of socket outlet
    TV/RD
  • Number of modules (module system)
    1
  • Type of fastening
    Mounting with claw and screw
  • Surface protection
    Lacquered
  • Material
    Plastic
  • Halogen free
    Yes
  • Degree of protection (IP)
    IP20
  • Device height
    71 mm
  • Min. depth of built-in installation box
    60 mm

Dettagli del produttore

  • Produttore
    OSPEL S.A.
  • Indirizzo
    42-436 Wierbka Główna 128 Polska

Imballaggio sfuso

Una specie di pacchetto Pudełko
Quantità 4 pezzi
Larghezza (m) 0,710
Lunghezza (m) 0,710
Profondità (m) 0,240
