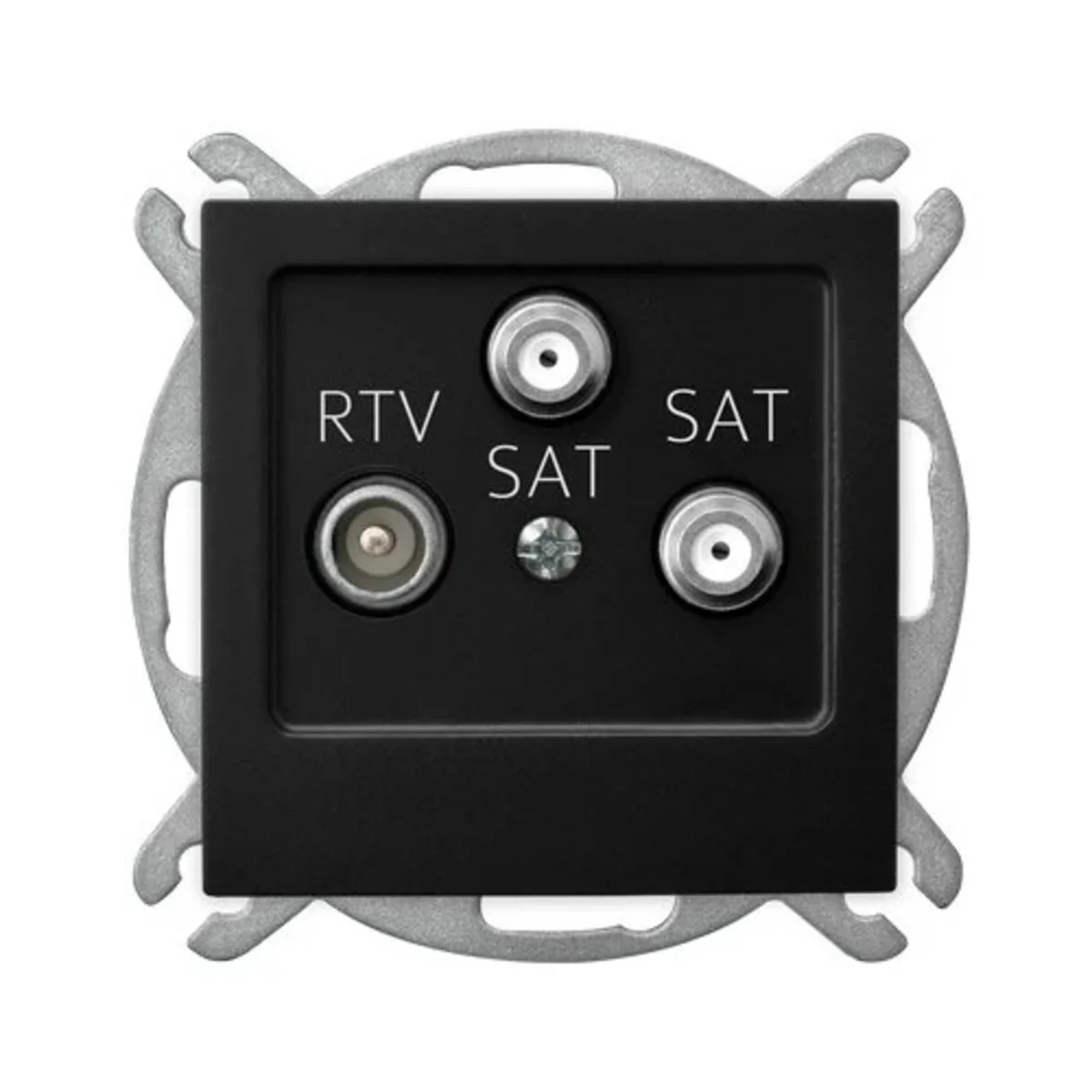

AS RTV-SAT socket with two SAT outputs, black metallic GPA-G2S/M/33

Indeks lokalny:
MEA408OSPE
Numer katalogowy:
GPA-G2S/M/33
Kod EAN:
5906729016917
Producent: OSPEL
Depth [mm]: 34
Number of sockets: 3
Color: Black
Cena:
114,13 zł
gross / szt.
(w tym VAT 23%)
do tygodnia
Na zamówienie
Ilość szt.
(wielokrotność:
1
)
Dodaj do zapytania ofertowego
Dodaj do schowka
Drukuj

Opis produktu

TV antenna socket with two SAT outputs.

SERIES DESCRIPTION

The As series features a geometric form contrasted with the delicate curves of the frames. It combines dynamic design with neutral colors to complement any interior. The highest quality materials and timeless design have allowed us to create a product that will adorn your interior for many years.

As is the perfect solution for those who value true classics. Both the main elements and the complementary frames are based on a square with sharp corners. The angles are sharp, perfectly reflecting the geometric trend in interior design. In the case of elements with additional backlighting, small details become a strong and expressive accent. This is a collection for the decisive, so the color options are also limited and strongly correspond to the classic style.

Dane techniczne

  • Depth [mm]
    34
  • Color
    Black
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Antenna
  • Level of security
    IP20
  • Attenuation [dB]
    RTV: 0.5-1.5 Sat: 10-12 SAT2: 6-8
  • Height [mm]
    71
  • Frequency Range [MHz]
    For SAT input: 5-2400
  • Backlight
    NO
  • Terminal type
    Threaded
  • F-type input
    NO
  • Exact material
    Plastic Metal
  • Number of sockets
    3
  • Shape
    Square
  • Fixing
    claws screws
  • Overprint
    NO
  • Family
    AS
  • Width [mm]
    71
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Accurate color
    Black metallic
  • Mounting depth [mm]
    24
  • Variant
    RTV sat sat2
  • For the frame system
    Yes

Pozostałe dane techniczne

  • Model
    TWIN end socket
  • Mounting method
    Flush-mounted
  • Number of outlets
    1
  • Colour
    Black
  • Surface protection
    Lacquered
  • Material
    Plastic
  • Halogen free
    Yes
  • Degree of protection (IP)
    IP20
  • Device height
    71 mm
  • Min. depth of built-in installation box
    60 mm
  • Type of socket outlet
    TV/RD/SAT
  • Number of modules (module system)
    1
  • Type of fastening
    Mounting with claw and screw
  • RAL-number (similar)
    9005
  • Surface finishing
    Matt
  • Material quality
    Thermoplastic
  • Anti-bacterial treatment
    No
  • Device width
    71 mm
  • Device depth
    34 mm

Dane producenta

Opakowania zbiorcze

Rodzaj opakowania Pudełko
Ilość 4 szt.
Szerokość (m) 0,710
Długość (m) 0,710
Głębokość (m) 0,240
