AS RTV-SAT pass-through socket, green matt GPA-GSP/M/84

local index:
MEA421OSPE
Catalog number:
GPA-GSP/M/84
EAN code:
5906729038155
Manufacturer: OSPEL
Depth [mm]: 34
Number of sockets: 3
Color: Green
Price:
112,34 zł
gross / pcs.
(including VAT 23%)
up to a week
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print

Product description

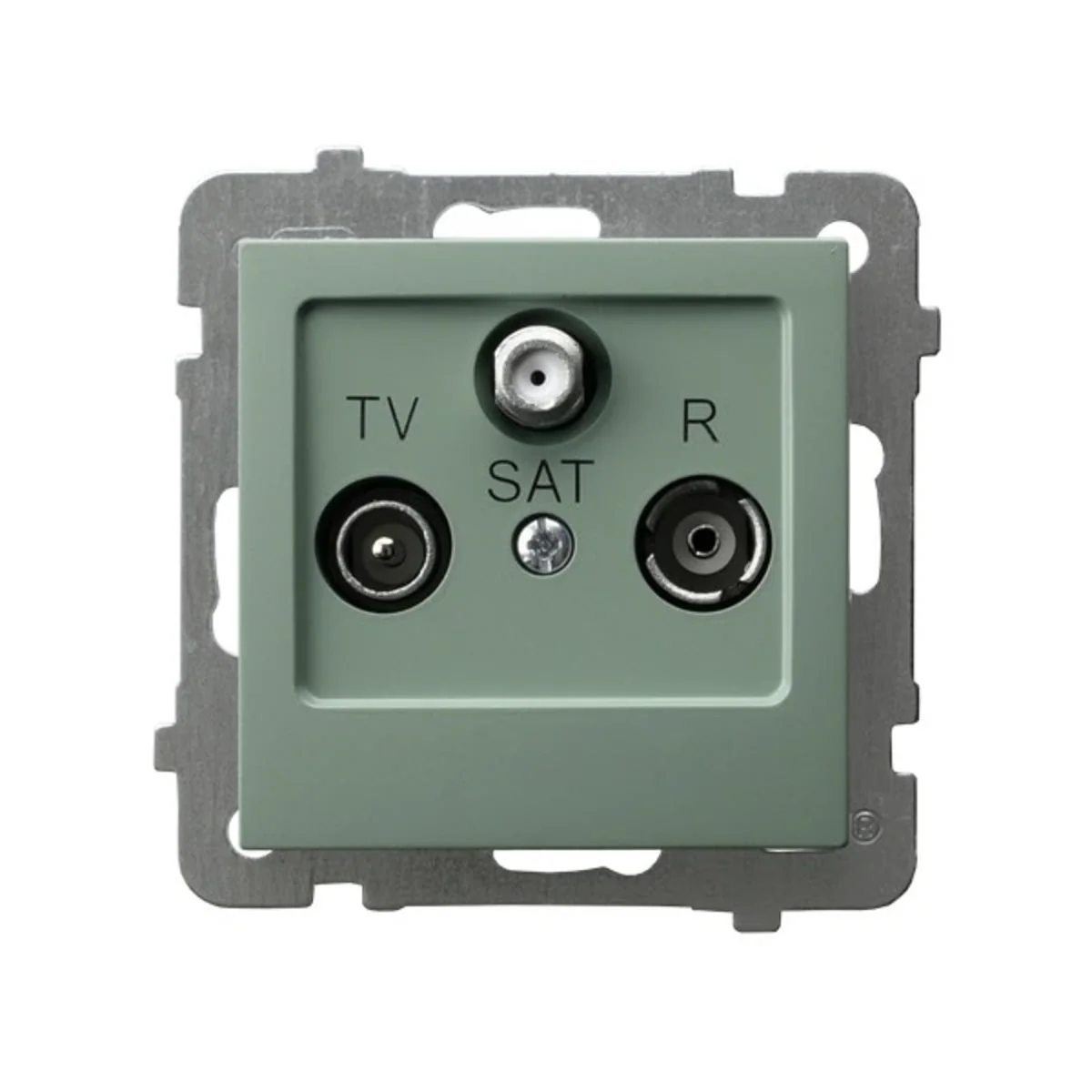

RF-SAT antenna socket with a pass-through design. It is designed for serial installations, where one cable runs through different receivers.

SERIES DESCRIPTION

The As series features a geometric form contrasted with the delicate curves of the frames. It combines dynamic design with neutral colors to complement any interior. The highest quality materials and timeless design have allowed us to create a product that will adorn your interior for many years.

As is the perfect solution for those who value true classics. Both the main elements and the complementary frames are based on a square with sharp corners. The angles are sharp, perfectly reflecting the geometric trend in interior design. In the case of elements with additional backlighting, small details become a strong and expressive accent. This is a collection for the decisive, so the color options are also limited and strongly correspond to the classic style.

Technical data

  • Depth [mm]
    34
  • Color
    Green
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Antenna
  • Level of security
    IP20
  • Attenuation [dB]
    R: 12 TV: 10-12 Sat: 6-8
  • Version
    through
  • Surface protection
    varnishing
  • Accurate color
    Matte green
  • Mounting depth [mm]
    24
  • Variant
    R TV sat
  • For the frame system
    Yes
  • Number of sockets
    3
  • Shape
    Square
  • Fixing
    claws screws
  • Overprint
    NO
  • Family
    AS
  • Width [mm]
    71
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Frequency Range [MHz]
    For output R: 88-108 For TV out: 5-70 For TV out: 120-862 For entry: 5-2400
  • Backlight
    NO
  • Terminal type
    Threaded
  • F-type input
    NO
  • Exact material
    Plastic Metal

Other technical data

  • Model
    Loop-through socket
  • Assembly arrangement
    Basic element with complete housing
  • Type of fastening
    Mounting with claw and screw
  • Surface finishing
    Matt
  • Material quality
    Thermoplastic
  • Anti-bacterial treatment
    No
  • Device width
    71 mm
  • Device depth
    34 mm
  • Number of modules (module system)
    1
  • Suitable for remote power supply
    No
  • Colour
    Green
  • Material
    Plastic
  • Halogen free
    Yes
  • Degree of protection (IP)
    IP20
  • Device height
    71 mm
  • Min. depth of built-in installation box
    60 mm

Manufacturer details

  • Manufacturer
    OSPEL S.A.
  • Address
    42-436 Wierbka Główna 128 Polska

Bulk packaging

A kind of package Pudełko
Quantity 4 pcs.
Width (m) 0,710
Length (m) 0,710
Depth (m) 0,240
