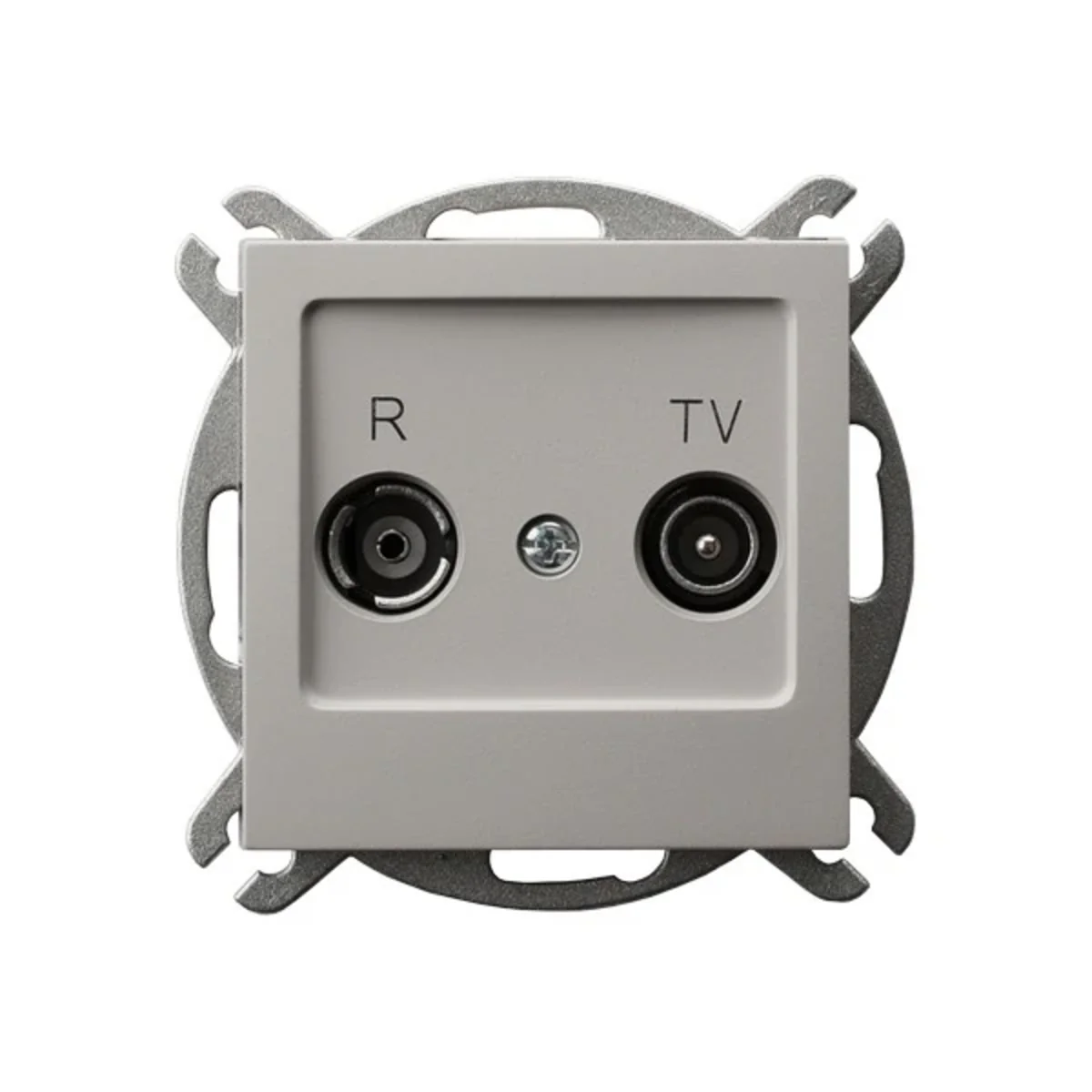

AS RTV pass-through socket 10-dB cashmere GPA-10GP/M/82

Místní index:
MEA392OSPE
Katalogové číslo.:
GPA-10GP/M/82
EAN kód:
5906729037141
Výrobce: OSPEL
Depth [mm]: 34
Number of sockets: 2
Color: Beige
Cena:
71,19 zł
gross / kusů.
(včetně DPH 23%)
do jednoho týdne
Na zakázku
Množství kusů.
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout

Popis produktu

RF antenna socket with pass-through. It is designed for serial installation, in which one cable passes through different receivers. To be equipped with a frame.

SERIES DESCRIPTION

The As series - a geometric form broken by the delicate curves of the frames. It is a combination of dynamic design and neutral colors that will work in any interior. The highest quality materials and timeless design have allowed us to create a product that will decorate your interior for many years.

As - the perfect solution for those who value true classics. Both the main elements and the complementary frames are based on a square with sharply defined corners. The angles are sharp, perfectly reflecting the geometric trend in interior design. In the case of elements with additional backlighting, small details become a strong and expressive accent. This is a collection for the decisive, so the color options are also limited and strongly reflect the classic style.

Technické údaje

  • Depth [mm]
    34
  • Color
    Beige
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Antenna
  • Level of security
    IP20
  • Attenuation [dB]
    R: 10 TV: 10
  • Version
    through
  • Surface protection
    varnishing
  • Accurate color
    Cashmere
  • Mounting depth [mm]
    24
  • Variant
    R TV
  • For the frame system
    Yes
  • Number of sockets
    2
  • Shape
    Square
  • Fixing
    claws screws
  • Overprint
    NO
  • Family
    AS
  • Width [mm]
    71
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Frequency Range [MHz]
    R: 88-108 TV: 5-70 TV: 120-862
  • Backlight
    NO
  • Terminal type
    Threaded
  • F-type input
    NO
  • Exact material
    Plastic Metal

Další technické údaje

  • Model
    Loop-through socket
  • Mounting method
    Flush-mounted
  • Type of fastening
    Mounting with claw and screw
  • Surface protection
    Lacquered
  • Material
    Plastic
  • Halogen free
    Yes
  • Degree of protection (IP)
    IP20
  • Device height
    71 mm
  • Min. depth of built-in installation box
    60 mm
  • Type of socket outlet
    TV/RD
  • Number of modules (module system)
    1
  • Colour
    Other
  • Surface finishing
    Matt
  • Material quality
    Thermoplastic
  • Anti-bacterial treatment
    No
  • Device width
    71 mm
  • Device depth
    34 mm

Podrobnosti o výrobci

Velkoobjemová balení

Typ obalu Pudełko
Množství 4 kusů.
Šířka (m) 0,710
Délka (m) 0,710
Hloubka (m) 0,240
