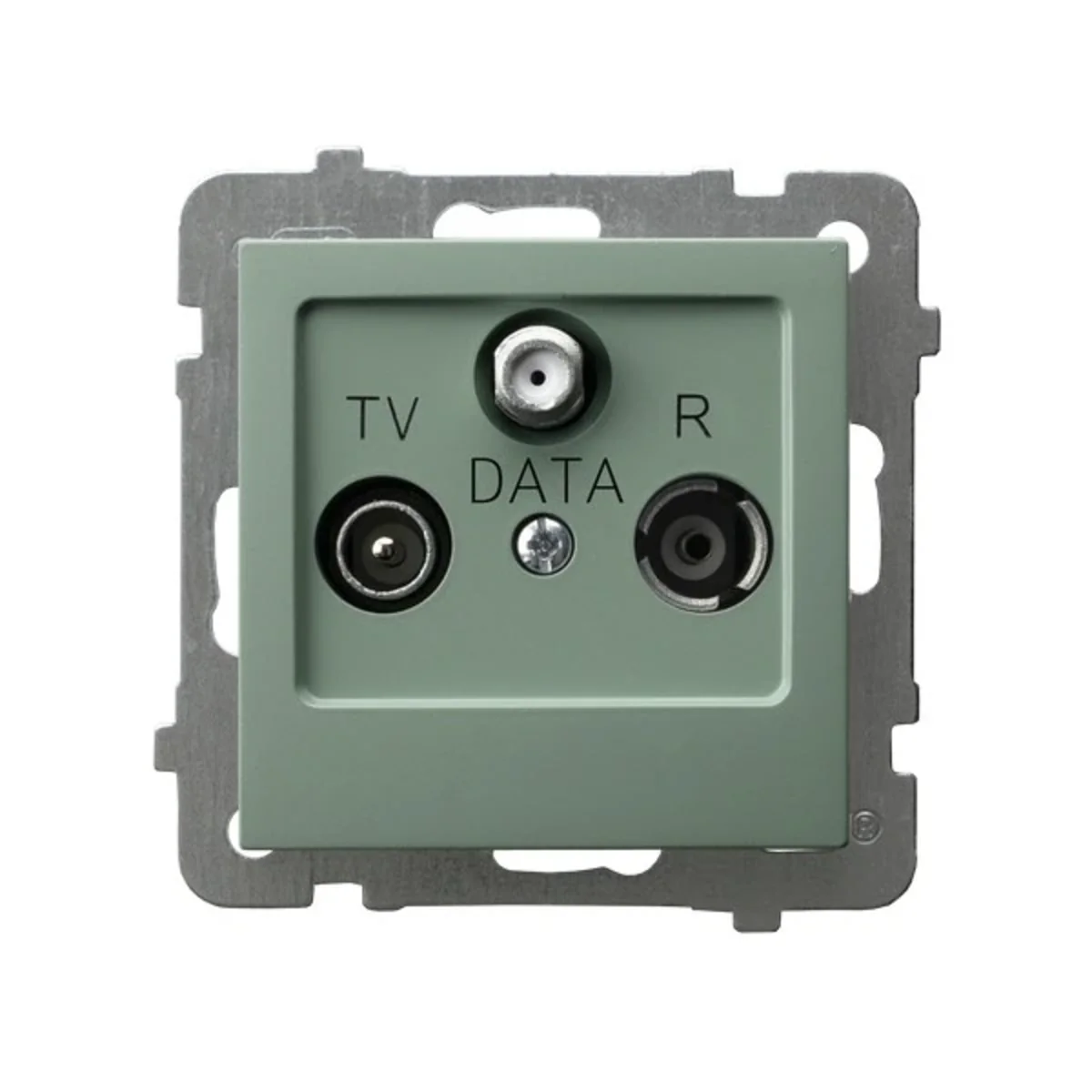

AS RTV DATA socket, green matt GPA-GD/M/84

Lokaler Index:
MEA413OSPE
Katalognummer:
GPA-GD/M/84
EAN-Code:
5906729038162
Hersteller: OSPEL
Depth [mm]: 34
Number of sockets: 3
Color: Green
Preis:
95,62 zł
gross / stk.
(inklusive MwSt 23%)
bis zu einer Woche
Auf Bestellung
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken

Produktbeschreibung

RTV-DATA Antenna Socket

SERIES DESCRIPTION

The As Series - a geometric form broken by the delicate curves of the frames. It is a combination of dynamic design and neutral colors that will work well in any interior. The highest quality materials and timeless design have allowed us to create a product that will decorate your interior for many years.

As - the perfect solution for those who value true classics. Both the main elements and the complementary frames are based on a square with strongly defined corners. The angles are sharp, perfectly reflecting the geometric trend in interior design. In the case of elements with additional backlighting, small details become a strong and expressive accent. This is a collection for the decisive, so the color options are also limited and strongly correspond to the classic style.

Technische Daten

  • Depth [mm]
    34
  • Color
    Green
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Antenna
  • Level of security
    IP20
  • Attenuation [dB]
    R: 13.2-13.6 TV: 9.5-12.4 DATE: 2.4-4.3
  • Height [mm]
    71
  • Frequency Range [MHz]
    R: 88-108 TV: 88-862 DATE: 5-862
  • Backlight
    NO
  • Terminal type
    Threaded
  • F-type input
    NO
  • Exact material
    Plastic Metal
  • Number of sockets
    3
  • Shape
    Square
  • Fixing
    claws screws
  • Overprint
    Yes
  • Family
    AS
  • Width [mm]
    71
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Accurate color
    Matte green
  • Mounting depth [mm]
    24
  • Variant
    R TV DATE
  • For the frame system
    Yes

Weitere technische Daten

  • Model
    Other
  • Number of modules (module system)
    1
  • Suitable for remote power supply
    No
  • Colour
    Green
  • Surface finishing
    Matt
  • Material quality
    Thermoplastic
  • Anti-bacterial treatment
    No
  • Device width
    71 mm
  • Device depth
    34 mm
  • Mounting method
    Flush-mounted
  • Assembly arrangement
    Basic element with complete housing
  • Type of fastening
    Mounting with claw and screw
  • Surface protection
    Lacquered
  • Material
    Plastic
  • Halogen free
    Yes
  • Degree of protection (IP)
    IP20
  • Device height
    71 mm
  • Min. depth of built-in installation box
    60 mm

Hersteller-Details

  • Hersteller
    OSPEL S.A.
  • Adresse
    42-436 Wierbka Główna 128 Polska

Großpackungen

Eine Art Paket Pudełko
Menge 4 stk.
Breite (m) 0,710
Länge (m) 0,710
Tiefe (m) 0,240
