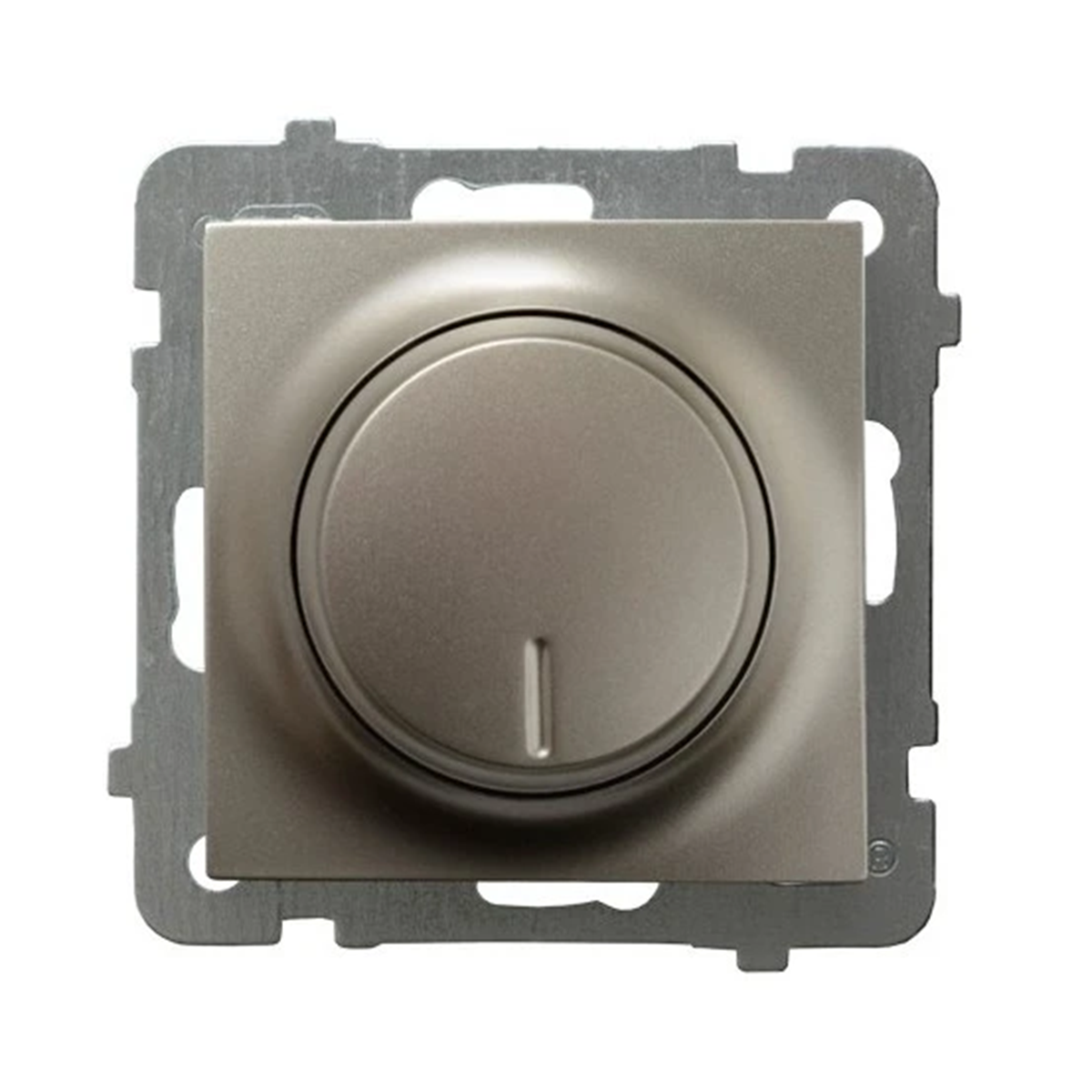

AS Push-turn dimmer adapted to incandescent and satin light loads ŁP-8G/M/45

Name: AS Push-turn dimmer adapted to incandescent and satin light loads
Brand: OSPEL
SKU: MMC005OSPE
Price: 29.90 PLN

Indeks lokalny:

MMC005OSPE

Nr katalogowy:

ŁP-8G/M/45

Kod EAN:

5907577474980

AS Push-turn dimmer adapted to incandescent and satin light loads

Kliknij zdjęcie, aby powiększyć

Producent: OSPEL

Depth [mm]: 51

Number of keys: Knob

Color: Silver

Zobacz cały opis

Cena:

29,90 €

gross / szt.

(w tym VAT 23%)

Dostawa do 3h

do 4 tygodni (dni robocze)

Odbiór za 1h

Ilość szt.

(wielokrotność:

1

)

Dodaj do schowka

Drukuj

Zapytaj o produkt

Opis produktu Dane techniczne Dane producenta Opakowania zbiorcze

Opis produktu

Push-turn dimmer from As series, from Ospel. The product catalog number is ŁP-8G/M/45.

FEATURES

Adjusted to incandescent load and halogen.
Load power: 40-400W.

SERIES DESCRIPTION

The As series products are marked out; they are distinguished by the delicate curves of the frames. Dimmer characterize the features of this unique series.

Dane techniczne

Depth [mm]

51
Color

Silver
Material

Plastic
Rated voltage [V]

230
Family

AS
Width [mm]

71
Version

For incandescent lighting For halogen lighting
Surface protection

varnishing
Backlight

NO
load power [W]

40-400
Variant

Rotary Button
PKWIU

27.33.11.0

Number of keys

Knob
Shape

Square
Fixing

claws screws
Type

dimmers
Level of security

IP20
Type

Flush-mounted
Height [mm]

71
Accurate color

light satin
Mounting depth [mm]

thirty
Terminal type

Threaded
For the frame system

Yes

Pozostałe dane techniczne

Assembly arrangement

Basic element with complete housing
Number of modules (module system)

1
Dimming phase cut-on

Yes
Serial dimmer

Yes
Substation input

No
Applicable with button

No
Applicable with presence indicator

No
Applicable with transmission button

No
Mounting method

Flush-mounted
Material

Plastic
Halogen free

Yes
Surface finishing

Glossy
RAL-number (similar)

1035
Suitable for degree of protection (IP)

IP20
Nominal voltage

230 ... 230 V
Control voltage

230 ... 230 V
Device width

75 mm
Device depth

51 mm

Method of operation

Turn/push button
App control via Bluetooth

No
Dimming phase cut-off

No
Type of load

Resistive load
Light value memory

No
Applicable with movement sensor

Yes
Applicable with time switch/timer

No
Applicable with infrared button

Yes
Type of fastening

Mounting with claw and screw
Material quality

Thermoplastic
Surface protection

Lacquered
Colour

Other
Transparent

No
Impact strength

IK03
Frequency

50 ... 50 Hz
Core cross section

1 ... 1.5 mm²
Device height

75 mm
Min. depth of built-in installation box

60 mm

Dane producenta

Producent

OSPEL S.A.
Adres

42-436 Wierbka Główna 128 Polska
Email

ospel@ospel.com.pl

Opakowania zbiorcze

Rodzaj opakowania	Pudełko
Ilość	5 szt.
Szerokość (m)	0,162
Długość (m)	0,237
Głębokość (m)	0,090
