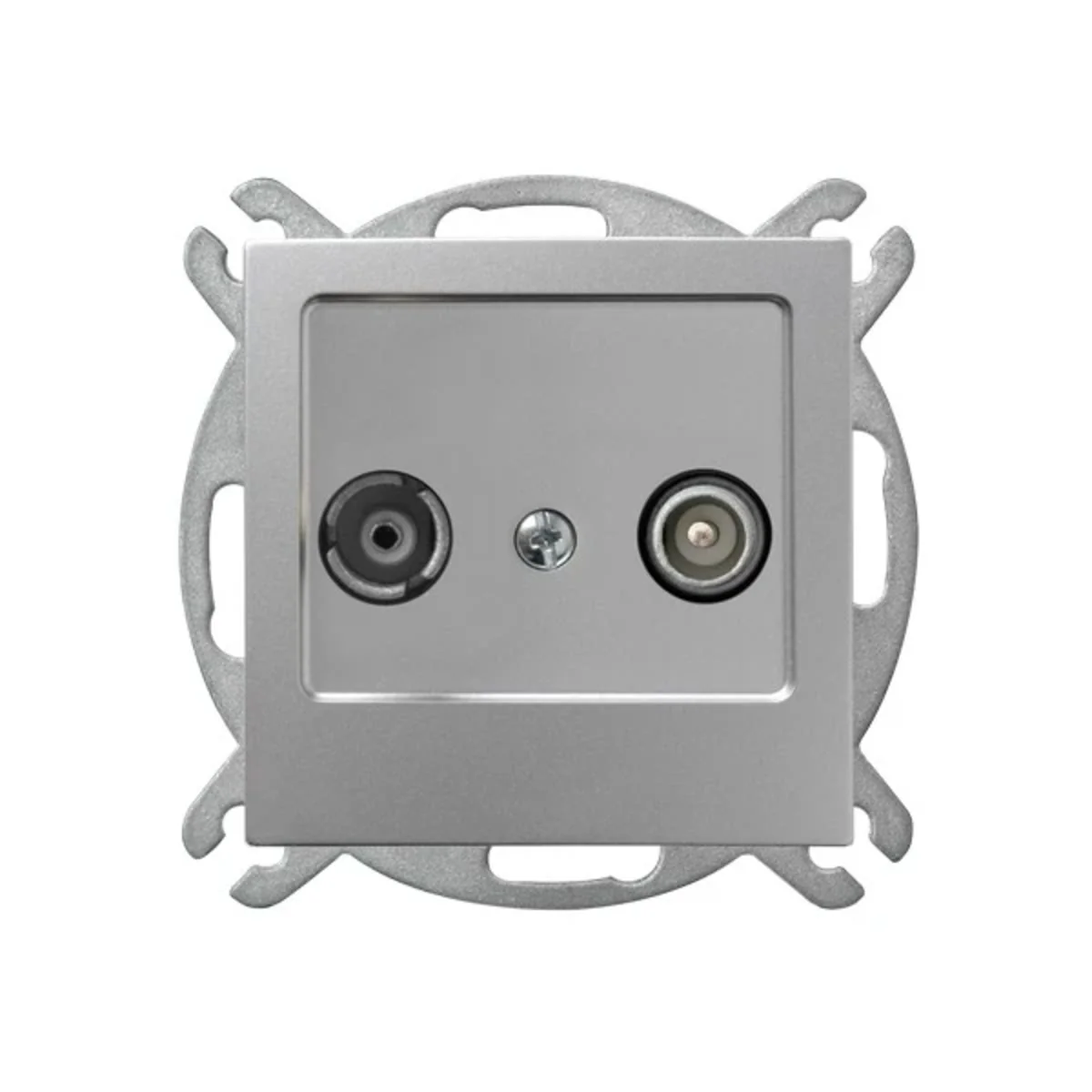

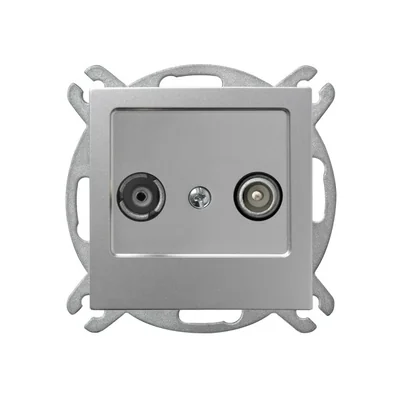

AS Pass-through socket RTV 14-dB silver GPA-14GP/M/18

Indice locale:
MEA081OSPE
Numero di catalogo:
GPA-14GP/M/18
Codice EAN:
5907577476083
Produttore: OSPEL
Depth [mm]: 34
Number of sockets: 2
Color: Silver
Prezzo:
74,57 zł
gross / pezzi
(inclusa IVA 23%)
fino a 4 settimane
Su ordinazione
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Descrizione del prodotto

RTV antenna socket pass-through. It is designed for serial installation, where one cable passes through various receivers. To be equipped with a frame.



SERIES DESCRIPTION

As series – geometric form broken with delicate curvatures of frames. It is a combination of dynamic design with neutral colors that will work in any interior. The highest quality materials and timeless design allowed us to create a product that will decorate your interiors for many years.

As an ideal solution for people who value true classics. Both the main elements and the supplementary frames are based on a square with strongly outlined corners. The angles are sharp, perfectly reflecting the geometric trend in interior design. In the case of elements with additional backlighting, small details become a strong and expressive accent. This is a collection for the determined, which is why the color options are also limited and strongly correspond to the classics.

Dati tecnici

  • Depth [mm]
    34
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Antenna
  • Level of security
    IP20
  • Attenuation [dB]
    R: 14 TV: 14
  • Version
    through
  • Surface protection
    varnishing
  • Backlight
    NO
  • Terminal type
    Threaded
  • F-type input
    NO
  • Exact material
    Plastic Metal
  • Number of sockets
    2
  • Shape
    Square
  • Fixing
    claws screws
  • Overprint
    NO
  • Family
    AS
  • Width [mm]
    71
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Frequency Range [MHz]
    R: 88-108 TV: 5-70 TV: 120-862
  • Mounting depth [mm]
    24
  • Variant
    R TV
  • For the frame system
    Yes
  • PKWIU
    26.40.52.0

Altri dati tecnici

  • Model
    Loop-through socket
  • Number of modules (module system)
    1
  • Tap loss at 2150 MHz
    0 dB
  • Suitable for cable modem
    No
  • Through loss at 2150 MHz
    0 dB
  • Type of fastening
    Mounting with claw and screw
  • RAL-number (similar)
    9006
  • Surface finishing
    Glossy
  • Material quality
    Thermoplastic
  • Device width
    71 mm
  • Device depth
    34 mm
  • Mounting method
    Flush-mounted
  • Tap loss at 860 MHz
    0 dB
  • Number of outlets
    1
  • Through loss at 860 MHz
    14 dB
  • Suitable for remote power supply
    No
  • Colour
    Silver
  • Surface protection
    Lacquered
  • Material
    Plastic
  • Halogen free
    Yes
  • Device height
    71 mm
  • Min. depth of built-in installation box
    60 mm

Dettagli del produttore

  • Produttore
    OSPEL S.A.
  • Indirizzo
    42-436 Wierbka Główna 128 Polska

Imballaggio sfuso

Una specie di pacchetto Pudełko
Quantità 4 pezzi
Larghezza (m) 0,710
Lunghezza (m) 0,710
Profondità (m) 0,240
