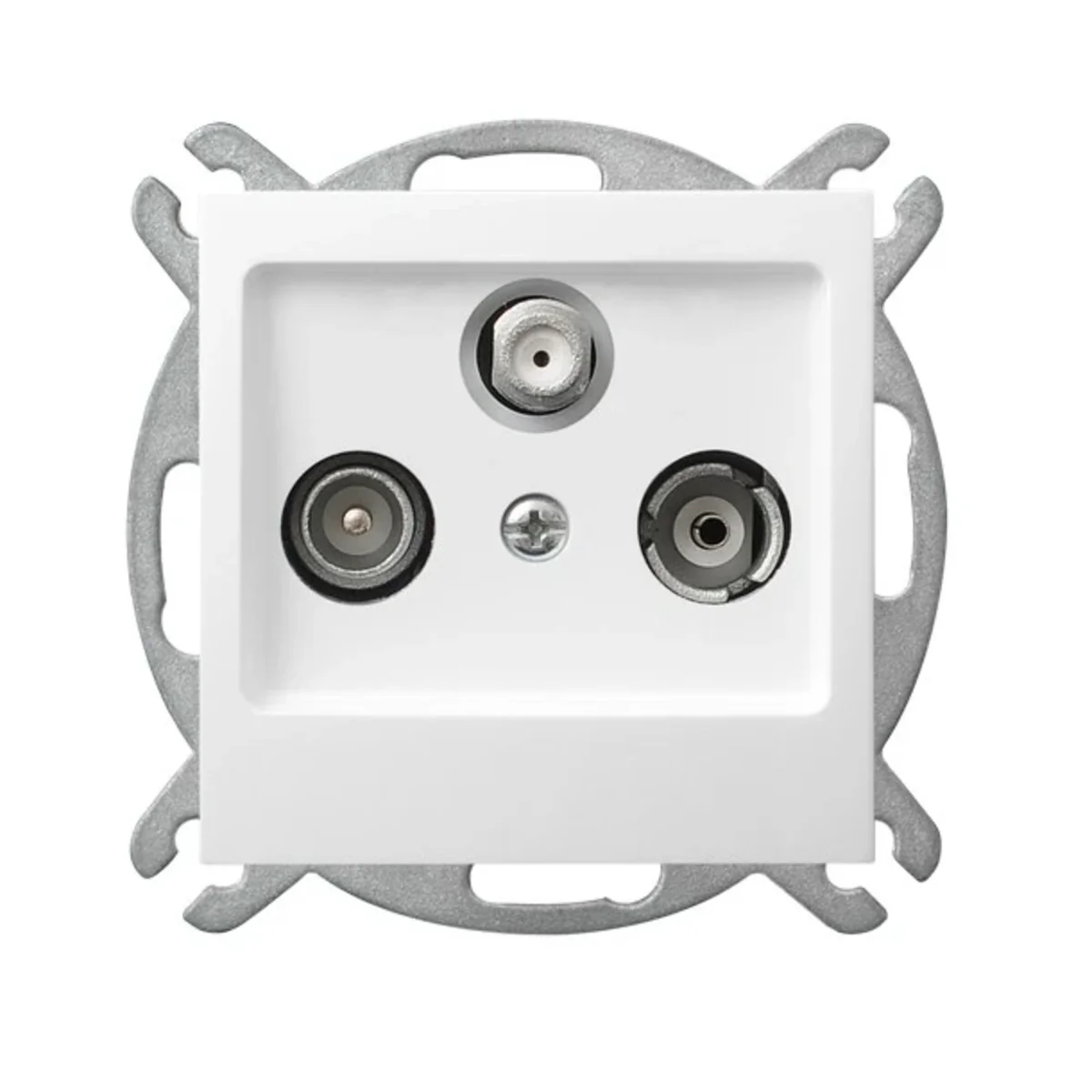

AS Pass-through RTV-SAT socket white GPA-GSP/M/00

local index:
MEA239OSPE
Catalog No:
GPA-GSP/M/00
EAN code:
5907577451585
Manufacturer: OSPEL
Depth [mm]: 34
Number of sockets: 3
Color: White
Price:
20,89 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

RTV-SAT pass-through antenna socket. It is designed for serial installation, where one cable runs through different receivers.



SERIES DESCRIPTION

As series &ndash ; geometric form broken with delicate curvatures of frames. It is a combination of dynamic design with neutral colors that will work in any interior. The highest quality materials and timeless design allowed us to create a product that will decorate your interiors for many years.

As an ideal solution for people who value true classics. Both the main elements and the supplementary frames are based on a square with strongly outlined corners. The angles are sharp, perfectly reflecting the geometric trend in interior design. In the case of elements with additional backlighting, small details become a strong and expressive accent. This is a collection for the determined, which is why the color options are also limited and strongly correspond to the classics.

Technical data

  • Depth [mm]
    34
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Antenna
  • Level of security
    IP20
  • Attenuation [dB]
    R: 12 TV: 10-12 Sat: 6-8
  • Version
    through
  • Surface protection
    Natural
  • Backlight
    NO
  • Terminal type
    Threaded
  • F-type input
    NO
  • Exact material
    Plastic Metal
  • Number of sockets
    3
  • Shape
    Square
  • Fixing
    claws screws
  • Overprint
    NO
  • Family
    AS
  • Width [mm]
    71
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Frequency Range [MHz]
    For output R: 88-108 For TV out: 5-70 For TV out: 120-862 For entry: 5-2400
  • Mounting depth [mm]
    24
  • Variant
    R TV sat
  • For the frame system
    Yes
  • PKWIU
    26.40.52.0

Other technical data

  • Model
    Loop-through socket
  • Number of modules (module system)
    1
  • Tap loss at 860 MHz
    12 dB
  • Number of outlets
    1
  • Through loss at 860 MHz
    4 dB
  • Suitable for remote power supply
    No
  • Type of fastening
    Mounting with claw and screw
  • RAL-number (similar)
    9003
  • Surface finishing
    Glossy
  • Material quality
    Thermoplastic
  • Mounting method
    Flush-mounted
  • Cover
    Complete housing
  • Tap loss at 2150 MHz
    8 dB
  • Suitable for cable modem
    No
  • Through loss at 2150 MHz
    7 dB
  • Frequency
    5 ... 860 MHz
  • Colour
    White
  • Surface protection
    Untreated
  • Material
    Plastic
  • Halogen free
    Yes

Bulk packaging

A kind of package Pudełko
Quantity 10 pcs.
Width (m) 0,162
Length (m) 0,290
Depth (m) 0,090
