AS Pass-through RTV-SAT socket cashmere GPA-GSP/M/82

Índice local:
MEA420OSPE
Número de catálogo:
GPA-GSP/M/82
Código EAN:
5906729037196
Fabricante: OSPEL
Depth [mm]: 34
Number of sockets: 3
Color: Beige
Precio:
112,34 zł
gross / uds.
(IVA incluido 23%)
hasta una semana
Por encargo
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir

Descripción del producto

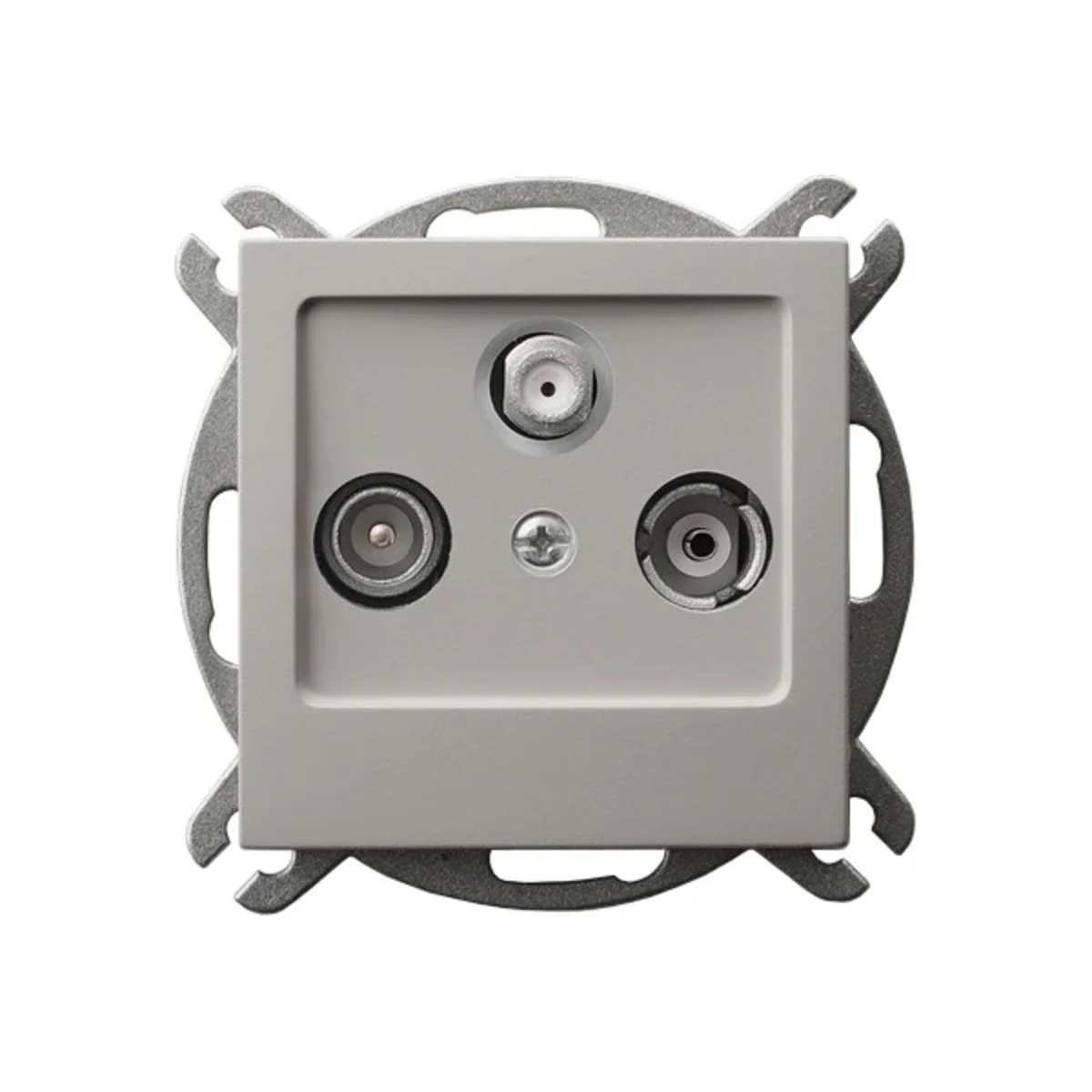

RF-SAT antenna socket with pass-through. It is designed for serial installations, where one cable runs through different receivers.

SERIES DESCRIPTION

The As series features a geometric form broken by the delicate curves of the frames. It combines dynamic design with neutral colors, perfect for any interior. The highest quality materials and timeless design have allowed us to create a product that will adorn your interior for many years.

As is the perfect solution for those who value true classics. Both the main elements and the complementary frames are based on a square with sharp corners. The angles are sharp, perfectly reflecting the geometric trend in interior design. In the case of elements with additional backlighting, small details become a strong and expressive accent. This is a collection for the decisive, so the color options are also limited and strongly correspond to the classic style.

Datos técnicos

  • Depth [mm]
    34
  • Color
    Beige
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Antenna
  • Level of security
    IP20
  • Attenuation [dB]
    R: 12 TV: 10-12 Sat: 6-8
  • Version
    through
  • Surface protection
    varnishing
  • Accurate color
    Cashmere
  • Mounting depth [mm]
    24
  • Variant
    R TV sat
  • For the frame system
    Yes
  • Number of sockets
    3
  • Shape
    Square
  • Fixing
    claws screws
  • Overprint
    NO
  • Family
    AS
  • Width [mm]
    71
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Frequency Range [MHz]
    For output R: 88-108 For TV out: 5-70 For TV out: 120-862 For entry: 5-2400
  • Backlight
    NO
  • Terminal type
    Threaded
  • F-type input
    NO
  • Exact material
    Plastic Metal

Otros datos técnicos

  • Model
    Loop-through socket
  • Number of modules (module system)
    1
  • Type of fastening
    Mounting with claw and screw
  • Surface protection
    Lacquered
  • Material
    Plastic
  • Halogen free
    Yes
  • Degree of protection (IP)
    IP20
  • Device height
    71 mm
  • Min. depth of built-in installation box
    60 mm
  • Mounting method
    Flush-mounted
  • Assembly arrangement
    Basic element with complete housing
  • Colour
    Other
  • Surface finishing
    Matt
  • Material quality
    Thermoplastic
  • Anti-bacterial treatment
    No
  • Device width
    71 mm
  • Device depth
    34 mm

Detalles del fabricante

  • Fabricante
    OSPEL S.A.
  • Dirección
    42-436 Wierbka Główna 128 Polska

Empaquetado a granel

una especie de paquete Pudełko
Cantidad 4 uds.
Ancho (m) 0,710
Longitud (m) 0,710
Profundidad (m) 0,240
