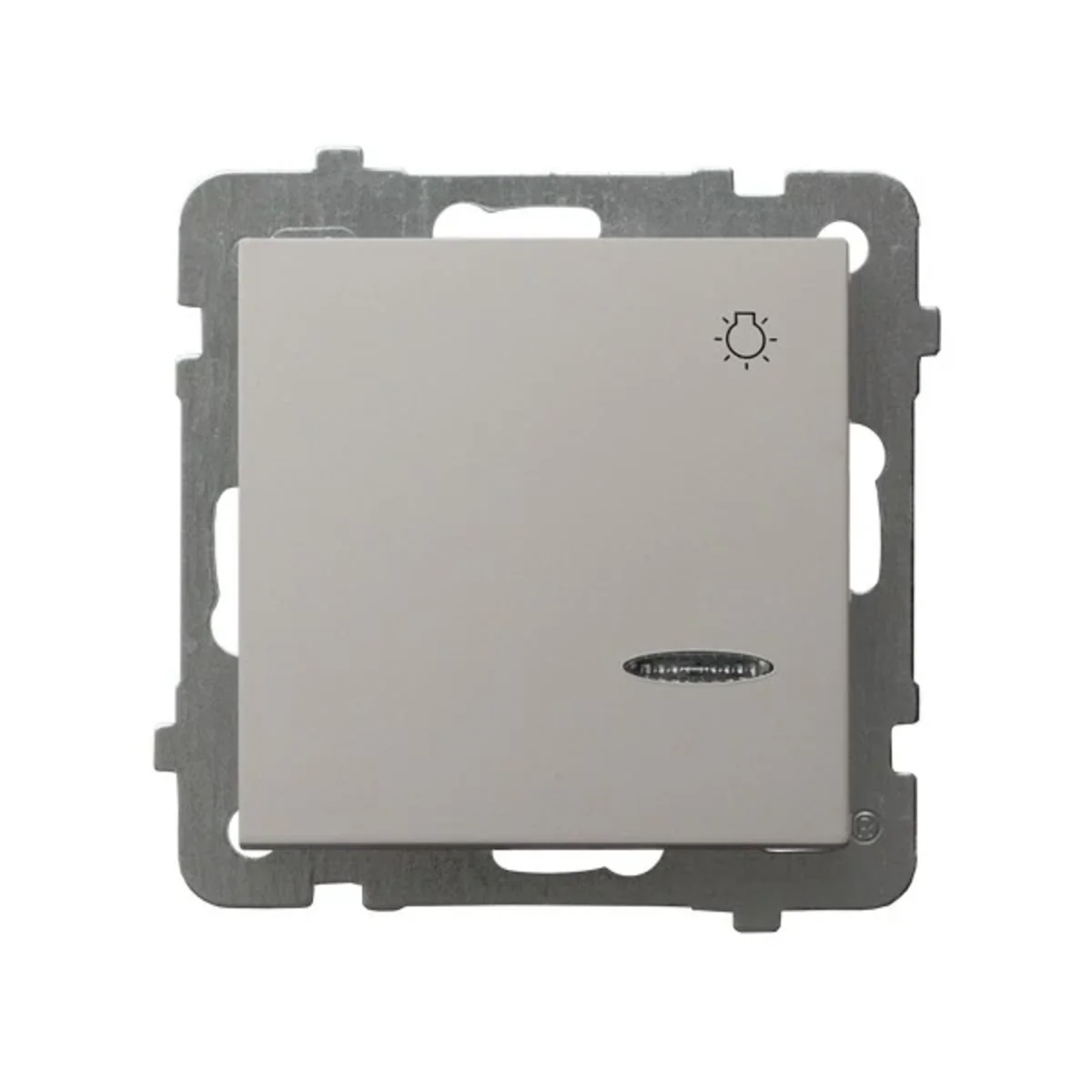

AS Normally Open Switch "Light" with Blue Backlight Cashmere ŁP-5GS/M/82

Indeks lokalny:
MMZ207OSPE
Numer katalogowy:
ŁP-5GS/M/82
Kod EAN:
5906729036786
Producent: OSPEL
Depth [mm]: 40
Number of keys: 1
Color: Beige
Cena:
35,23 zł
gross / szt.
(w tym VAT 23%)
do tygodnia
Na zamówienie
Ilość szt.
(wielokrotność:
1
)
Dodaj do zapytania ofertowego
Dodaj do schowka
Drukuj

Opis produktu

Normally operated "light" switch with illumination, from the As series, from the manufacturer Ospel.

FEATURES

  • To be equipped with a frame.
  • The "light" symbol on the key.
  • Orange backlight.
  • To obtain the IP44 splash-proof class, use a sealing kit for IP44 switches.

SERIES DESCRIPTION

The As series is a geometric form broken by the delicate curves of the frames. It's a combination of dynamic design and neutral colors that will complement any interior. High-quality materials and a timeless design have allowed us to create a product that will adorn your interior for many years.

As is the perfect solution for those who value true classic style. Both the main elements and the complementary frames are based on a square with sharply defined corners. The angles are sharp, perfectly reflecting the geometric trend in interior design. In the case of elements with additional backlighting, small details become a strong and expressive accent. This is a collection for the decisive, so the color options are also limited and strongly correspond to the classic style.

Dane techniczne

  • Depth [mm]
    40
  • Color
    Beige
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    AS
  • Symbol
    Light
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Accurate color
    Cashmere
  • Mounting depth [mm]
    25
  • Variant
    Light
  • Exact material
    Plastic Metal
  • Backlight color
    Blue
  • Number of keys
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP20
  • Width [mm]
    71
  • Version
    Confident
  • Surface protection
    varnishing
  • Backlight
    Yes
  • Terminal type
    Threaded
  • For the frame system
    Yes
  • Backlight type
    LTS

Pozostałe dane techniczne

  • Wiring system
    Normally open contact (NO)
  • Number of modules (module system)
    1
  • Type of fastening
    Mounting with claw and screw
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface protection
    Lacquered
  • Colour
    Other
  • Imprint/indication
    None
  • Function lighting
    Orientation
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    10 A
  • Heating switch
    No
  • Device width
    71 mm
  • Device depth
    40 mm
  • Min. depth of built-in installation box
    60 mm
  • Compatible with Google Assistant
    No
  • IFTTT support available
    No
  • Method of operation
    Rocker/button
  • Mounting method
    Flush-mounted
  • With mounting plate
    No
  • Material quality
    Thermoplastic
  • Anti-bacterial treatment
    No
  • Surface finishing
    Matt
  • Label space/information surface
    No
  • Illumination
    Yes
  • Type of lighting
    Glow lamp
  • Nominal voltage
    250 V
  • Feedback-signal contact
    No
  • Washing machine switch
    No
  • Device height
    71 mm
  • Built-in depth
    25 mm
  • Compatible with Apple HomeKit
    No
  • Compatible with Amazon Alexa
    No

Dane producenta

Opakowania zbiorcze

Rodzaj opakowania Pudełko
Ilość 4 szt.
Szerokość (m) 0,710
Długość (m) 0,710
Głębokość (m) 0,250
