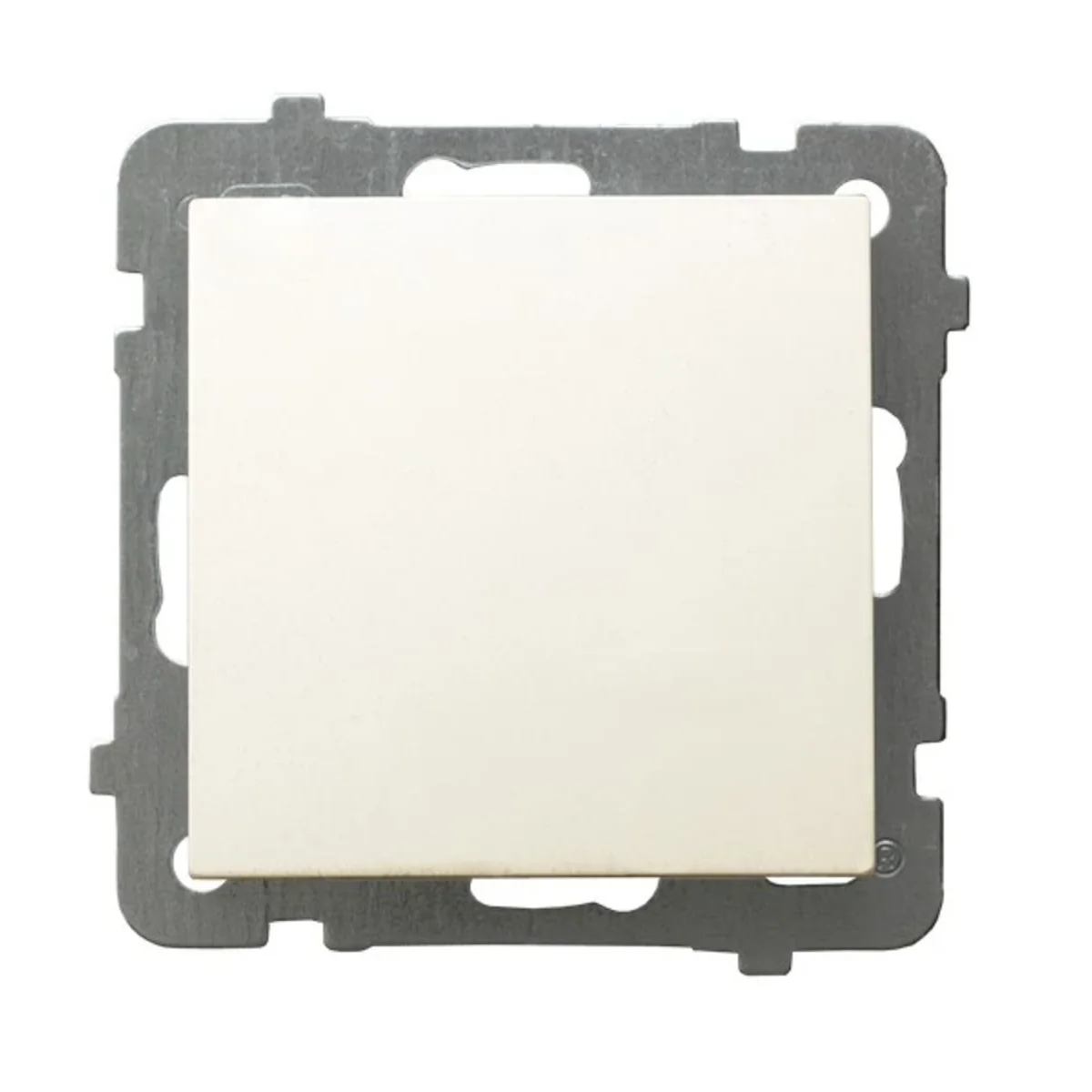

AS Normally Open Switch ecru ŁP-21G/M/27

Indeks lokalny:
MMZ191OSPE
Numer katalogowy:
ŁP-21G/M/27
Kod EAN:
5906729015941
Producent: OSPEL
Depth [mm]: 40
Number of keys: 1
Color: Beige
Cena:
18,72 zł
gross / szt.
(w tym VAT 23%)
do tygodnia
Na zamówienie
Ilość szt.
(wielokrotność:
1
)
Dodaj do zapytania ofertowego
Dodaj do schowka
Drukuj

Opis produktu

Normally open switch from the As series, from the manufacturer Ospel.

FEATURES

  • To be equipped with a frame.
  • To obtain the IP44 splash-proof class, use a sealing kit for IP44 switches.

SERIES DESCRIPTION

The As series is a geometric form broken by the delicate curves of the frames. It is a combination of dynamic design and neutral colors that will work well in any interior. The highest quality materials and timeless design have allowed us to create a product that will adorn your interior for many years.

As  ...

Dane techniczne

  • Depth [mm]
    40
  • Color
    Beige
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    AS
  • Width [mm]
    71
  • Version
    Confident
  • Surface protection
    Natural
  • Backlight
    NO
  • Terminal type
    Threaded
  • For the frame system
    Yes
  • Number of keys
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Accurate color
    Ecru
  • Mounting depth [mm]
    25
  • Variant
    Ordinary
  • Exact material
    Plastic Metal

Pozostałe dane techniczne

  • Wiring system
    Off switch 1-pole
  • Assembly arrangement
    Basic element with complete housing
  • Mounting method
    Flush-mounted
  • With mounting plate
    No
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Label space/information surface
    No
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    10 A
  • Washing machine switch
    No
  • Device height
    71 mm
  • Min. depth of built-in installation box
    60 mm
  • Method of operation
    Rocker/button
  • Number of modules (module system)
    1
  • Type of fastening
    Mounting with claw and screw
  • Material
    Plastic
  • Anti-bacterial treatment
    No
  • Colour
    Other
  • Illumination
    No
  • Nominal voltage
    250 V
  • Heating switch
    No
  • Device width
    71 mm
  • Device depth
    40 mm

Dane producenta

Opakowania zbiorcze

Rodzaj opakowania Pudełko
Ilość 10 szt.
Szerokość (m) 0,710
Długość (m) 0,710
Głębokość (m) 0,250
