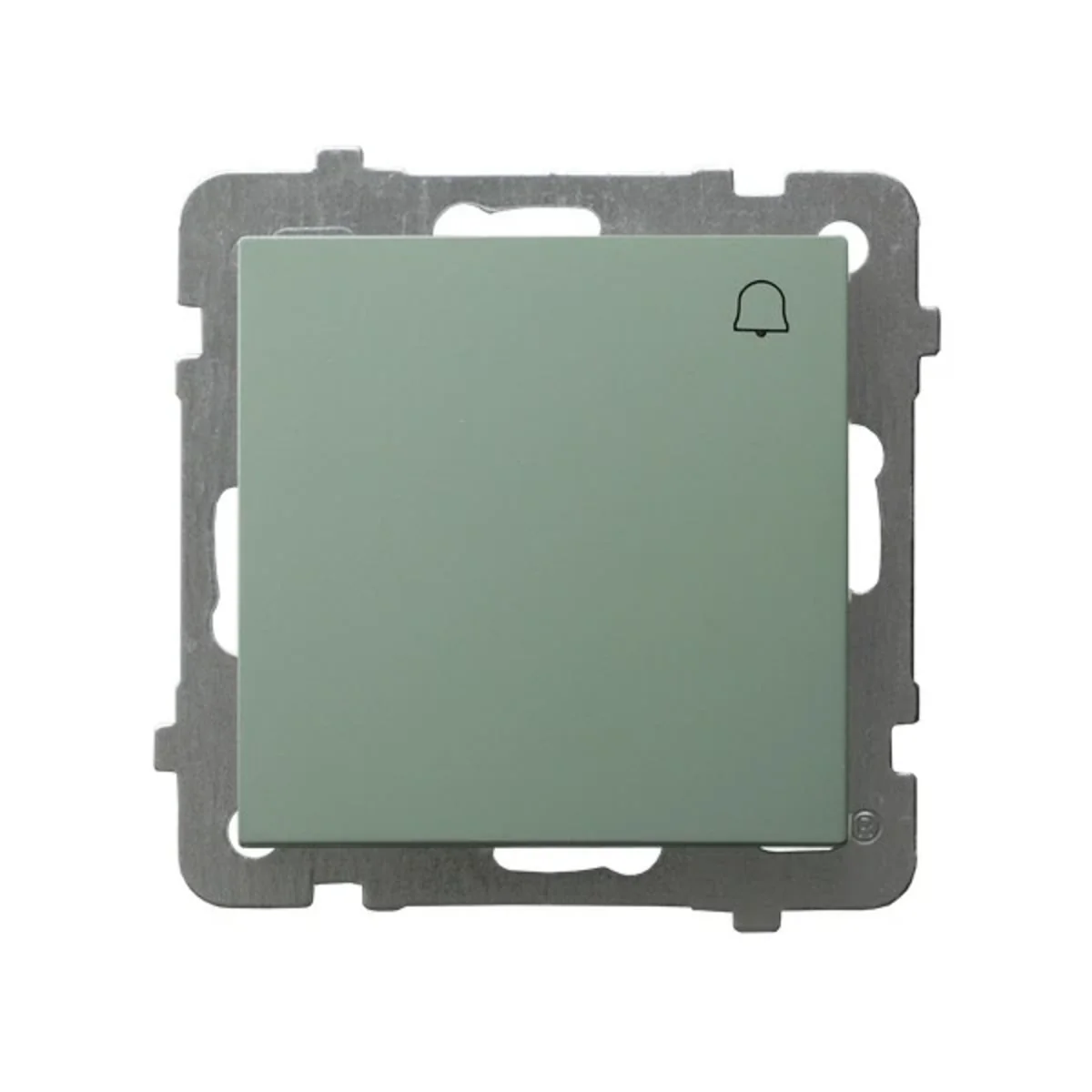

AS Normally open switch "bell" matt green ŁP-6G/M/84
Index local:
MMZ211OSPE
Numéro de catalogue:
ŁP-6G/M/84
Code EAN:
5906729037752
Prix:
28,77 zł
gross / pcs.
(y compris la TVA 23%)
Sur commande
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer
Renseignez-vous sur le produit
Description du produit
Normally operated "bell" switch from the As series, from the manufacturer Ospel.
FEATURES
- To be equipped with a frame.
- The "bell" symbol is on the key.
- To obtain an IP44 splash-proof class, use a sealing kit for switches.
SERIES DESCRIPTION
The As series is a geometric form broken by the delicate curves of the frames. It is a combination of dynamic design and neutral colors that will work well in any interior. The highest quality materials and timeless design have allowed us to create a product that will adorn your interior for many years.
As ...
Données techniques
-
Depth [mm]40
-
ColorGreen
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]10
-
FamilyAS
-
SymbolBell
-
TypeFlush-mounted
-
Height [mm]71
-
Accurate colorMatte green
-
Mounting depth [mm]25
-
VariantBell
-
Exact materialPlastic Metal
-
Number of keys1
-
ShapeSquare
-
Fixingclaws screws
-
Rated voltage [V]230
-
TypeShort
-
Level of securityIP20
-
Width [mm]71
-
VersionConfident
-
Surface protectionvarnishing
-
BacklightNO
-
Terminal typeThreaded
-
For the frame systemYes
Autres données techniques
-
Wiring systemOther
-
Assembly arrangementBasic element with complete housing
-
Mounting methodFlush-mounted
-
With mounting plateNo
-
Material qualityThermoplastic
-
Anti-bacterial treatmentNo
-
Surface finishingMatt
-
Label space/information surfaceNo
-
IlluminationNo
-
Nominal voltage250 V
-
Heating switchNo
-
Device width71 mm
-
Device depth40 mm
-
Min. depth of built-in installation box60 mm
-
Compatible with Google AssistantNo
-
IFTTT support availableNo
-
Method of operationRocker/button
-
Number of modules (module system)1
-
Type of fasteningMounting with claw and screw
-
MaterialPlastic
-
Halogen freeYes
-
Surface protectionLacquered
-
ColourGreen
-
Imprint/indicationOther
-
Suitable for degree of protection (IP)IP20
-
Rated current10 A
-
Washing machine switchNo
-
Device height71 mm
-
Built-in depth25 mm
-
Compatible with Apple HomeKitNo
-
Compatible with Amazon AlexaNo
Détails du fabricant
-
ProducteurOSPEL S.A.
-
Adresse42-436 Wierbka Główna 128 Polska
-
E-mail
Emballage en vrac
| Une sorte de paquet | Pudełko |
| Quantité | 4 pcs. |
| Largeur (m) | 0,710 |
| Longueur (m) | 0,710 |
| Profondeur (m) | 0,250 |
