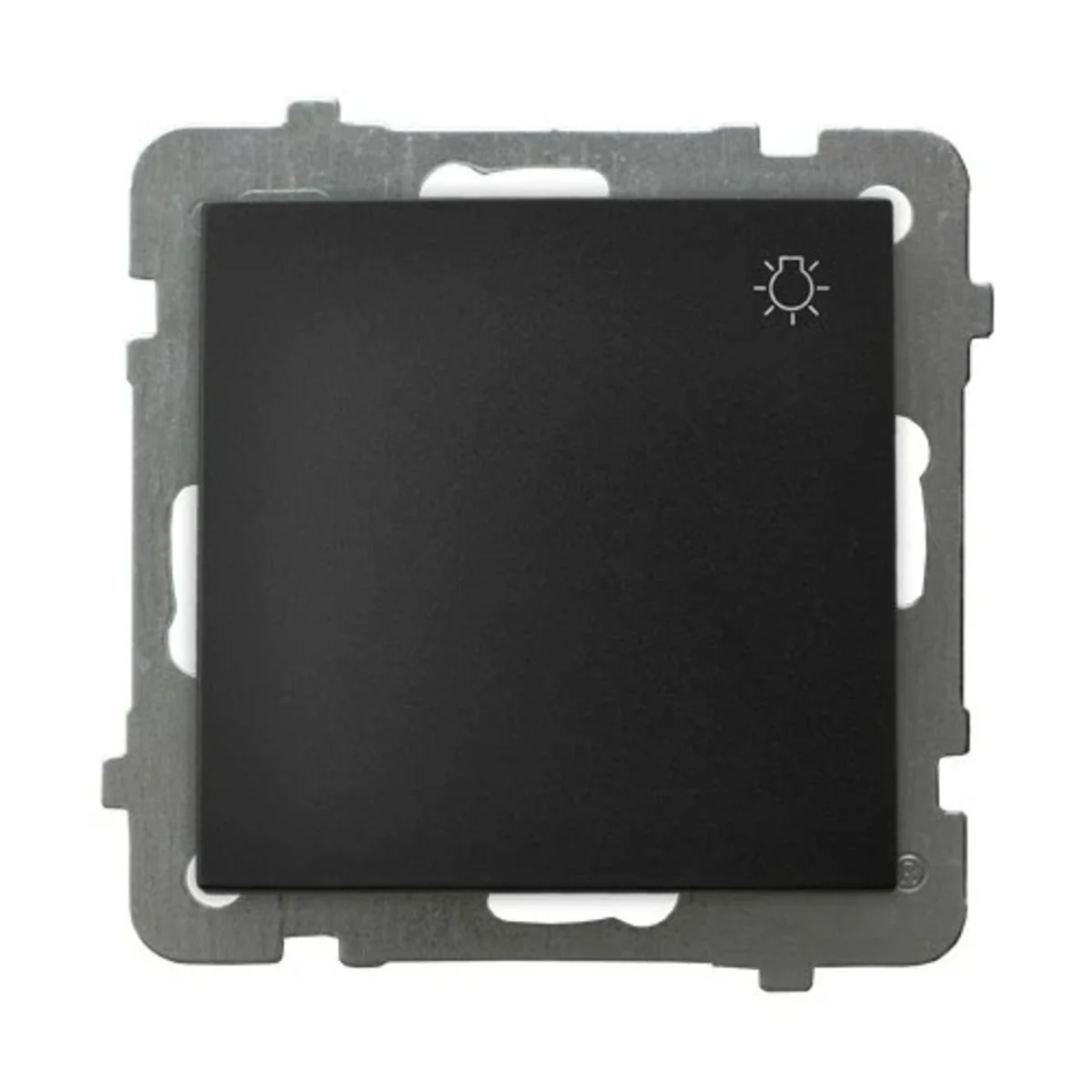

AS "Light" switch, black metallic, without frame ŁP-5G/M/33

Indice locale:
MMZ203OSPE
Numero di catalogo:
ŁP-5G/M/33
Codice EAN:
5906729011431
Produttore: OSPEL
Depth [mm]: 40
Number of keys: 1
Color: Black
Prezzo:
32,26 zł
gross / pezzi
(inclusa IVA 23%)
fino a una settimana
Su ordinazione
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Descrizione del prodotto

Normally open switch "light" from the As series, from the manufacturer Ospel.

FEATURES

  • To be equipped with a frame.
  • The "light" symbol on the key.
  • To obtain the IP44 splash-proof class, use a sealing kit for IP44 switches.

SERIES DESCRIPTION

The As series is a geometric form broken by the delicate curves of the frames. It is a combination of dynamic design and neutral colors that will work in any interior. The highest quality materials and timeless design have allowed us to create a product that will adorn your interior for many years.

As  ...

Dati tecnici

  • Depth [mm]
    40
  • Color
    Black
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    AS
  • Symbol
    Light
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Accurate color
    Black metallic
  • Mounting depth [mm]
    25
  • Variant
    Light
  • Exact material
    Plastic Metal
  • Number of keys
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP20
  • Width [mm]
    71
  • Version
    Confident
  • Surface protection
    varnishing
  • Backlight
    NO
  • Terminal type
    Threaded
  • For the frame system
    Yes

Altri dati tecnici

  • Wiring system
    Normally open contact (NO)
  • Assembly arrangement
    Basic element with complete housing
  • Push button switch
    No
  • Surface finishing
    Matt
  • Device height
    71 mm
  • Built-in depth
    25 mm
  • Method of operation
    Rocker/button
  • Number of modules (module system)
    1
  • Number of rockers
    1
  • Device width
    71 mm
  • Device depth
    40 mm
  • Min. depth of built-in installation box
    60 mm

Dettagli del produttore

  • Produttore
    OSPEL S.A.
  • Indirizzo
    42-436 Wierbka Główna 128 Polska

Imballaggio sfuso

Una specie di pacchetto Pudełko
Quantità 4 pezzi
Larghezza (m) 0,710
Lunghezza (m) 0,710
Profondità (m) 0,250
